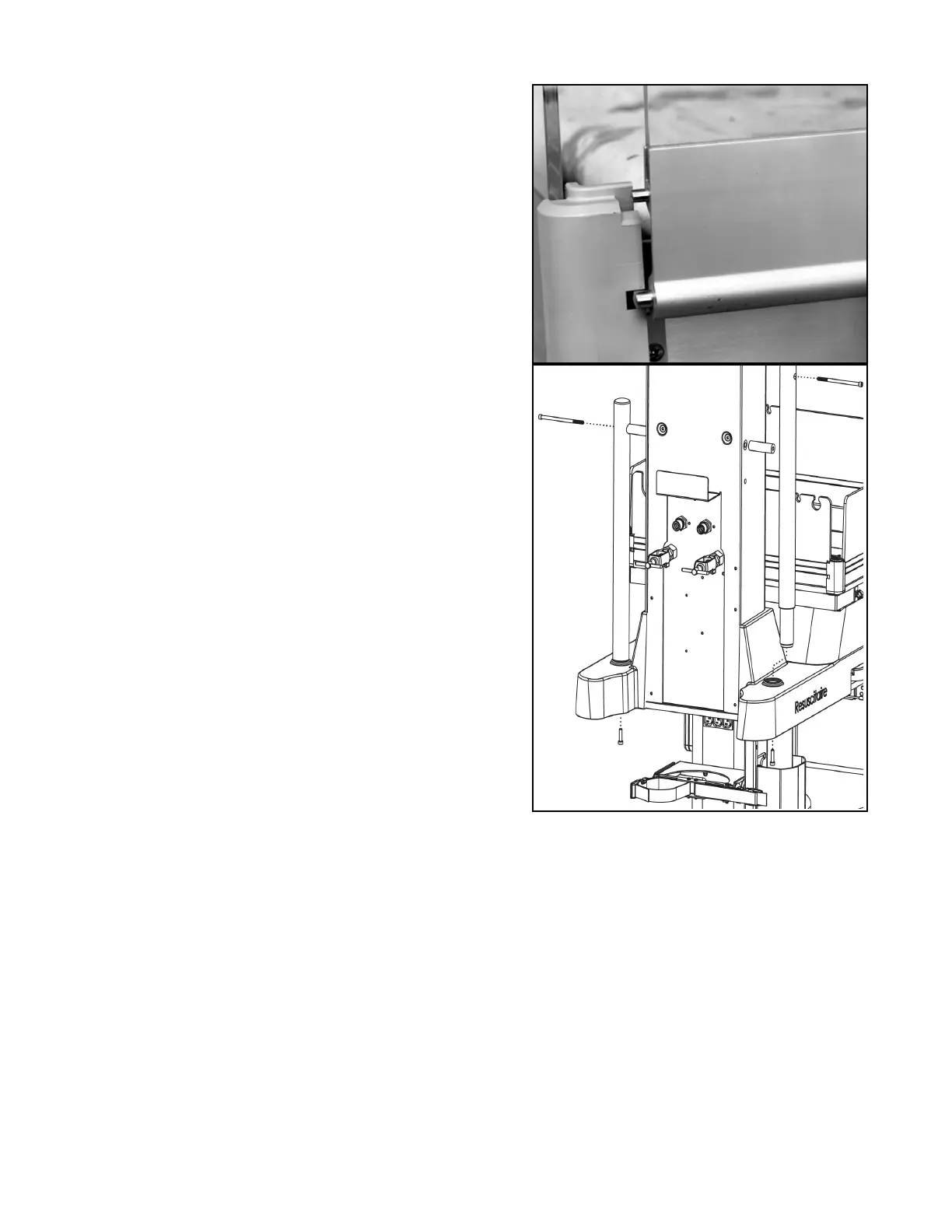

21. Install the front-end panel:
a. Slide the front-end panel (AA) into the front of the
bassinet assembly until its release tabs (BB) catch.
b. Raise the front-end panel to its fully raised
position.
22. Insert the pins of the back-end panel into the corner
brackets (CC) of the bassinet.
23. Slide the side panels (DD) straight down into their
slots on the bassinet.
24. Install the 38-mm poles:
a. Set the 38-mm pole (EE) into the circular opening
on the bassinet/cart assembly.
b. Install the short hex head screw (FF) through the
bottom of the bassinet/cart assembly and into the
38-mm pole.
c. Install the long hex head screw (GG) through the
38-mm pole (EE) and the spacer (HH) into the side
of the upper post.
d. Repeat to install the other 38-mm pole.
25. To ensure proper operation of the Resuscitaire Radiant
Warmer (RW82), perform the “Operational Checkout
Procedure” on page 4-15.
