Blended Gas Supply Control
NOTE:
The Blender Module option changes the Resuscitation Module to add the air pipeline, the cylinder
connections. It also adds an air gauge to the Gas Supply Module. This option is standard with AutoBreath
Resuscitation Modules in the US.

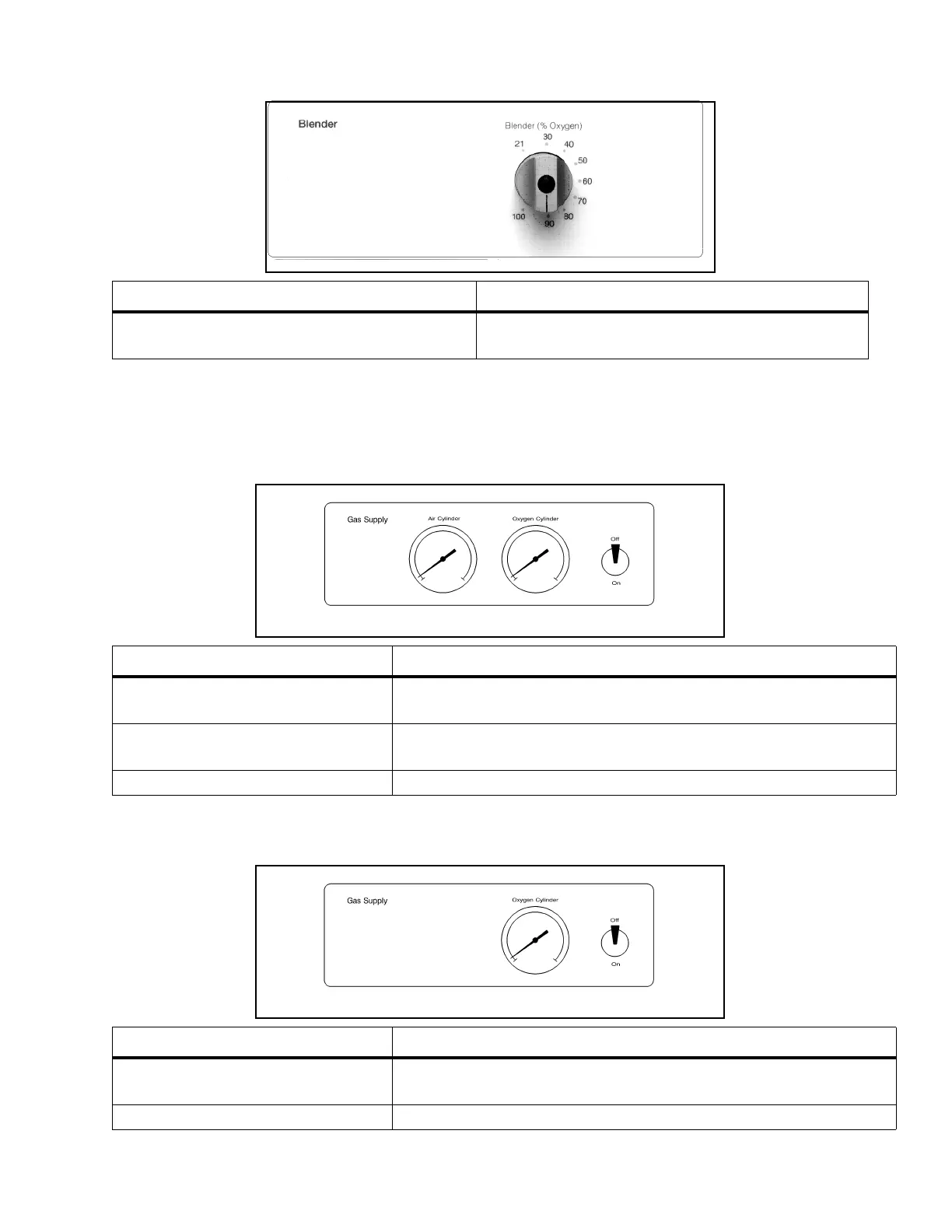

Gas Supply Module with Blender Option Controls and Indicators (Optional)
or
Gas Supply Module Controls and Indicators (Optional)
Name Description
Blender % Oxygen control Blends the air and oxygen mixture from 21% to
100% oxygen to the primary patient outlet.
Name Description
Air cylinder gauge Provides an indication of the Air cylinder supply pressure from
0 kPa (0 psi) to 27 579 kPa (4000 psi).
Oxygen cylinder gauge Provides an indication of the oxygen cylinder supply pressure
from 0 kPa (0 psi) to 27 579 kPa (4000 psi).
Gas supply On/Off switch Activates the gas source and cylinder systems once opened.
Name Description
Oxygen cylinder gauge Provides an indication of the oxygen cylinder supply pressure
from 0 kPa (0 psi) to 27 579 kPa (4000 psi).
Gas supply On/Off switch Activates the gas source and cylinder systems once opened.
