Dräger Resuscitaire WBR82 - Page 97

PROPRIETARY AND CONFIDENTIAL DRAFT 5 Feb 04
5 - 9

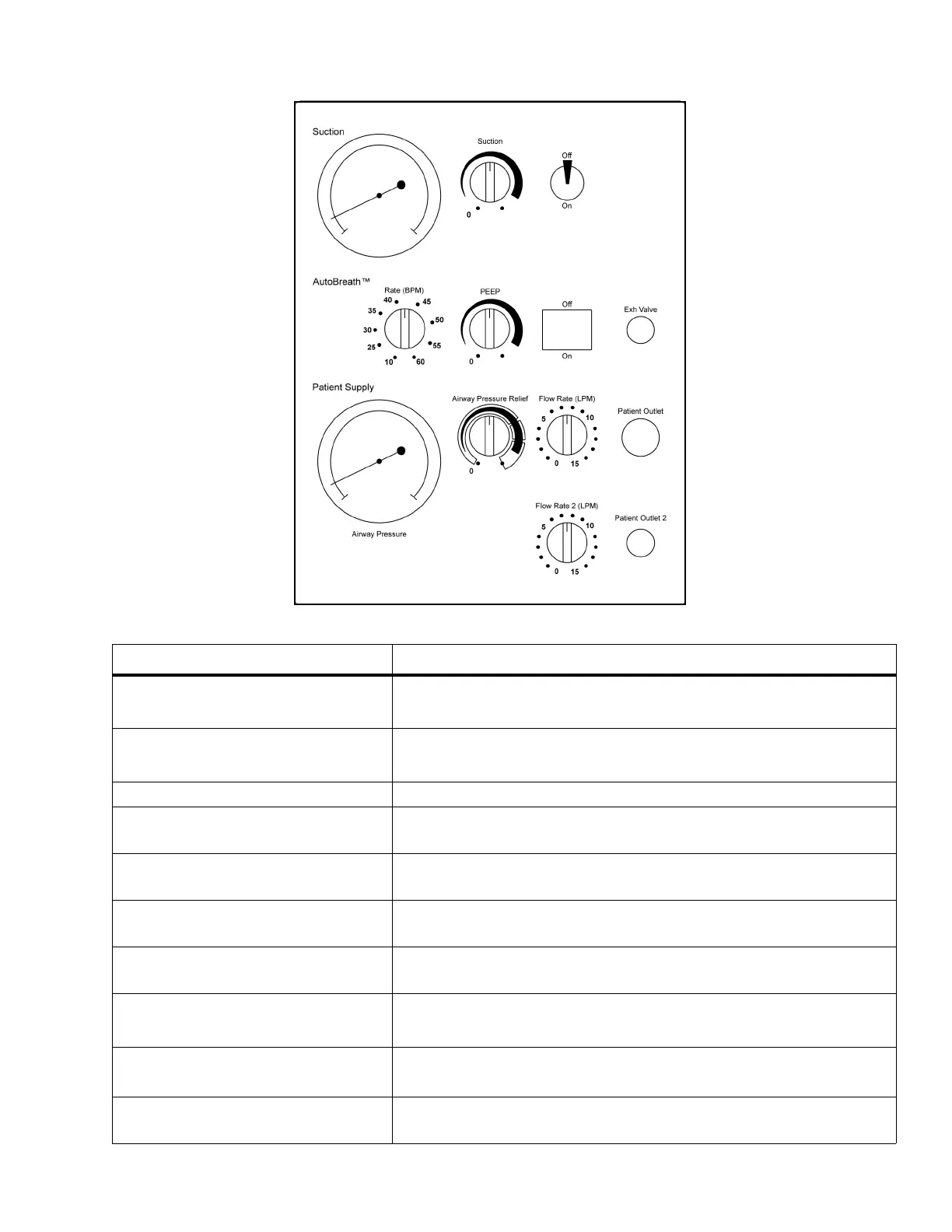

Resuscitation Module with AutoBreath™ Infant Resuscitator Controls, Indicators, and Connectors
Name Description
Suction gauge Displays the suction level from 0 mmHg (0 cmH
2
O/mbar) to
200 mmHg (107 cmH
2
O/mbar) of vacuum.
Suction control Adjusts the suction level from 0 mmHg (0 cmH
2
O/mbar) to
150 mmHg (80 cmH
2
O/mbar).
Suction On/Off switch Turns the suction on and off. (Gas supply must be turned on.)
Rate (BPM) control (AutoBreath™
Infant Resuscitator Option)
Adjusts breath frequency from 18 to 60 breaths per minute.
PEEP control (AutoBreath™
Infant Resuscitator Option)
Adjusts positive end expiratory pressure.
On/Off switch (AutoBreath™
Infant Resuscitator Option)
Turns AutoBreath™ Infant Resuscitator on and off (including
PEEP).
Exhalation valve (AutoBreath™
Infant Resuscitator Option)
Accepts exhaust valve line of patient circuit for expiratory valve
control.
Airway Pressure gauge Displays the airway pressure from -1 kPa (-10 cmH
2
O/mbar) to
8kPa (81cmH
2
O/mbar).
Airway Pressure Relief control Adjusts the airway pressure relief setting from 0 kPa
(0 cmH
2
O/mbar) to 5kPa (51cmH
2
O/mbar).
Flow Rate (LPM) control (flow
meter)
Adjusts the patient gas flow from 0 LPM to 15 LPM.
