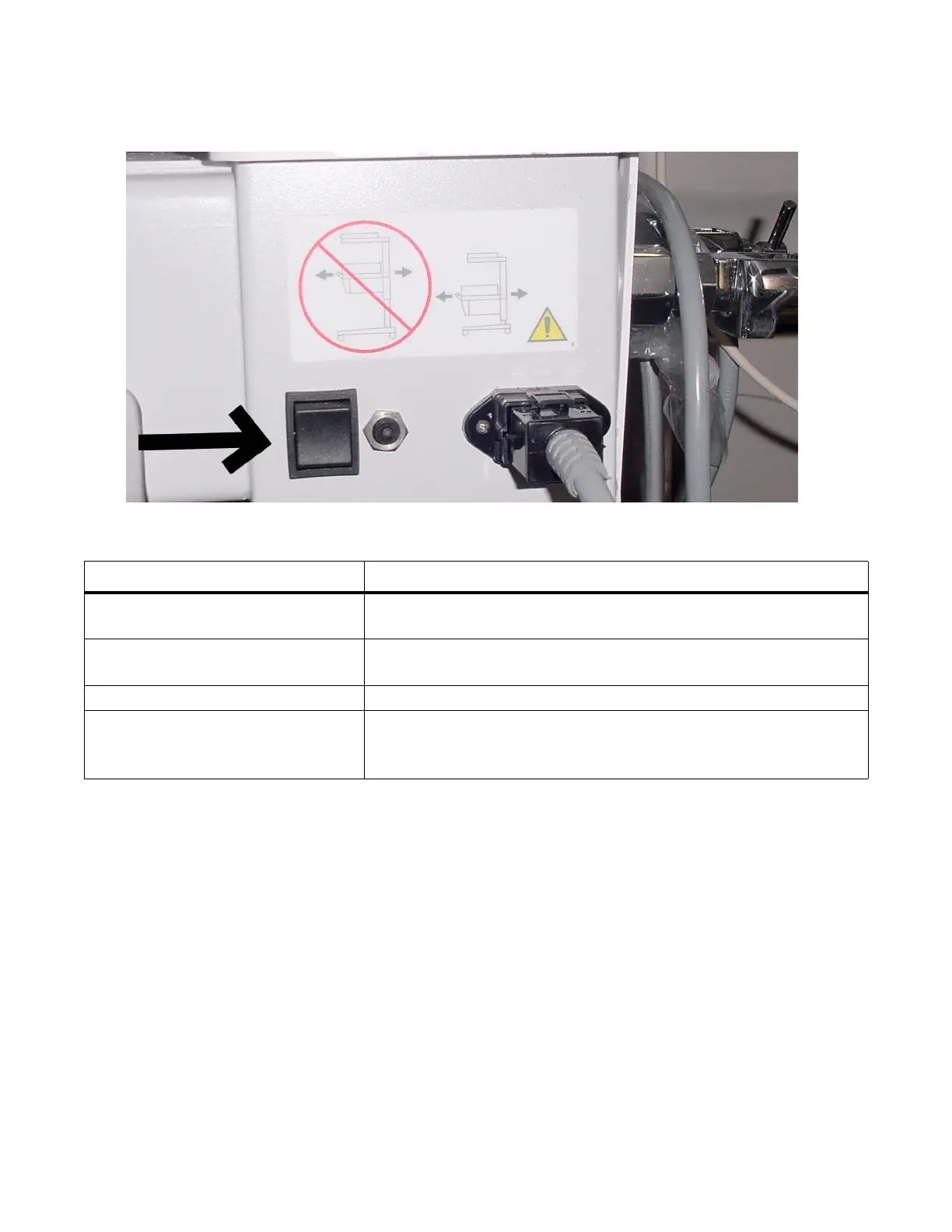

Controls and Power Connections for the VHA Model
Name Description
Circuit breaker Turns the actuator off when the presence of excessive current is
detected. Press to reset the actuator.
Power outlet Accepts the 102 cm (40") AC power cord which connects the
lower post to the controller.
Power inlet Accepts the AC power cord.
VHA height adjust switches
(located on both sides of the
column)
Press top of switch to raise the mattress; press bottom of switch to
lower the mattress.
