Dräger X-zone 5000 User Manual

11

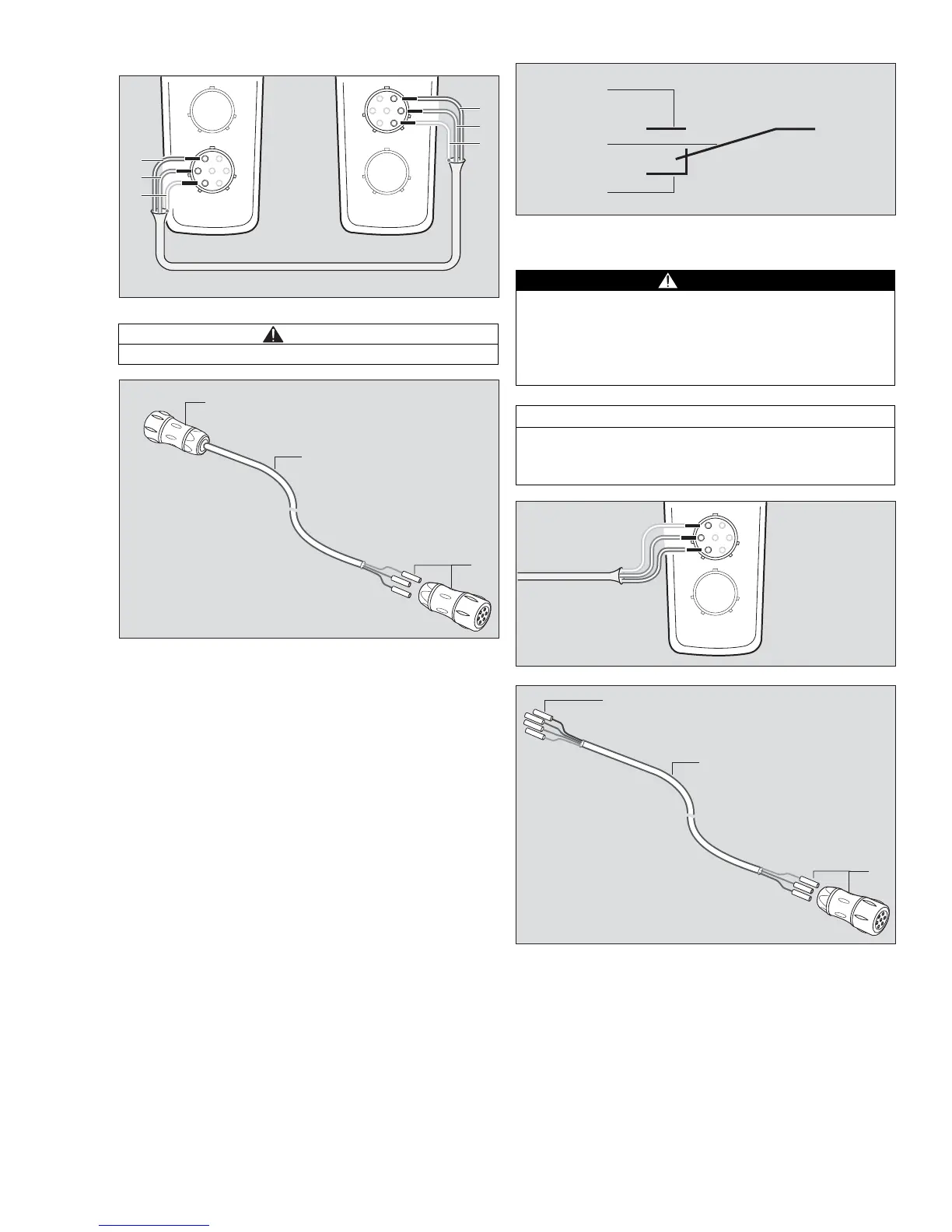

RS485 connection:
1 Plug (male):
Housing: Souriau UTS6JC147P (male)
Contacts: Souriau RM20M12K (male)
2 Plug (female):
Housing: Souriau UTS6JC147S (female)
Contacts: Souriau RC20M12K (female)
3 Cable type: Belden 3107A, 2 x 2 AWG 22
Cable length: max. 25 m between 2 devices
Relay output:
The relay output is intended for connection to an
isolation amplifier with intrinsically safe output.
1 Plug (female):
Housing: Souriau UTS6JC147S (female)
Contacts: Souriau RC20M12K (female)
2 Configure the pin assignment separately depending
on the application
3 Cable type: Belden 3107A, 2 x 2 AWG 22
Cable length: max. 25 m between 2 devices
CAUTION
Ensure that the cable strands are not crossed!
02333112.eps
XEXT1
XEXT2
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
03133112.eps
2
max. 25 m
1
3
WARNING
It is essential that the parameters of the relay outputs
are observed to prevent the circuit from jeopardising
the intrinsic safety of the device.
Only intrinsically safe circuits are permitted for
connection.
NOTICE
The person responsible for the use of the Dräger X-
zone 5000 must prepare a system document to verify
the intrinsic safety level.
03433112.eps
5
6
4
NO
CO
NC
02433112.eps
XEXT2
1
2
3
6
5
4
03233112.eps
1
max. 25 m
2
3
DRAFT 02 - 08/02/10
