Dräger X-zone 5000 User Manual

14

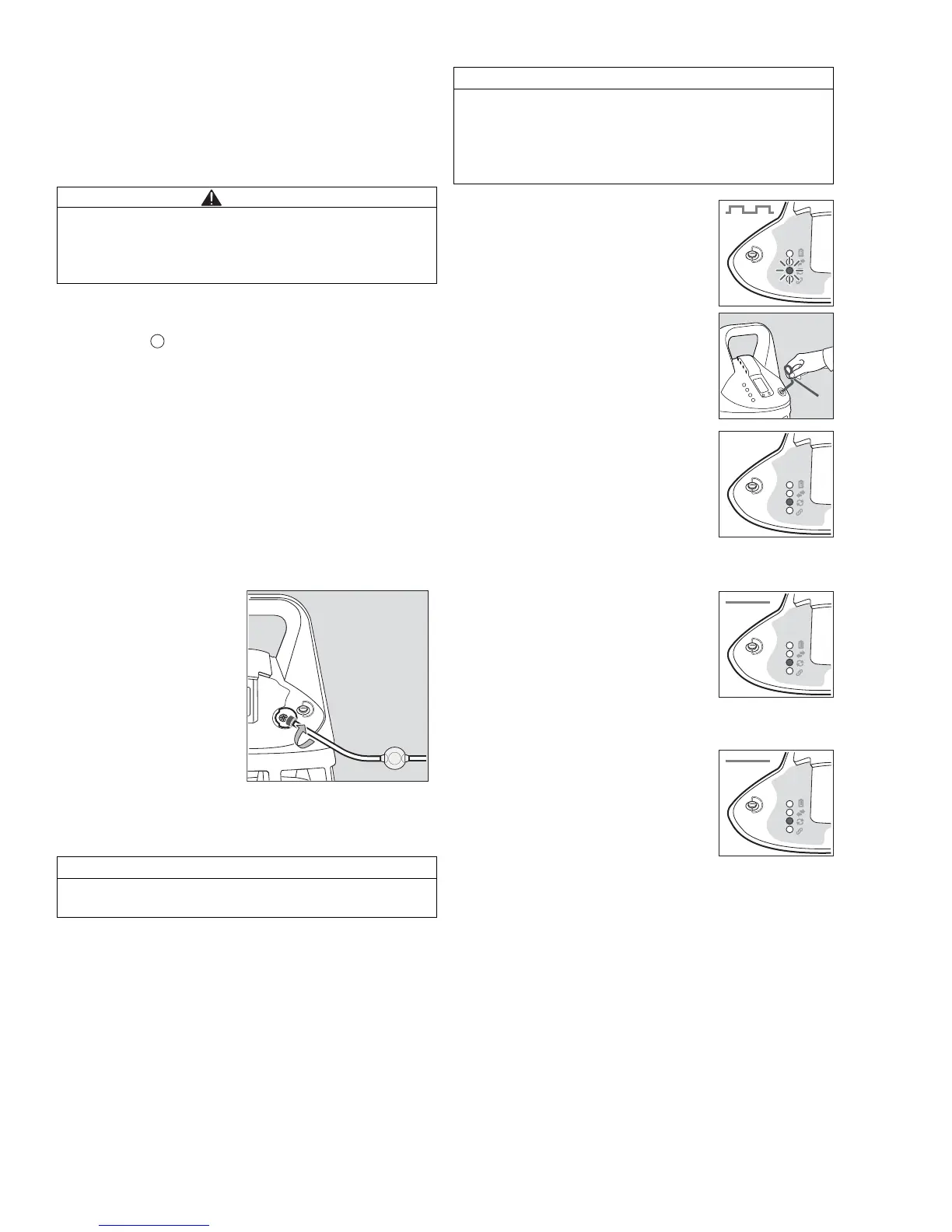

Operation with pump (optional)
The Dräger X-zone 5000 is equipped with a pump as an
option (refer to “Order List” on page 24.)
Commissioning and performing the
measurement
z Release the lock on the holder.
z Remove the holder.
z Press the key of the Dräger X-zone 5000 and
hold it for approx. 3 seconds.
– The Dräger X-zone 5000 is in STANDBY mode.
z Place the Dräger X-am 5x00 into the device
receptacle.
z Place the holder (pump) onto the housing.
z Fasten the lock at the holder (pump).
z Switch on the Dräger X-am 5x00 in accordance with
the instructions for use.
– If the device is in the ON mode, the pump will be
automatically switched on via a switching contact on
the holder (pump).
– Pump LED flashes red/green.
z A pump test will then need to be performed. The
pump test will start automatically.
Pump test
If the test was successful:
If the test was not successful:
Ending operation
z Switch off the Dräger X-am 5x00 in accordance with
the instructions for use.
– The visual and the audible alarm will be activated for
a short time before the device switches off.
– The Dräger X-zone 5000 switches to STANDBY
mode.
z Unscrew the sampling hose or the Dräger probe
from the filter.
z Remove the holder (pump) by releasing the lock.
– The pump switches off.
z Place the holder onto the housing.
z Fasten the lock at the holder.
CAUTION
Pump operation only with filter (order no. 83 19 359)!
Otherwise there is a risk of damage to the pump.
If no filter is used during pump operation, the warranty
on the pump becomes invalid.
z Connect the sampling
hose with the water
trap for the hose set
(order no. 68 05 473)
and screw the
connecting bush onto
the filter in a clockwise
direction.
NOTICE
The pump test must be performed within 60 seconds
otherwise a device alarm is issued.
OK
00633112.eps
NOTICE
Pump test is performed in the same way as for the
Dräger pump
X-am 1/2/5000.
During the pump test, in the default
setting the acoustic alarm is automaticallyreduced to
80 dB (A).
– The pump LED flashes red/green,
accompanied by a signal tone.
z Seal or kink the intake flange or
sampling hose for approx.
2 seconds.
– The pump LED lights red.
– Unblock the intake flange/
sampling hose.
– The pump LED lights green,
accompanied by an acoustic
acknowledgment signal.
– The pump LED lights red,
accompanied by a continuous
tone.
– The pump switches off
automatically.
00733112.eps
02633112.eps
00833112.eps
00933112.eps
01033112.eps
DRAFT 02 - 08/02/10
