Dräger X-zone 5000 - Examples of Use

9
z Position other Dräger X-zone 5000 devices using the
same process.

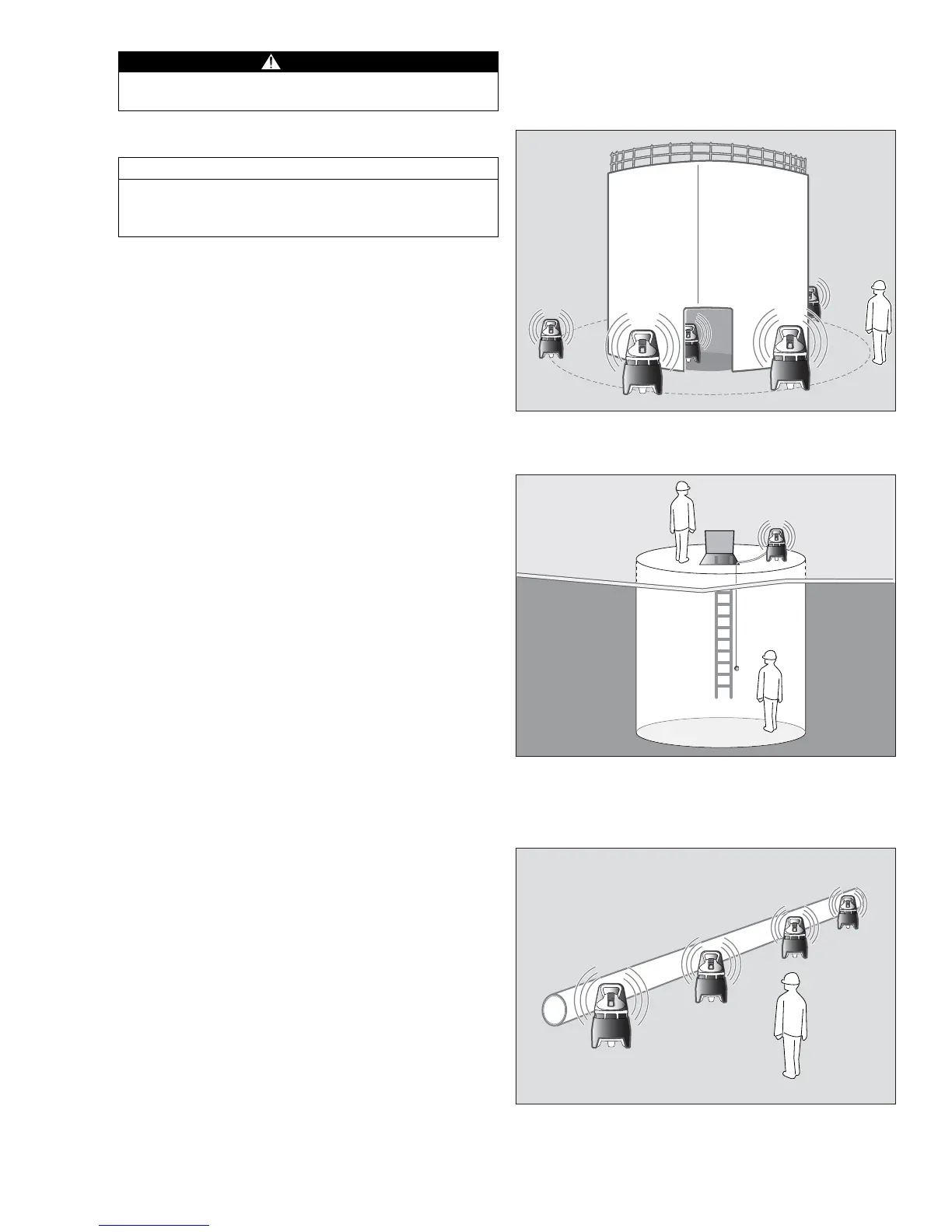

Examples of use:
Setting A:
Monitoring industrial tanks
(Wireless alarm chain)
Setting B:
Area monitoring with pump
Setting C:
Radio monitoring of pipelines
(Wireless alarm chain)
WARNING
If the data transmission LED is lit in red, the distance
from the next device must be reduced.
NOTICE
Dräger recommends performing a function test (refer to
“Perform a connection test” on page 7) after positioning
all the devices.
