Vigor2820 Series User’s Guide
146

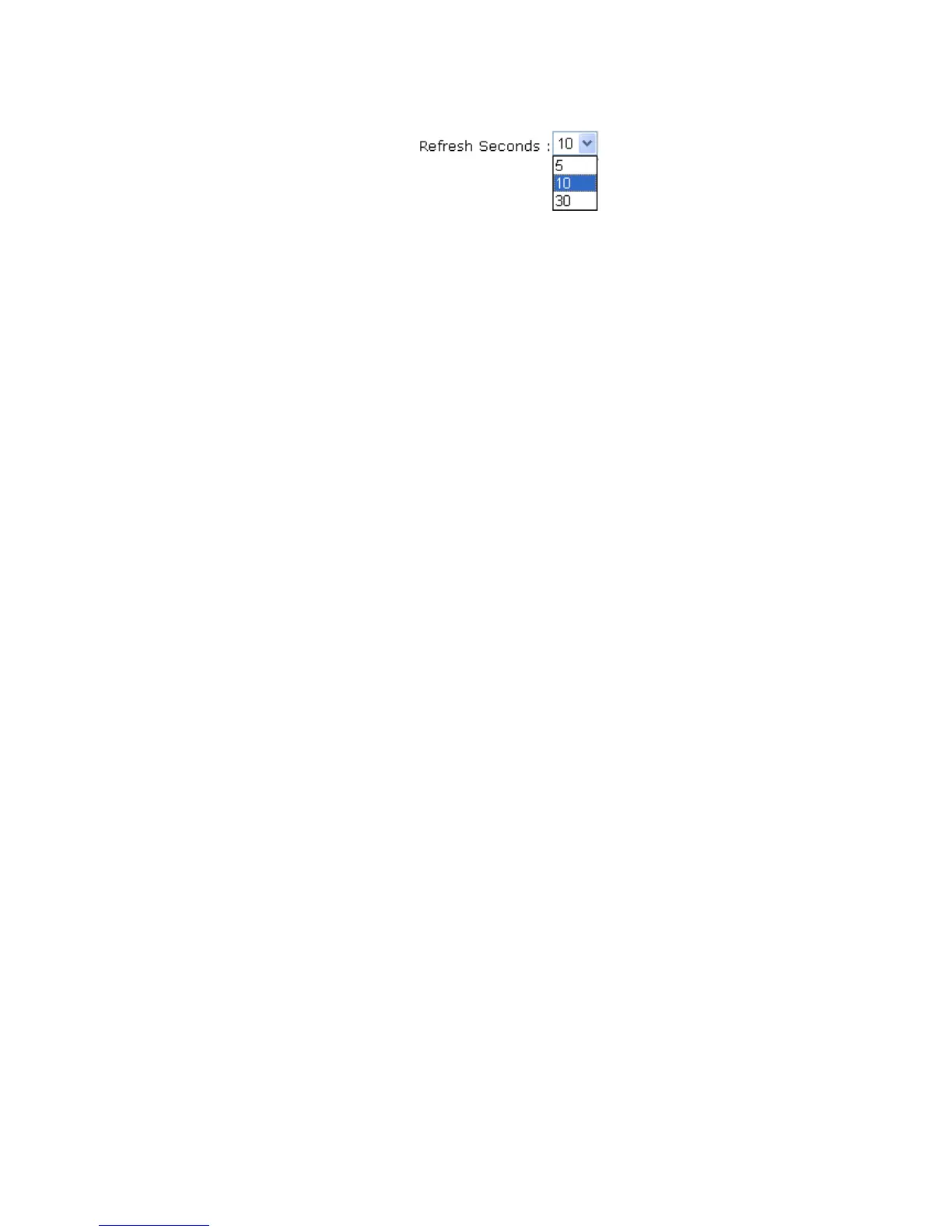

when the Refresh button is clicked.
Port It shows current connection status for the port of Phone1 and
Phone2.
Status It shows the VoIP connection status.
IDLE - Indicates that the VoIP function is idle.
HANG_UP - Indicates that the connection is not established
(busy tone).
CONNECTING - Indicates that the user is calling out.
WAIT_ANS - Indicates that a connection is launched and
waiting for remote user’s answer.
ALERTING - Indicates that a call is coming.
ACTIVE-Indicates that the VoIP connection is launched.
Codec Indicates the voice codec employed by present channel.
PeerID The present in-call or out-call peer ID (the format may be IP
or Domain).
Elapse The format is represented as hours:minutes:seconds.
Tx Pkts Total number of transmitted voice packets during this
connection session.
Rx Pkts Total number of received voice packets during this connection
session.
Rx Losts Total number of lost packets during this connection session.
Rx Jitter The jitter of received voice packets.
In Calls Accumulation for the times of in call.
Out Calls Accumulation for the times of out call.
Miss Calls Accumulation for the times of missing call.
Speaker Gain The volume of present call.
Log Display logs of VoIP calls.
3
3
.
.
1
1
1
1
W
W
i
i
r
r
e
e
l
l
e
e
s
s
s
s
L
L
A
A
N
N
This function is used for “n” models only.
3
3
.
.
1
1
1
1
.
.
1
1
B
B
a
a
s
s
i
i
c
c
C
C
o
o
n
n
c
c
e
e
p
p
t
t
s
s
Over recent years, the market for wireless communications has enjoyed tremendous growth.
Wireless technology now reaches or is capable of reaching virtually every location on the
surface of the earth. Hundreds of millions of people exchange information every day via
wireless communication products. The Vigor “n” model, a.k.a. Vigor wireless router, is
designed for maximum flexibility and efficiency of a small office/home. Any authorized
staff can bring a built-in WLAN client PDA or notebook into a meeting room for conference
without laying a clot of LAN cable or drilling holes everywhere. Wireless LAN enables high
mobility so WLAN users can simultaneously access all LAN facilities just like on a wired
LAN as well as Internet access.
