4. After finishing the above configuration, the equipment connecting to VigorSwitch Port
15, 16, 17 and 18 can get the corresponding IP address(es) of the network segment.
The equipment connecting to VigorSwitch Port 15 can get the IP address of
192.168.1.0/24
The equipment connecting to VigorSwitch Port 16 can get the IP address of
192.168.3.0/24
The equipment connecting to VigorSwitch Port 17 can get the IP address of
192.168.5.0/24
The equipment connecting to VigorSwitch Port 18 can get the IP address of
192.168.7.0/24

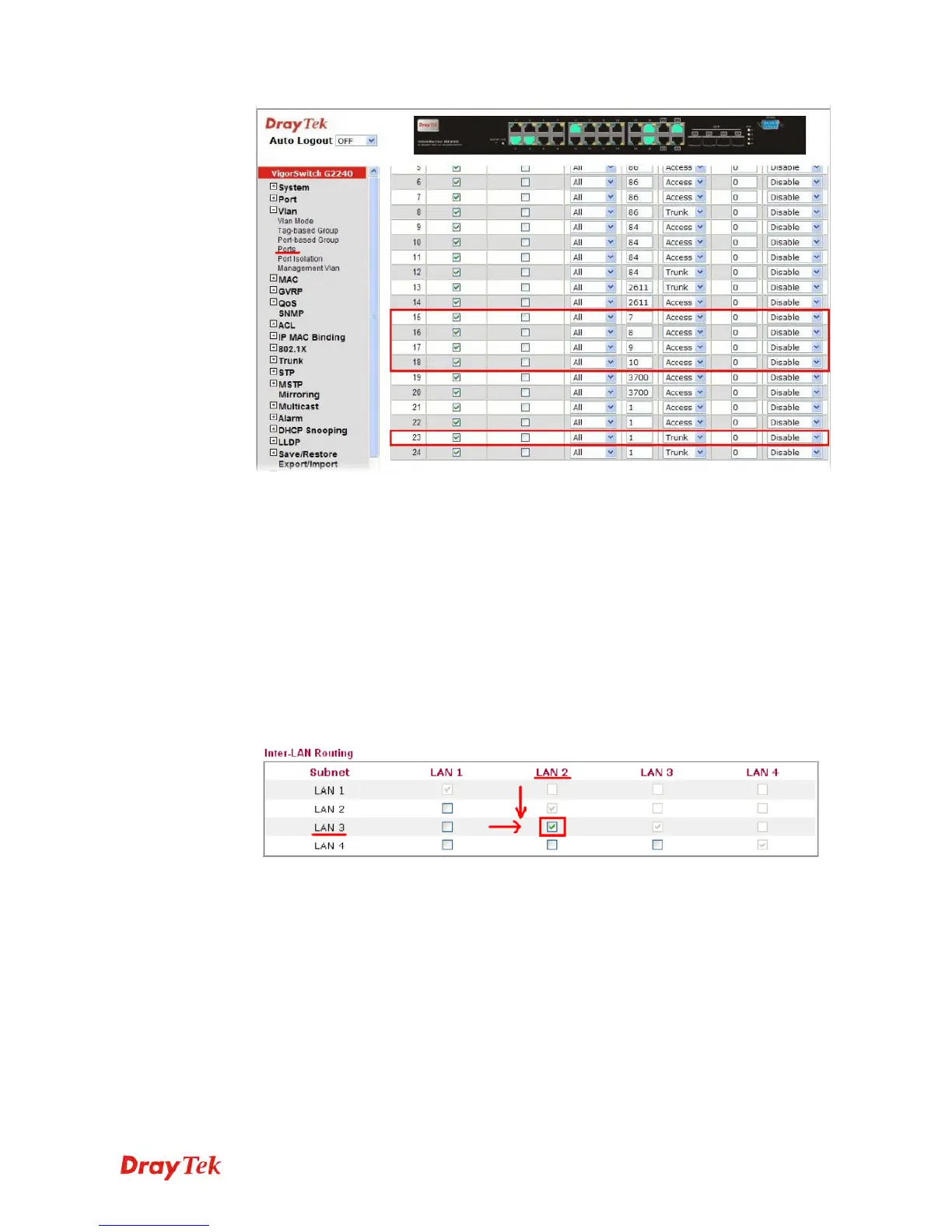

5. To make any two of VLAN groups of Tag Based VLAN linked with each other, just
check the boxes of the ones in the field of Inter-LAN Routing in the page of LAN >>
General Setup. Refer to the following figure. LAN2 and LAN3 are linked.
