COOLING SYSTEM SECTION 6
Page 3
DRESSTA TD-25M EXTRA

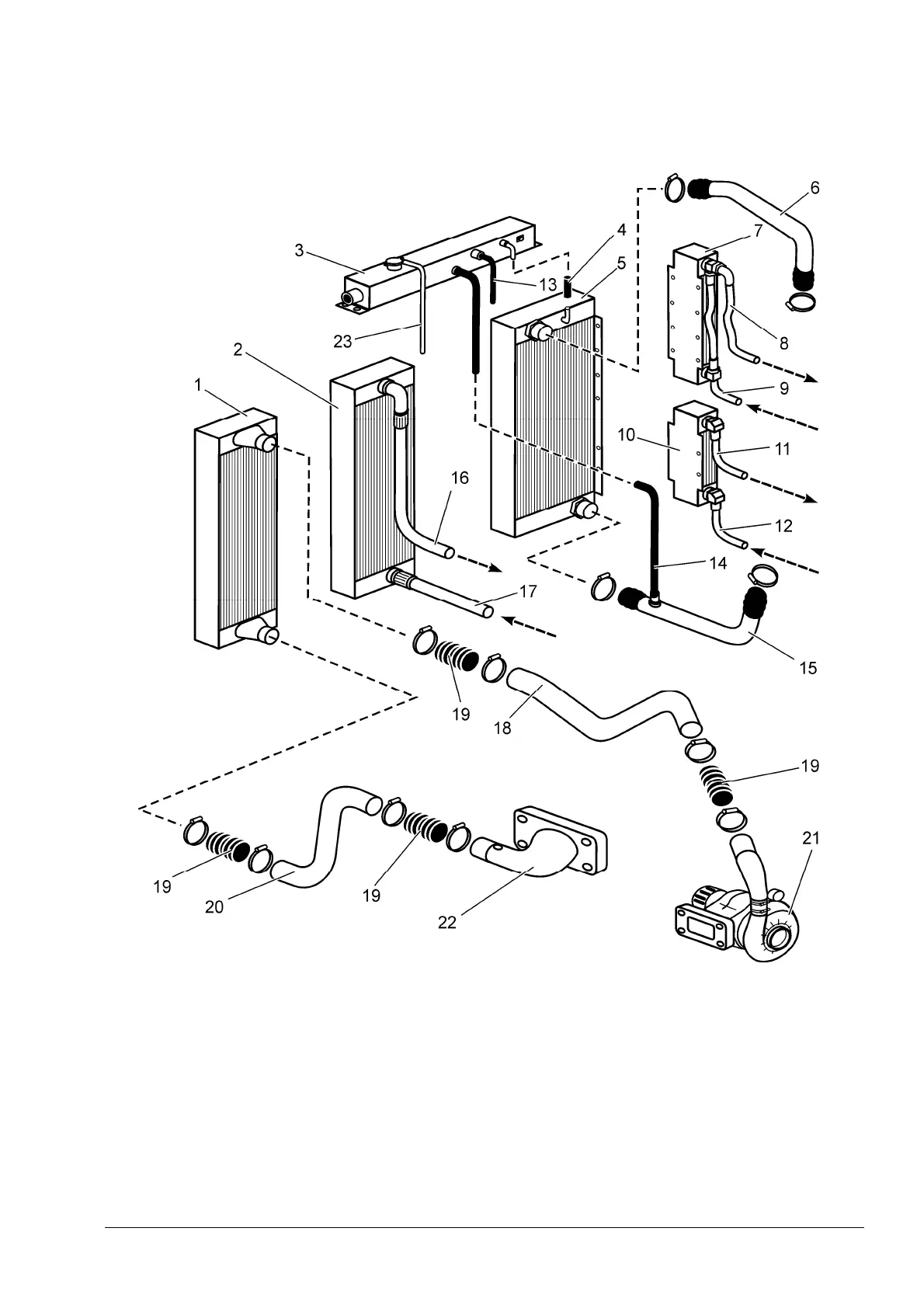

Fig. 6.1. Modular Cooling Systems Connections
1. Charge Air Cooler (CAC)
2. Drive Train Oil Cooler
3. Auxiliary Tank
4. Radiator Core Vent Hose
5. Radiator Core
6. Coolant Inlet Tube
7. Hydraulic Motor Oil Cooler
8. Oil Outlet Hose
9. Oil Inlet Hose
10. Fuel Cooler
11. Fuel Outlet Hose
12. Fuel Inlet Hose
13. Engine Vent Hose
14. Cooling System Fill Hose
15. Coolant Outlet Tube
16. Oil Outlet Hose
17. Oil Inlet Hose
18. Air Inlet Tube
19. Hump Hose with Clamps
20. Air Outlet Tube
21. Turbocharger
22. Engine Intake Connection
23. Overflow Hose
