SECTION 7B HYDRAULIC TORQUE CONVERTER
Page 10
TD-25M EXTRA DRESSTA
TORQUE CONVERTER
7. DISASSEMBLY

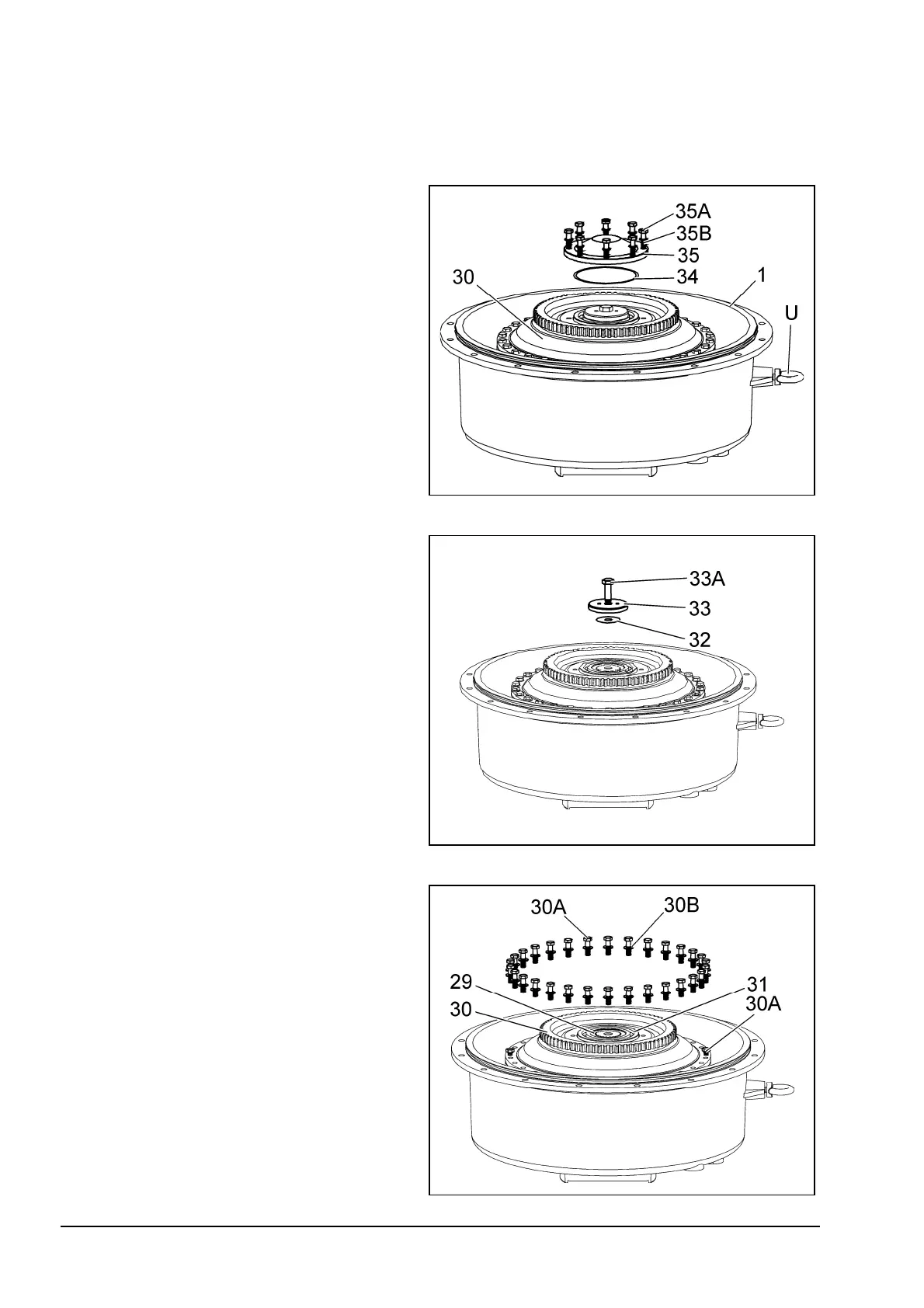

1. Screw eyebolt (U) into converter housing
(1). Torque the eyebolt to 22 ÷ 27 [Nm].
Place the torque converter on a bench so
the drive housing (30) is up. Remove bolts
(35A) with washers (35B). Remove
housing cover (35) with shims pack (34).
Keep the shims (34) with the cover (35)
for further reuse.
2. Remove bolt (33A), then remove thrust
washer (33) and shims (32). Keep shims
(32) with washer (33) for further reuse.
3. Mark the impeller (12) position in relation
to drive housing (30) to keep the position
of rotational parts after reassembly.
Remove bolts (30A) with washers (30B)
securing housing (30) to impeller (12).
Screw two bolts (30A) into two threaded
holes facing each other in the housing
flange. Screw the bolts in a regular way
until the housing (30) clears the impeller
flange. Remove the housing (30) with
bearing (31) and turbine assy (29).
