DRESSTA TD-25M EXTRA - Removal

MOUNTED EQUIPMENT SECTION 17
Page 13
DRESSTA TD-25M EXTRA
BULLGRADER BLADE
10. REMOVAL

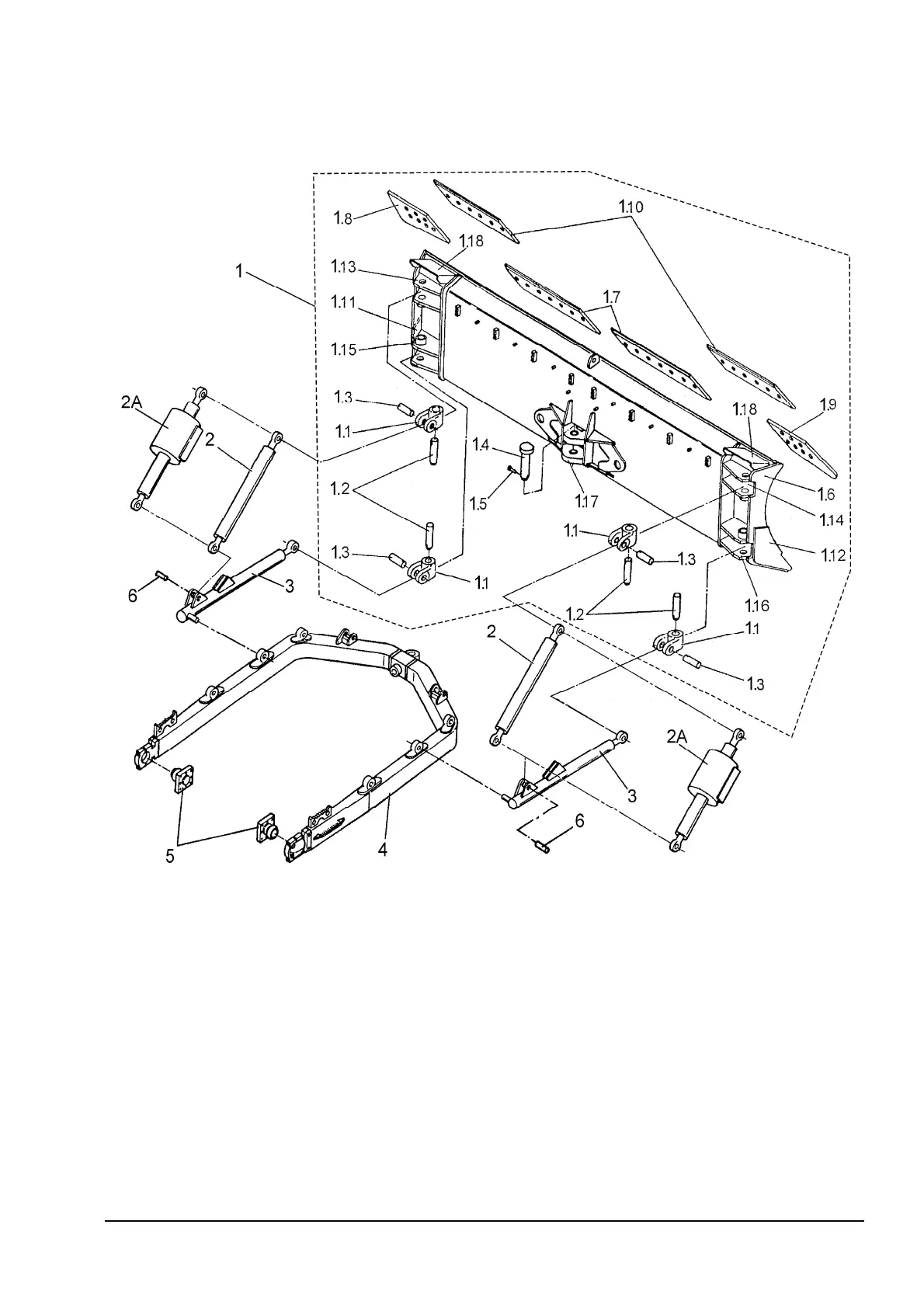

Fig. 17.9. Exploded View of Bullgrader Blade and “C” Frame
1. Blade Assy
1.1. Swivel Bar
1.2. Swivel Bar Pins
1.3. Mounting Pin
1.4. Center Pin
1.5. Mounting Pin
1.6. Bullgrader Blade
1.7. Center Cutting Edges
1.8. L.H. Cutting Edge End Bit
1.9. R.H. Cutting Edge End Bit
1.10. Cutting Edges
1.11. L.H. Side Plate
1.12. R.H. Side Plate
1.13. L.H. Upper Strut Bracket
1.14. R.H. Upper Strut Bracket
1.15. L.H. Lower Strut Bracket
1.16. R.H. Lower Strut Bracket
1.17. “C” Frame Bracket
1.18. Guard
“C” Frame Assy
2. Upper Strut
2A. Blade Tilt Cylinder
3. Lower Left & Right Strut Assy
4. “C” Frame Assy
5. Frame Trunnion Assys
6. Lower Strut Pin
