DRESSTA TD-25M EXTRA - Description; General; Service;Special Tools

DRIVE TRAIN SECTION 7
Page 1
DRESSTA TD-25M EXTRA
SERVICE /SPECIAL TOOLS
1. SERVICE /SPECIAL TOOLS
DESCRIPTION TOOL NUMBER
Digital Optical Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3377462
Test Pressure Gauges Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 910-50-0005
GENERAL
2. DESCRIPTION

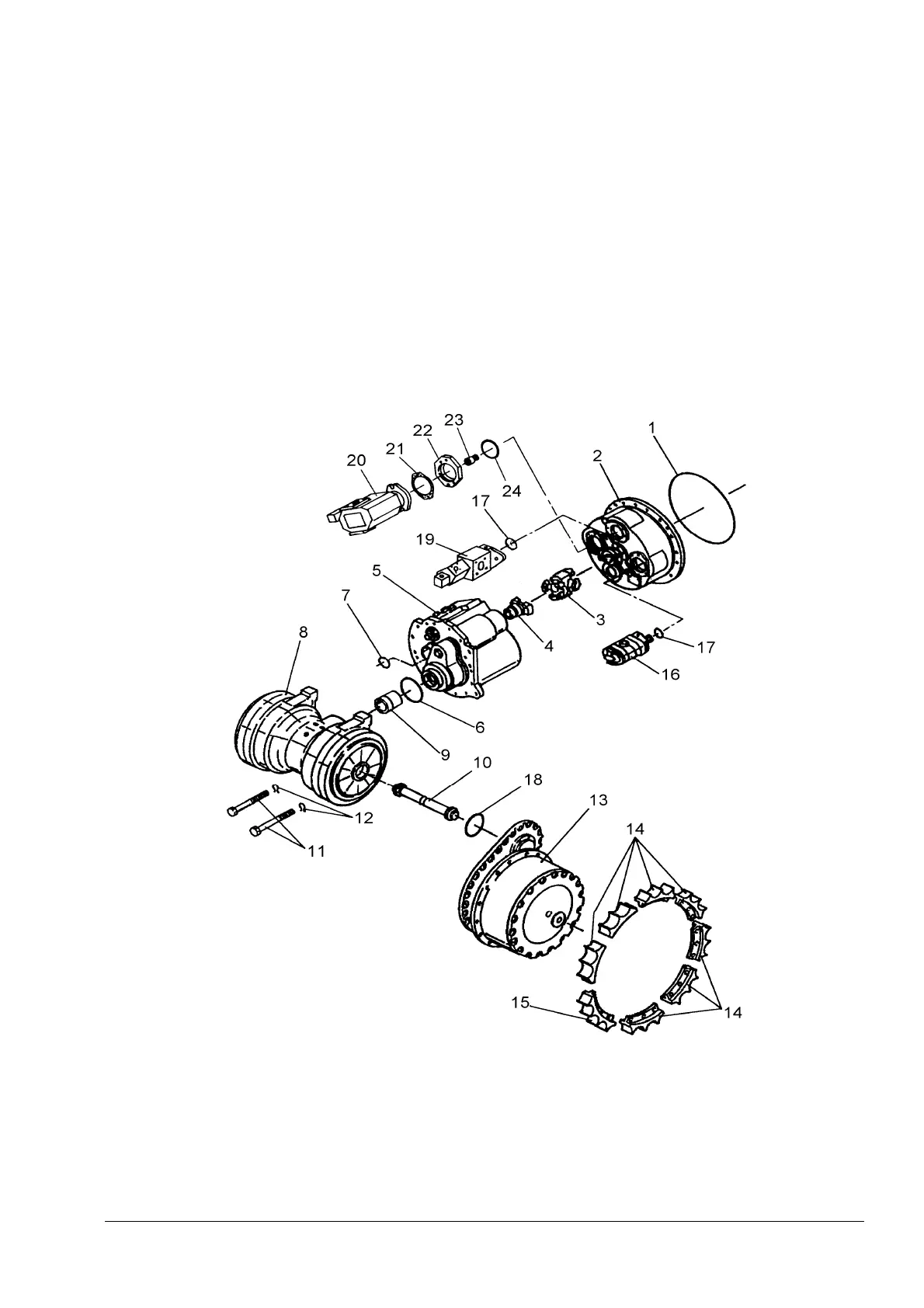

Fig. 7.1. Drive Line
1. O-Ring
2. Torque Converter
3. Drive Shaft
4. Transmission Input
Yoke
5. Transmission
6. O-Ring
7. O-Ring
8. Steering Drive
9. Drive Pinion Sleeve
10. Steering Drive Output
Shaft
11. Bolt
12. Retaining Ring
13. Final Drive
14. Sprocket Drive Segment
15. Sprocket Drive Segment
16. Charge and Scavenge
Pump
17. O-Ring
18. O-Ring
19. Equipment Pump
20. Fan Drive Pump
21. Gasket
22. Connector Plate
23. Connector
24. O-Ring
