SECTION 13 SUPERSTRUCTURE
Page 6
TD-25M EXTRA DRESSTA
11. Remove the A/C heater compartment cover. Disconnect air conditioner hoses (10, Fig. 13.6),
Disassembly mounting hardware (9), turn and carefully lower conditioner (8) down. Do not
remove the hoses of the air conditioner (evaporator). Removing the hoses causes gas escape
out the A/C system.
12. Disconnect ground (-) cable from the battery. Remove master switch (3) with cables.
13. Disassemble bolt and plate (1) covering the platform mounting bolts. Remove platform
mounting bolts (4, Fig. 13.8) and plate (3). Attach the hoist and lift pod. Make a visual
inspection around the pod to be sure that all disconnects required for pod removal have been
made.
14. Raise the pod enough to separate the frame. Place the platform on suitable support
stand.
15. Protect the air conditioner assy (8) against damage.
16. Disassemble bolt and nut (7, Fig. 13.8), rubber shock absorber (1) and plate (2) if necessary.
5. INSPECTION

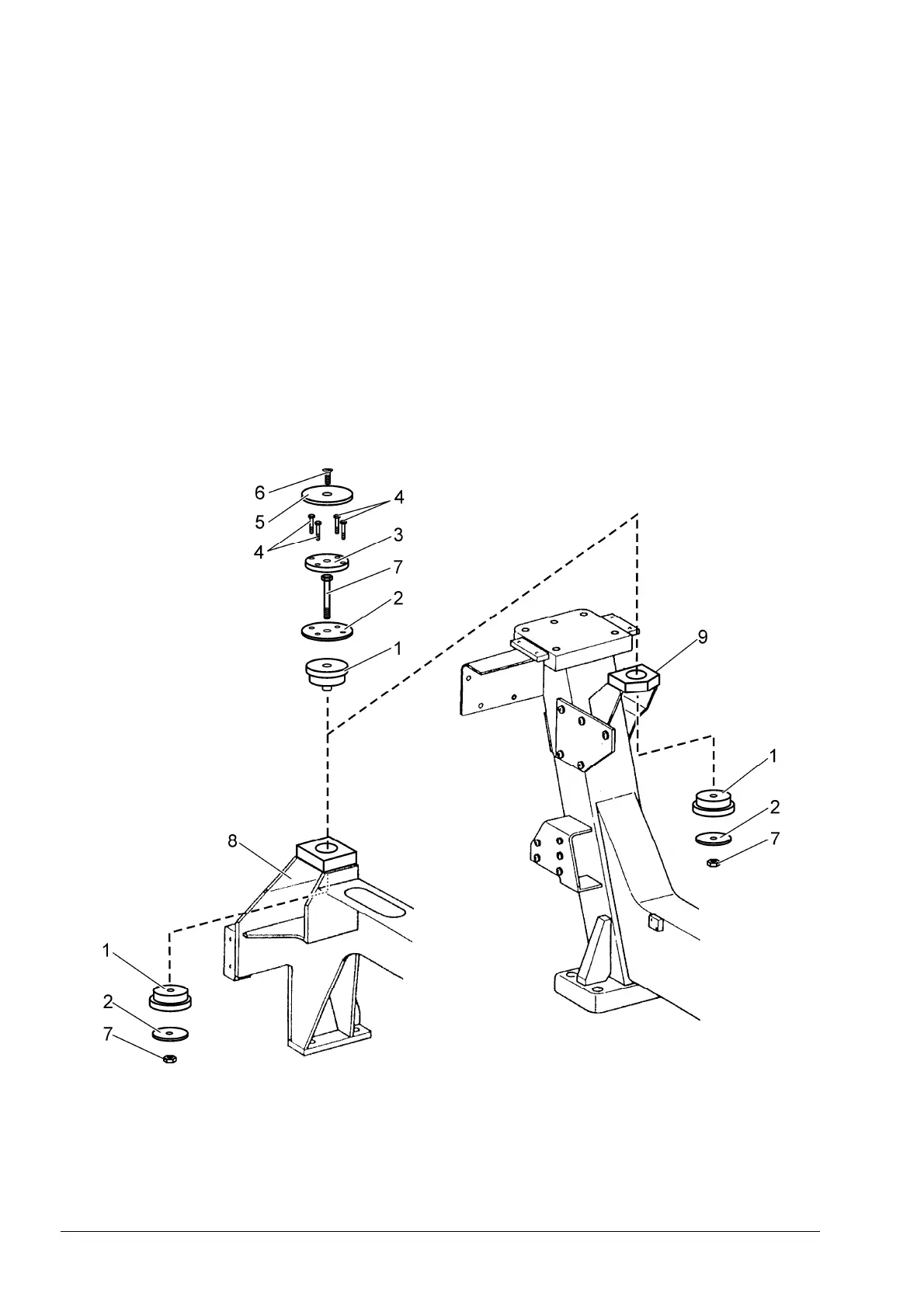

Fig. 13.8. Front and Rear Support of Platform
1. Rubber Shock Absorber
2. Plate
3. Plate
4. Bolts
5. Cover Plate
6. Bolt
7. Bolt and Nut
8. Front Bracket
9. Rear Bracket
