DRESSTA TD-25M EXTRA - Draft Frame; Tool Beam

MOUNTED EQUIPMENT SECTION 17
Page 23
DRESSTA TD-25M EXTRA
SINGLE SHANK RIPPER
18. REMOVAL (Refer to Fig. 17.15)

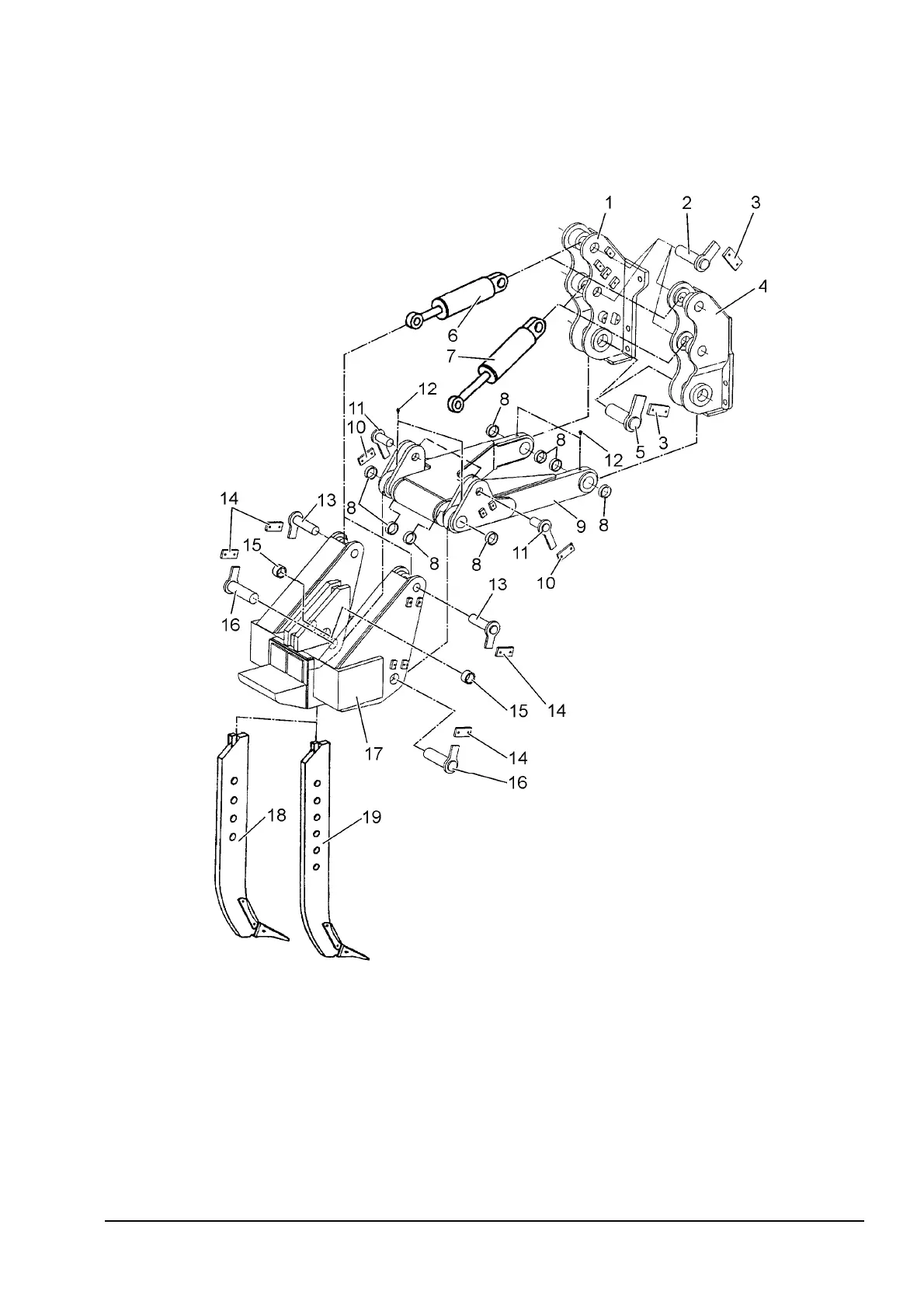

Fig. 17.15. Single Shank Ripper
1. Left Mounting Frame
2. Cylinder Pin
3. Stop Plate
4. Right Mounting Frame
5. Draft Frame Pin
6. Ripper Pitch Cylinder
7. Ripper Lift Cylinder
8. Bushing
9. Draft Frame
10. Stop Plate
11. Cylinder Pin
12. Lube Fitting
13. Cylinder Pin
14. Stop Plate
15. Ripper Shank Pin Bushing
16. Draft Frame Pin
17. Tool Beam
18. Ripper Shank Assy (STD)
19. Ripper Shank Assy (DEEP DIG)
