HYDRAULIC TORQUE CONVERTER SECTION 7B
Page 9
DRESSTA TD-25M EXTRA
TORQUE CONVERTER

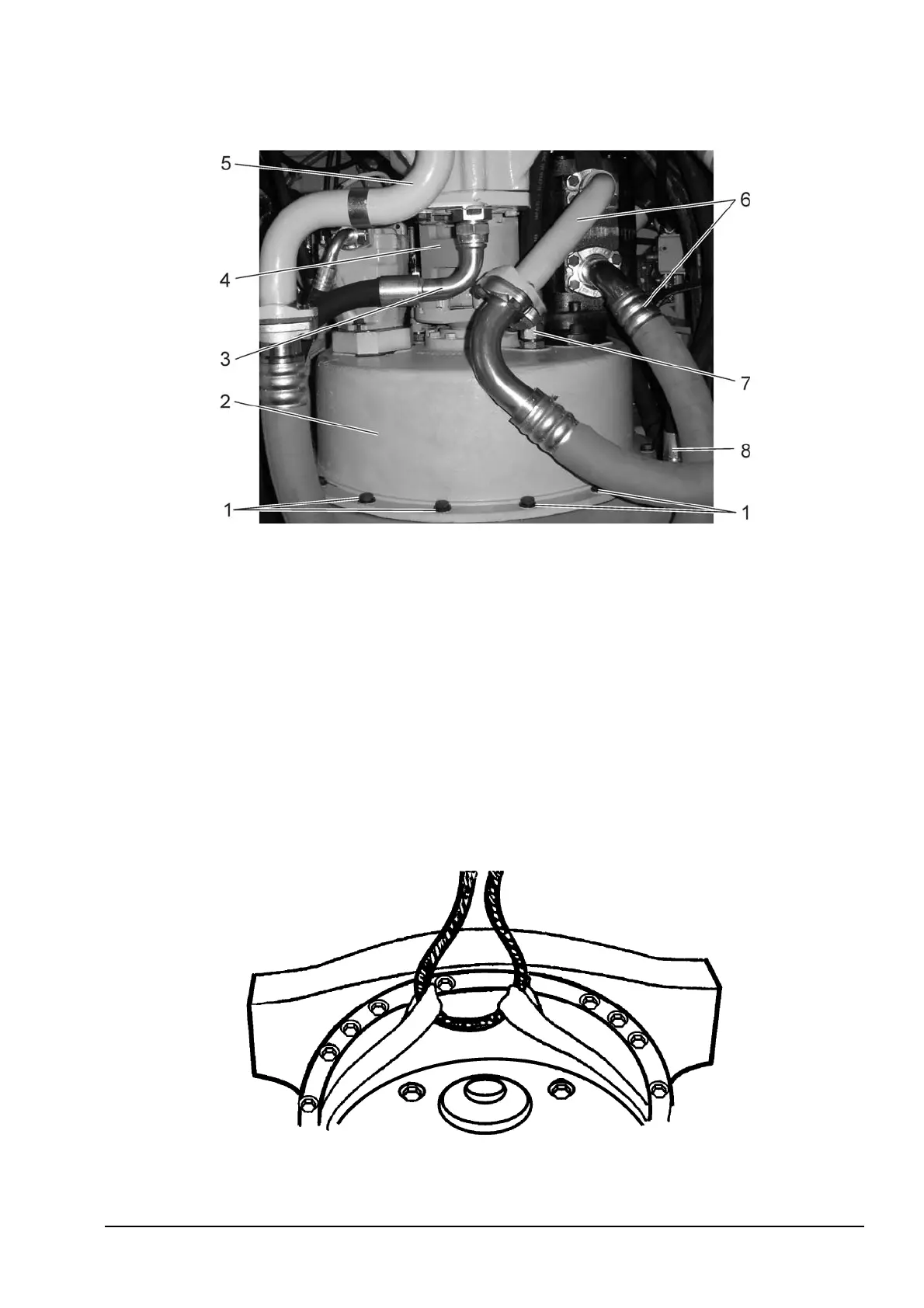

Fig. 7B.5. Lower Torque Converter Disconnecting Points
1. Mounting Bolts
2. Torque Converter
3. Transmission Lube Inlet Hose
4. Universal Joint
5. Scavenge Suction Tube
6. Charge and Scavenge Pump Outlet Hoses
7. Torque Converter Supply Hose
8. Torque Converter Drain Hose
13. Remove two bolts (1) securing converter housing to flywheel housing at 2 and 10 o’clock
positions and replace with aligning studs 1/2″ - 13 of 100 to 130 [mm] in length. Remove
remaining bolts. Fasten the hoist to lift the torque converter (Fig. 7B.6). While lifting the torque
converter pry it and displace backwards by about 130 [mm], so that its weight (170 [kG]) be
transferred to the hoist and let the torque converter clear of the flywheel housing and aligning
studs. Take up the torque converter.
NOTE: Cover the opening at the flywheel housing to prevent dirt and dust from entering.
14. Remove the O-ring from the converter housing flange.
Fig. 7B.6. Removing Torque Converter
