HYDRAULIC TORQUE CONVERTER SECTION 7B
Page 11
DRESSTA TD-25M EXTRA
TORQUE CONVERTER

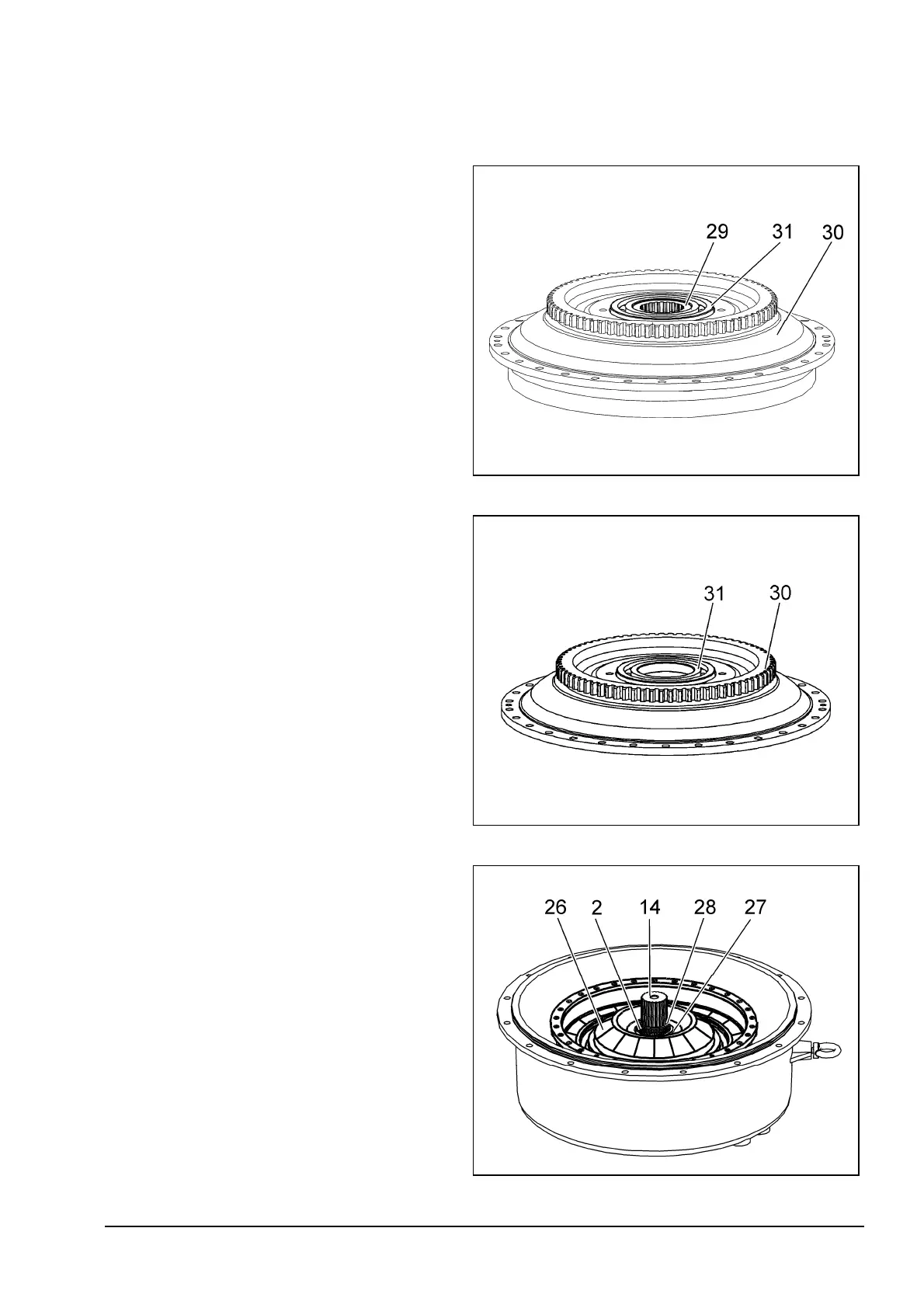

4. Drive turbine assy (29) out the bearing
(31) using 60 to 79 [mm] dia. driver.
5. Press bearing (31) out of drive housing
(30) using 122 to 127 [mm] dia. driver
supporting it against the bearing (31) outer
race.
6. Remove the retaining ring (28) from the
output shaft (14) and retaining ring (27)
from ground sleeve hub (2). Remove stator
(26) from ground sleeve hub (2).
