SECTION 7B HYDRAULIC TORQUE CONVERTER
Page 12
TD-25M EXTRA DRESSTA
TORQUE CONVERTER

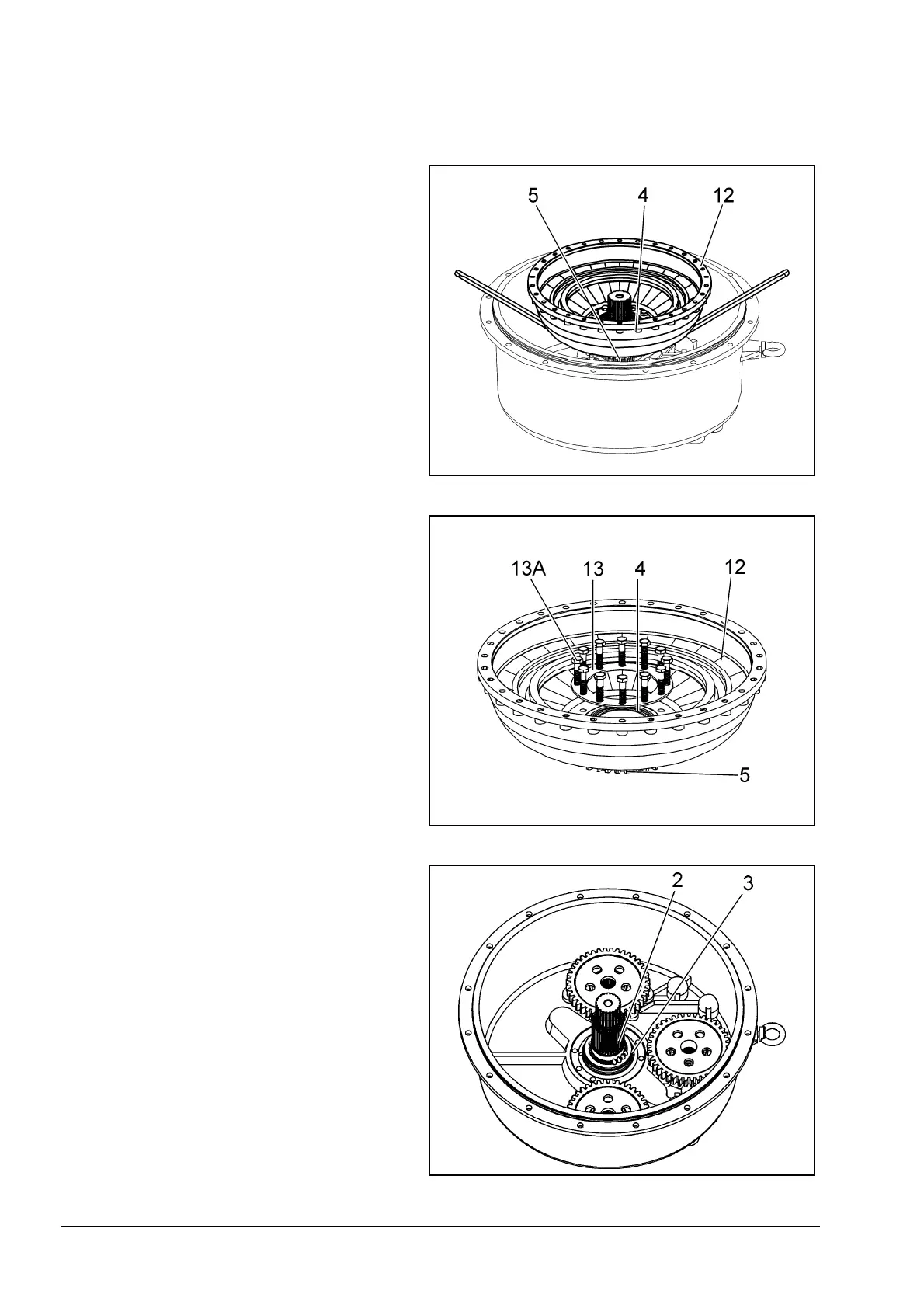

7. Remove impeller (12) with bearing (4) and
drive gear (5) using two levers.
8. Remove bolts (13A) securing impeller (12)
to the drive gear (5). Remove thrust
washer (13). Tap the drive gear (5)
and bearing (4) out of the impeller (12).
Press bearing (4) out of drive gear (5)
using 114 [mm] dia. driver supporting it
against the bearing (4) outer race.
9. Remove seal ring (3) from ground sleeve
hub (2).
