DRESSTA TD-25M EXTRA - Page 429

CYLINDERS SECTION 10C
Page 13
DRESSTA TD-25M EXTRA
BLADE TILT AND PITCH CYLINDER
12. DISASSEMBLY (Refer to Fig.’s 10C.20 and 10C.21)

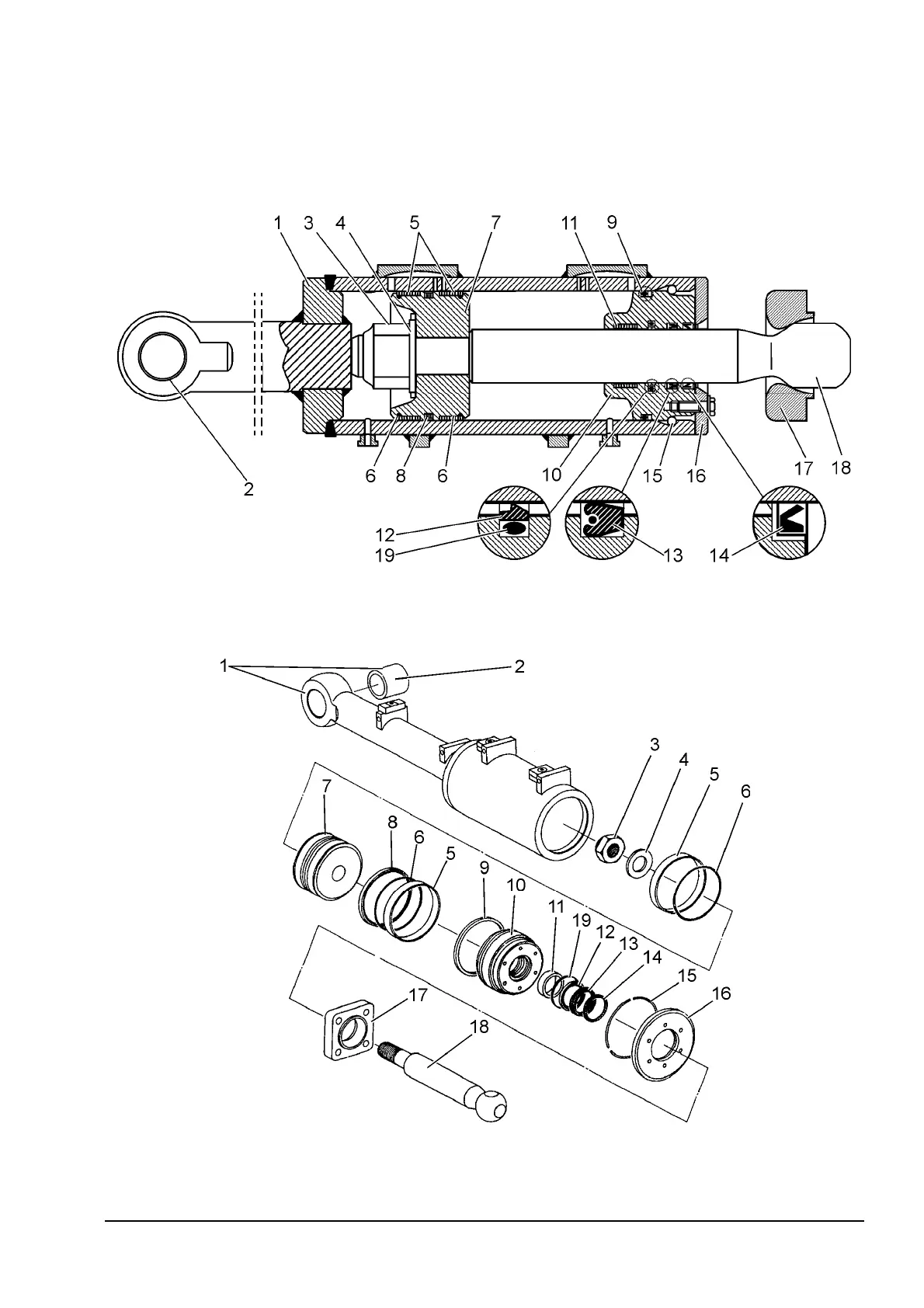

Fig. 10C.20. Cross Section View of Blade Tilt/Pitch Cylinder
Fig. 10C.21. Exploded View of Blade Tilt/Pitch Cylinder
