DRIVE TRAIN
SECTION 7
Page 7
DRESSTA TD-25M EXTRA
HYDRAULIC OIL FLOW

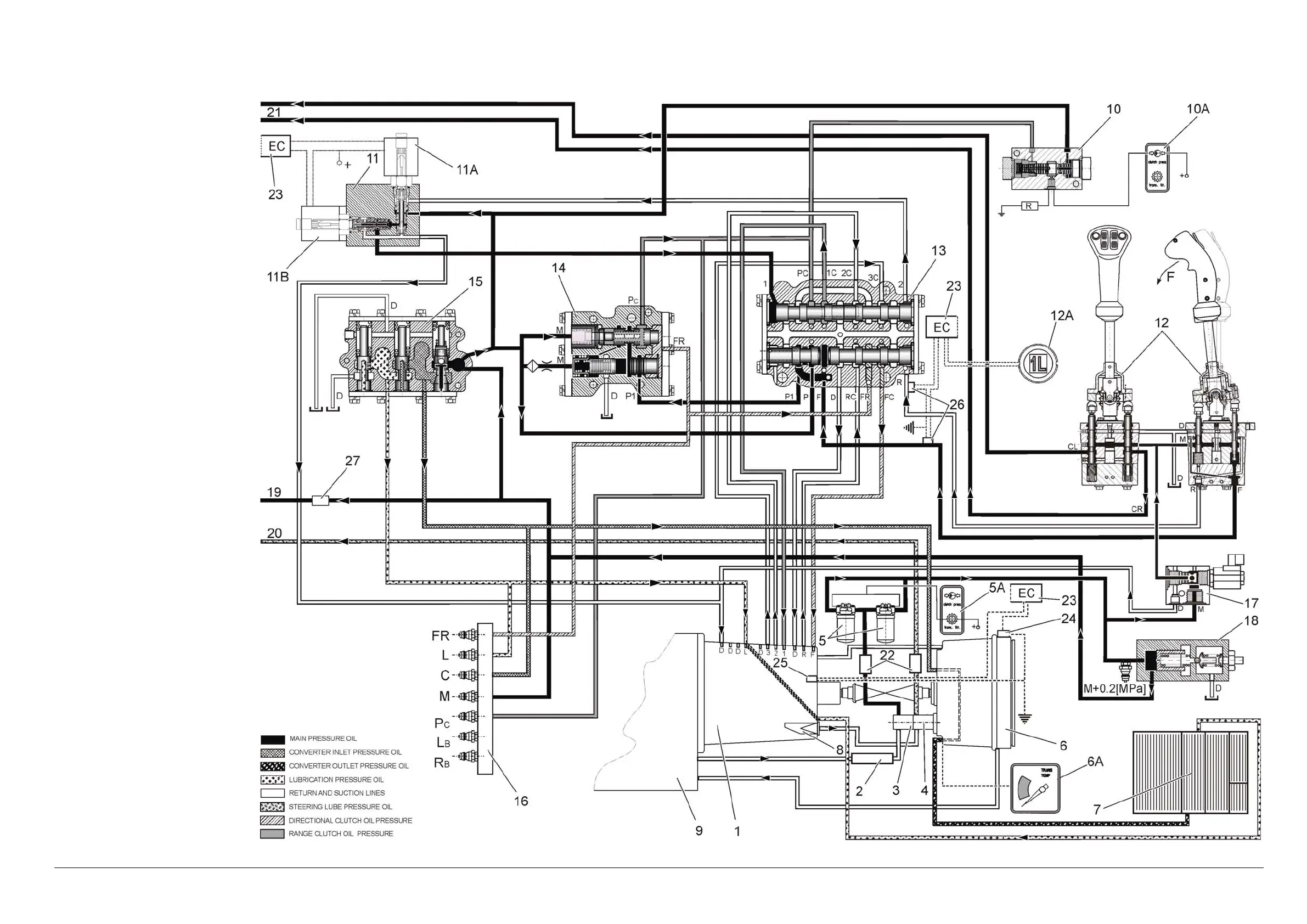

Fig. 7.2. Drive Train Hydraulic Oil Flow with Trans First Forward - TWO SPEED STEERING DRIVE
