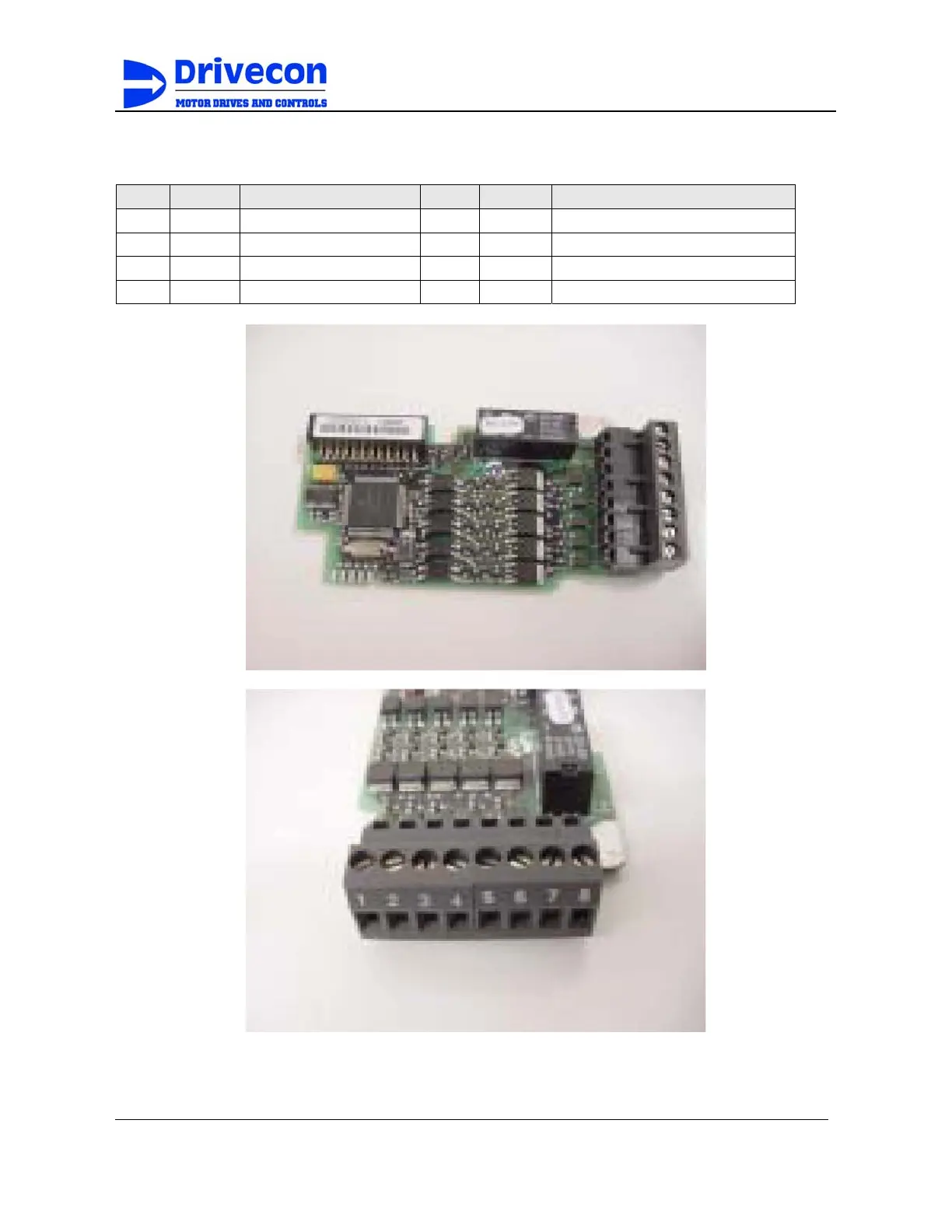

NXOPTB9
this card plugs into slot D. Standard.
No. Name Description, signal level No. Name Description, signal level
1 DID1 Multi Function Input 5 DID5 Multi Function Input
2 DID2 Multi Function Input 6 COM Neutral of external control voltage OK
3 DID3 Multi Function Input 7 ROD1 NO contact of ROD1
4 DID4 Multi Function Input 8 ROD1 C contact of ROD1
