English–PACE Calibration Manual | 7

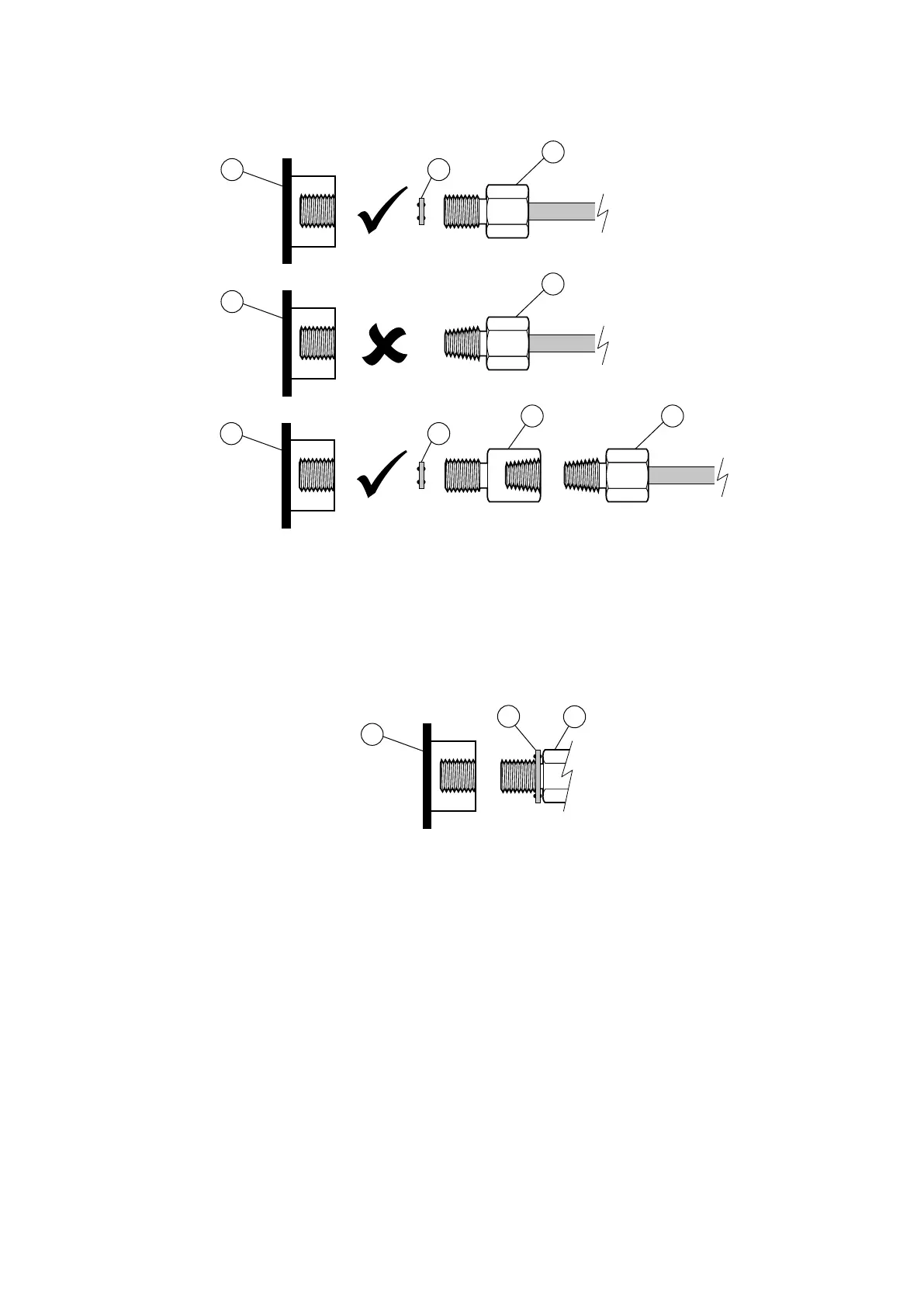

Refer to Figure 4 for connection to the PACE pressure connectors.
Figure 4: PACE Pressure Connection
For pressures less than 100 bar (1450 psi), see alternative sealing method in Figure 5.
Figure 5: Alternative Sealing Method for < 100 bar (1450 psi)
1 PACE pressure connector. 2 Bonded seal.
3 ISO228/1 G1/8 pressure
co
nnector.
4 NPT thread pressure connector.
5 Pressure adapter, see
Section 5.1.1.
1 PACE pressure connector.
2 Bonded seal.
3 ISO228/1 G1/8 pressure connector or
a
d
apter. For adapters, see Section 5.1.1.
3
