English–PACE Calibration Manual | 5

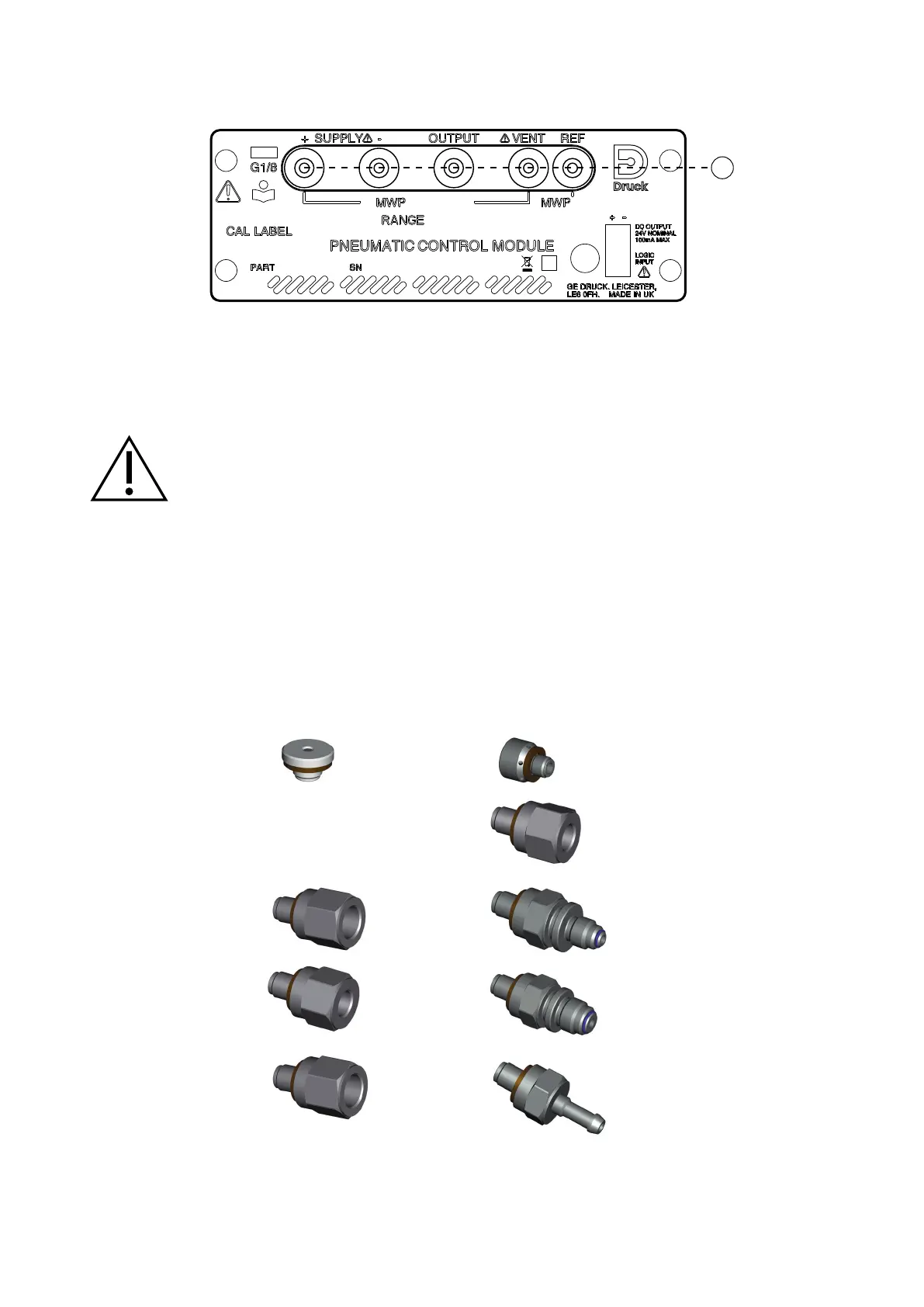

Figure 2: PACE Control Module Reference Level
Set the PACE units of pressure to one of the necessary units for calibration.
5.1 Pressure Connection Overview
5.1.1 Pressure Adapters
Figure 3 shows the available range of PACE pressure adapters
Figure 3: Pressure Adapters
1 Reference Level
WARNING Turn off the source pressure(s) and carefully open the pressure
lines to atmosphere before disconnecting or connecting the pressure lines.
Proceed with care.
Only use equipment with the correct pressure rating.
Before applying pressure, examine all fittings and equipment for damage.
Replace all fittings and equipment that have damage. Do not use any fittings and
equipment that have damage.
Do not apply more than the maximum working pressure of the instrument.
This equipment is not rated for oxygen use.
IO-SNUBBER-1
IO-DIFFUSER-1
IO-ADAPT-G1/4
IO-ADAPT-1/8NPT
IO-ADAPT-1/4NPT
IO-ADAPT-7/16UNF
IO-ADAPT-AN4
IO-ADAPT-AN6
IO-ADAPT-BARB
IO-ADAPT-G1/8
