10 | PACE Calibration Manual–English
5.6 PACE Indicator Connection for Barometric Sensor Calibration
This connection also applies to PACE1000 units with IRS3 sensors and the PACE Tallis units
fitted with a barometer.
1. Connect the output of the pressure calibration standard to the PACE reference port.

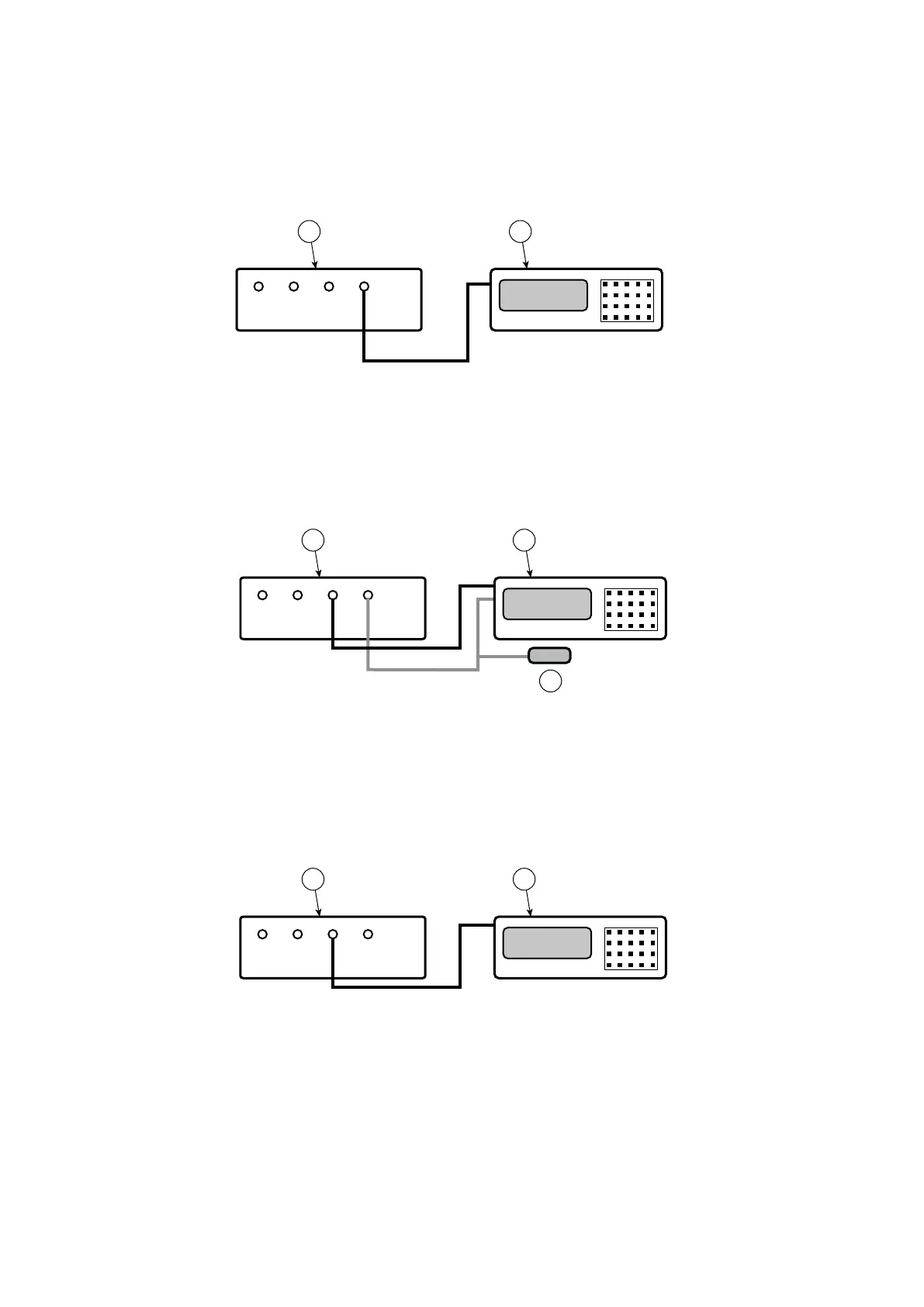

Figure 11: Connection for Barometric Sensor Calibration
5.7 PACE Indicator Connection for Low Pressure Calibration
Use this connection when there is no line pressure, for low pressure and low noise measurement
in gauge or pseudo gauge mode.
Figure 12: Connection for Low Pressure Measurement
5.8 PACE Indicator Connection for Absolute Pressures
This connection also applies to PACE1000 units with IRS3 sensors and the PACE Tallis units.
Figure 13: Connection for Absolute Pressures
1 PACE Pressure Indicator (seen from rear). 2 Pressure calibration standard.
1 PACE Pressure Indicator (seen from rear). 2 Pressure calibration standard.
3 Low pressure differential connection kit
(IO-DIFF-KIT-LP).
1 PACE Pressure Indicator (seen from rear). 2 Absolute Sensor or instrument.
+VE
REF
21
+VE+VE
+VE
REF
21
+VE+VE
3
+VE
REF
21
+VE+VE
