DSC HS2016 Reference Manual

Appendix 6: Wiring Diagrams

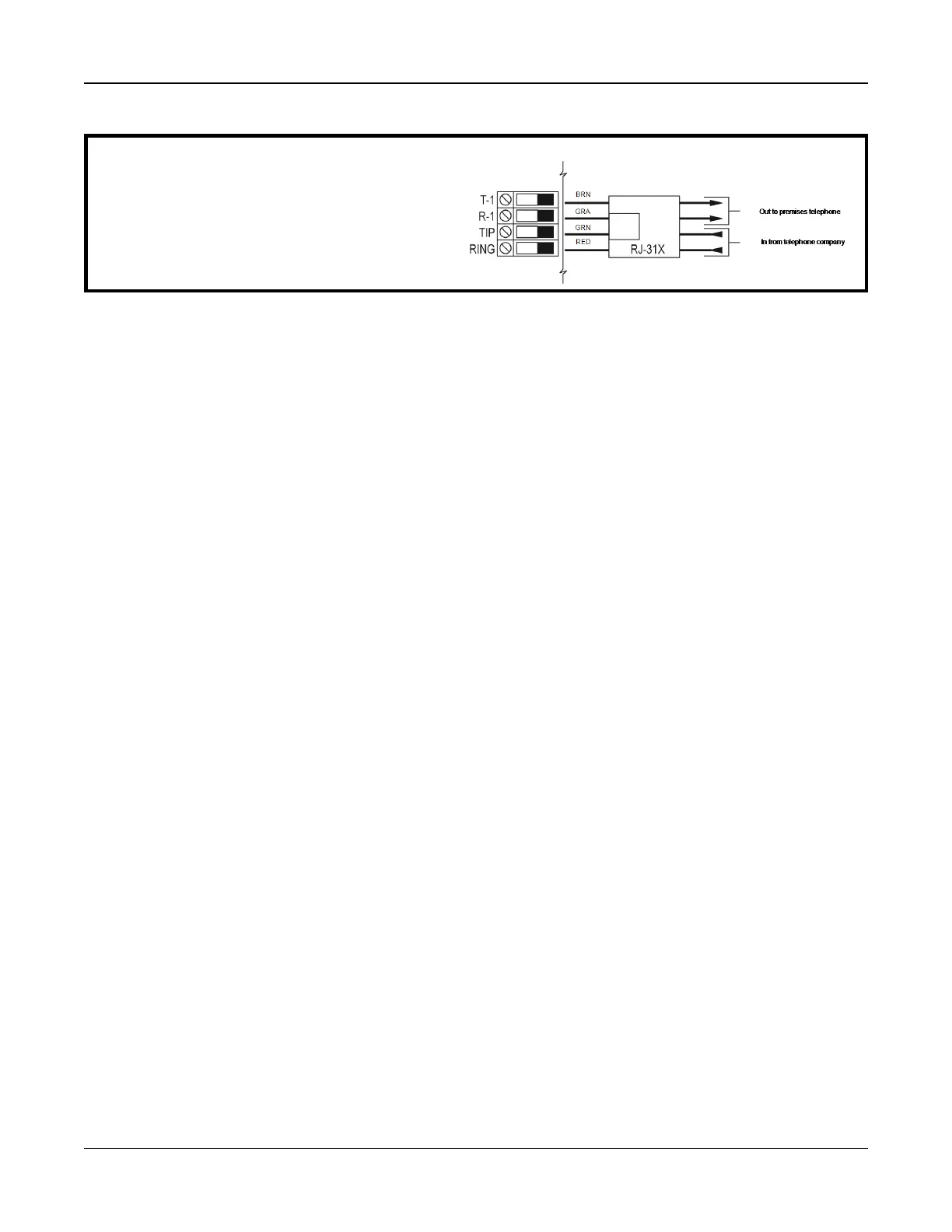

Telephone Line Wiring
Wire the telephone connection terminals (TIP, Ring, T-1, R-1) to an
RJ-31x Connector as indicated.
For connection of multiple devices to the phone line, wire in the
sequence shown.
Telephone format is programmed in section [350].
Telephone Call Directions are programmed in section [311] - [318].
Note: For ULC installations, please refer to the ULC Installation Information Sheet part#29002157.
- 218 -

DSC HS2016 Specifications

General

Mounting Type	Wall mount
Power Supply	16.5VAC
Battery Backup	12VDC
Operating Temperature	32°F to 120°F (0°C to 49°C)
Dimensions	267mm
