S Y S T E M I N T R O D U C T I O N
4

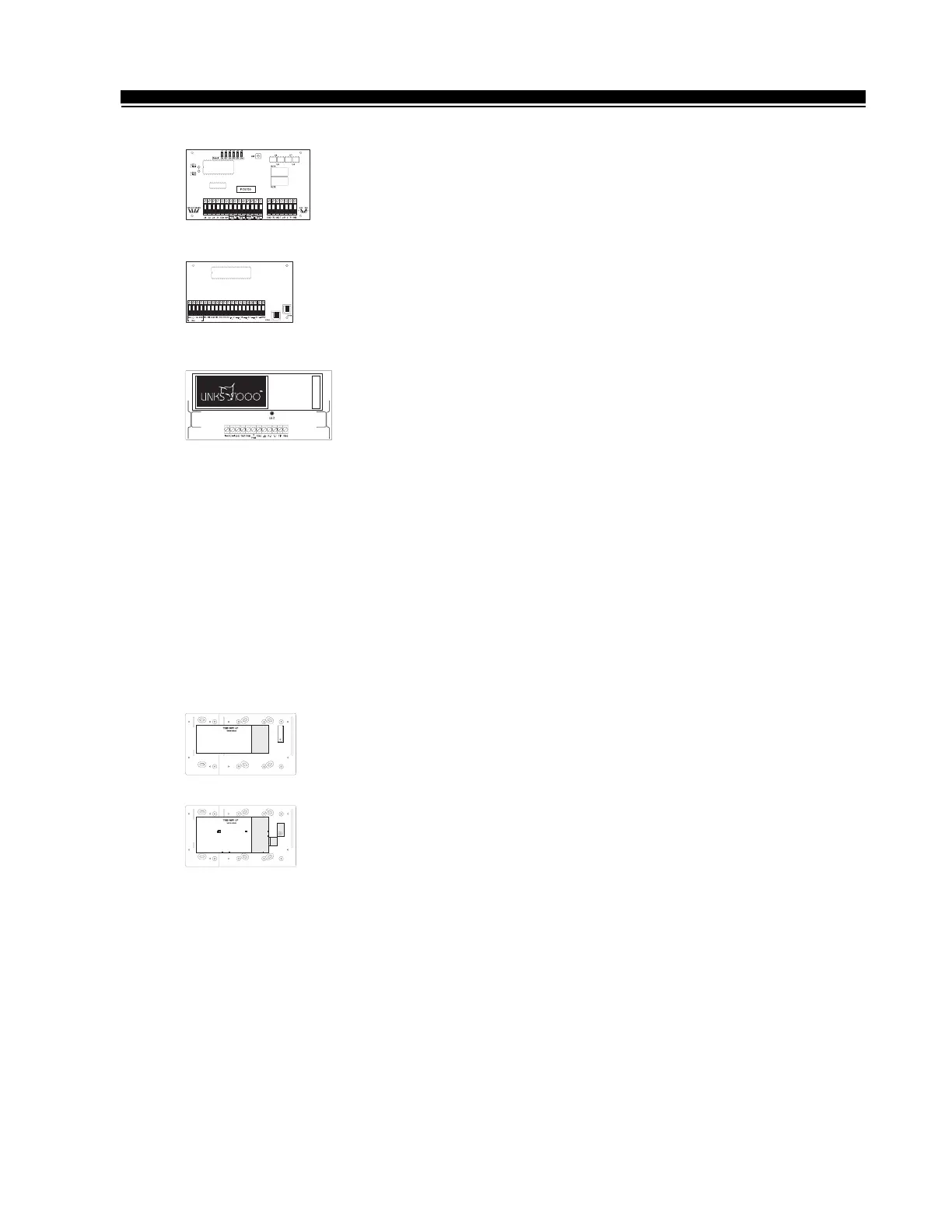

1.2.10 PC5700 Fire Module
A zone expansion module with four general purpose zone inputs, two Class A
supervisory waterflow zone inputs, ground fault detection and dual-supervised
telephone line inputs.
1.2.11 PC5720 Fire/Printer/DVACS Module
A zone expansion module with five general purpose zone inputs, two Class A
supervisory waterflow zone inputs, ground fault detection, and connections for
interfacing with either a serial printer or a DVACS communications network.
1.2.12 LINKS1000 Cellular Communicator
The LINKS1000 Cellular Communicator provides an efficient, cost-effective
method for adding cellular back up. The unit comes in its own cabinet with
antenna and requires a separate battery and transformer
(See Section 5.26
“LINKS1000 cellular communicator”).
1.2.13 Cabinets
Several different cabinets are available for the PC5010 modules. They are as follows:
PC5003C Main Control Cabinet for the PC5010 main panel. Dimensions 288mm x 298mm x 78mm /
11.3” x 11.7” x 3” approximately.
PC5002C Cabinet to house the PC5204 Power Supply Output Module. Dimensions 213mm x 235mm x
78mm / 8.4” x 9.25” x 3” approximately.
PC5004C Cabinet to house the Escort5580 Module and PC5400 Printer Module. Dimensions 229mm x
178mm x 65mm / 9” x 7” x 2.6” approximately.
PC5001C Cabinet to house the PC5108 Zone Expander Module and the PC5208 Eight Low Current
Output Module. Dimensions 153mm x 122mm x 38mm / 6” x 4.8” x 1.5” approximately.
PC5001CP Plastic Cabinet to house the PC5108 Zone Expander Module and the PC5208 Eight Low
Current Output Module. Dimensions 146mm x 105mm x 25.5mm / 5.75” x 4.2” x 1” approximately.
1.2.14 Backplates
There are two different backplates available for keypads to locate an Audio Station next to the keypad:
PC55BP1 Backplate
This backplate is to be used when an Audio Station is to be located next to
a keypad. Dimensions 208mm x 115mm x 18mm / 8.2” x 4.5” x 0.25”
approximately.
PC55BP2 Backplate
This backplate is to be used when an Audio Station is to be located next to a
keypad. In addition the backplate will allow you to mount a PC5108 Zone
Expander Module or the PC5208 Eight Low Current Output Module. Dimensions
208mm x 115mm x 18mm / 8.2” x 4.5” x 0.7” approximately.
1.3 Out of the Box
You should find the following equipment included in your system. Verify each of the components is included:
• one PC5010 main control cabinet
• one PC5010 main control circuit board
• one PC55XX(Z) (8 zone, 16 zone or 32 zone LED)/LCD5500(Z) keypad
• one Installation Manual
• one Programming Worksheet Manual
• one Instruction Manual (LED or LCD keypad)
• one hardware pack consisting of:
- five plastic circuit board standoffs - seventeen 5600 ohm (5.6K) resistors
- one 2200 ohm (2.2K) resistor - one 1000 ohm (1K) resistor
