DSC PowerSeries Neo TL8803GI-EU User Manual

- 10 -
Installation
HS2016/2032/2064/2128
PCLINK_2
Alarm Controller Cabinet
HSPA Controller
A
B
D
C

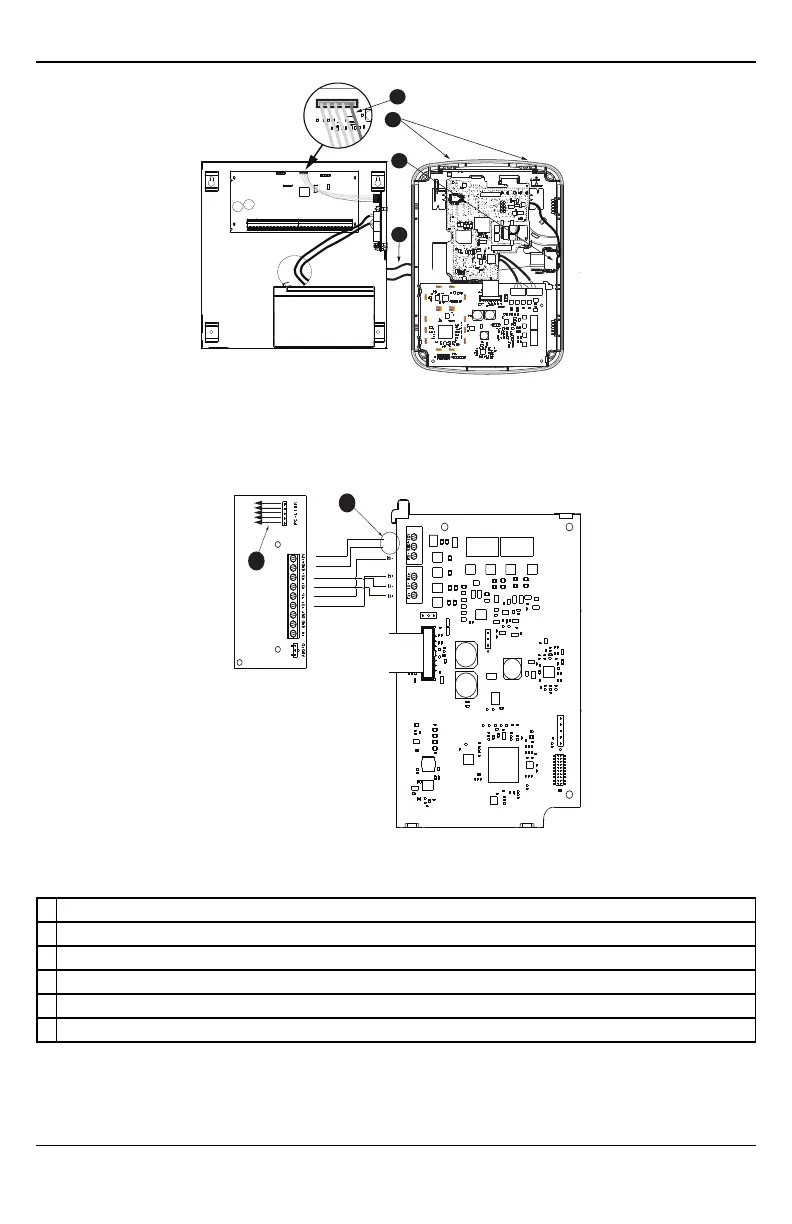

Figure 3 - HSPA controller and alarm controller cabinet
PCL-422
Mounted in Alarm Controller Cabinet
HSPA Controller Board
RX-
RX+
TX+
TX-
+12V
GND
+12V
GND
E
F
Figure 4 - HSPAcontroller board and alarm controller cabinet
A Red wire on alarm controller PCLink2 Header
B Antenna access ports
C Ethernet cable connection
D Quad cables (100' / 30m maximum)
E Red wire on PCL-422 PCLink Header
F HSPA Controller Board power terminals. Can be connected to power supply module (HSM2204/2300).
1: Connect data bus
The maximum cable length permitted for the data bus is 100ft/30m.
