DSC PowerSeries PC585 User Manual

Programming Worksheets: 5.32 Walk Test (Installer)
33
Advanced System Programming
Zone Attributes (Section 5.3 “Zone Attributes” )
Zone Attribute Defaults (Y = Option ON; N = Option OFF):
Section Zone # Zone 1 2 3 4 5 6 7 8
Type*
[101] 1 ( )
I________I I________| I________| I________| I________| I________| I________| I________I
[102] 2 ( ) I________I I________| I________| I________| I________| I________| I________| I________I
[103] 3 ( ) I________I I________| I________| I________| I________| I________| I________| I________I
[104] 4 ( ) I________I I________| I________| I________| I________| I________| I________| I________I
[105] 5 ( ) I________I I________| I________| I________| I________| I________| I________| I________I
[106] 6 ( ) I________I I________| I________| I________| I________| I________| I________| I________I
[107] 7 ( ) I________I I________| I________| I________| I________| I________| I________| I________I
[108] 8 ( ) I________I I________| I________| I________| I________| I________| I________| I________I
*Record here based on programming in section [001]
Attribute: 123456 7 8
ON Audible Steady Chime Bypass Force Swing Tx. Delay Wireless Zn.
OFF Silent Pulsed No No No No No No

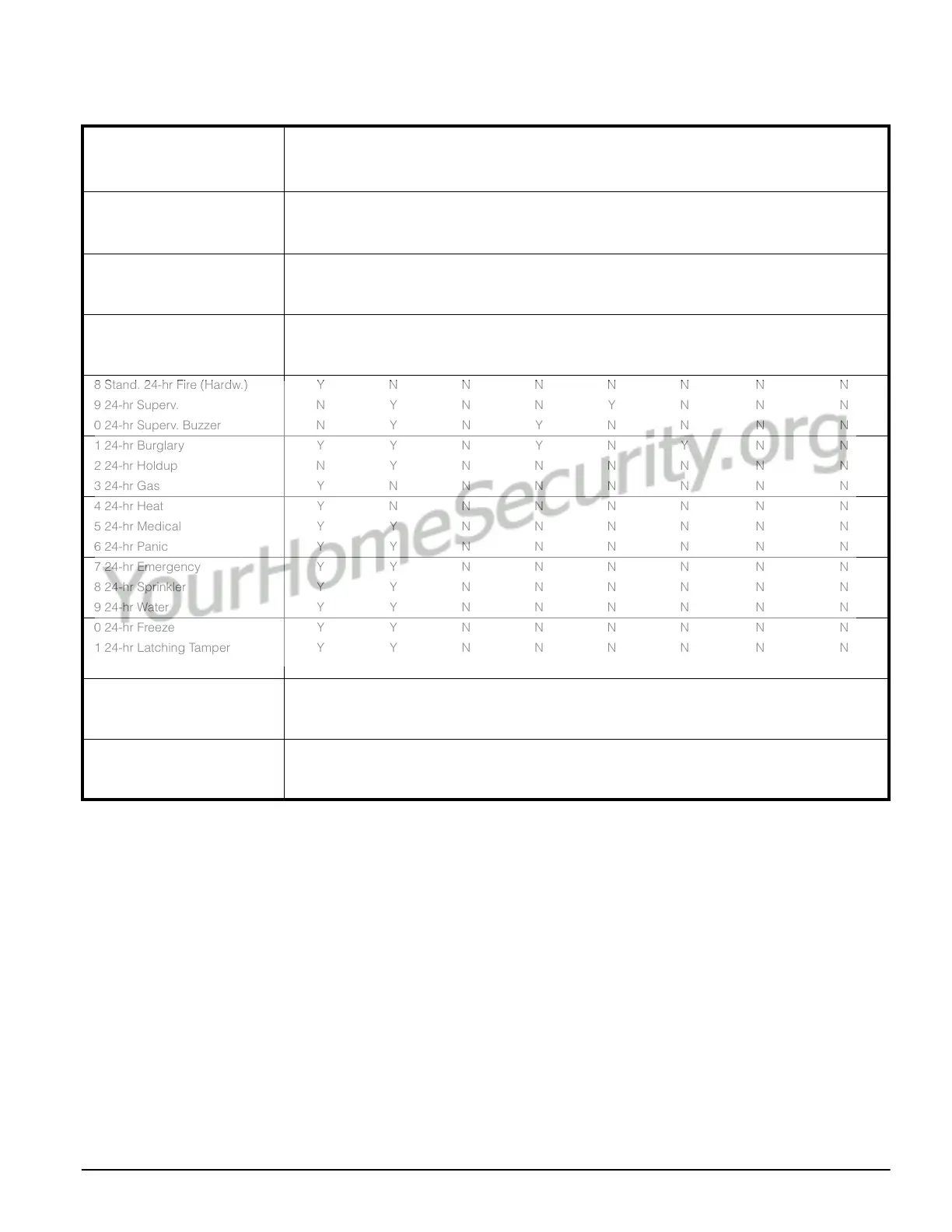

Zone Type:
00 Null Zone NNNNNN N N
01 Delay 1 Y Y N Y Y Y N N
02 Delay 2 YYNYNY N N
03 Instant Y Y N Y N Y N N
04 Interior Y Y N Y Y Y N N
05 Int. Stay/Away Y Y N Y Y Y N N
06 Dly. Stay/Away Y Y N Y Y Y N N
07 Dly. 24-hr Fire (Hardw.) Y NNNNN N N
08 Stand. 24-hr Fire (Hardw.) Y NNNNN N N
09 24-hr Superv. N Y N N Y N N N
10 24-hr Superv. Buzzer N Y N Y N N N N
11 24-hr Burglary Y Y N Y N Y N N
12 24-hr Holdup N Y NNNN N N
13 24-hr Gas Y NNNNN N N
14 24-hr Heat Y NNNNN N N
15 24-hr Medical Y Y NNNN N N
16 24-hr Panic Y Y NNNN N N
17 24-hr Emergency Y Y NNNN N N
18 24-hr Sprinkler Y Y NNNN N N
19 24-hr Water Y Y NNNN N N
20 24-hr Freeze Y Y NNNN N N
21 24-hr Latching Tamper Y Y NNNN N N
22 Momentary Keyswitch NNNNYN N N
23 Maintained Keyswitch NNNNYN N N
25 Interior Delay Y Y N Y N Y N N
28 24-hour Bell/Buzzer Y Y N Y N N N N
29 Instant Stay/Away Y Y N Y Y Y N N
87 Dly. 24-hr Fire (Wireless) Y NNNNN N Y
88 Stand. 24-hr Fire (Wireless) Y NNNNN N Y

DSC PowerSeries PC585 Specifications

General

Partitions	1
Communicator	Built-in
Keypads Supported	8
PGM Outputs	2
Power Supply	16.5VAC
Battery Backup	12VDC, 4AH
Operating Temperature	0°C to 49°C (32°F to 120°F)
Humidity	Up to 85% non-condensing
Zones	8
