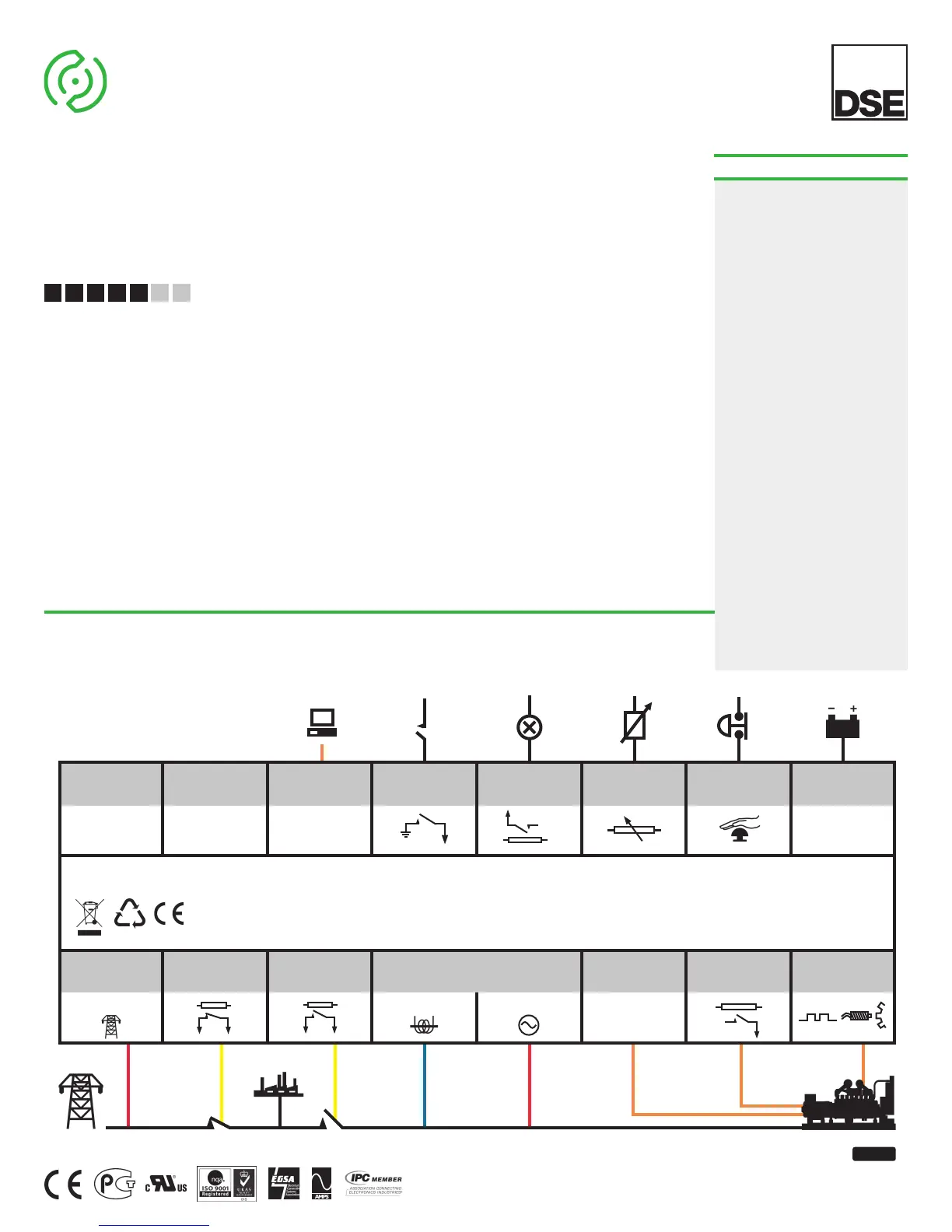

DSE7210/20
AUTO START & AUTO MAINS FAILURE
CONTROL MODULES
DSEGenset
®
The DSE7210 is an Auto Start
Control Module and the DSE7220 is
an Auto Mains (Utility) Failure Control
Module suitable for a wide variety of
single, diesel or gas,
gen-set applications.
Monitoring an extensive number of
engine parameters, the modules will
display warnings, shutdown and
engine status information on the
back-lit LCD screen and illuminated
LEDs. The DSE7220 will also monitor
the mains (utility) supply.
Both modules are compatible with
electronic (CAN) and non-electronic
(magnetic pick-up/alternator sensing)
engines and offer an extensive
number of flexible inputs, outputs
and engine protections so the
system can be easily adapted to suit
a wide range of application
demands.
Enhanced features include a real-
time clock for improved event
monitoring, the ability to display
information in any language and a
clear 4-line text display.
The modules can be easily
configured using the DSE
Configuration Suite PC software.
Selected front panel editing is also
available.
FEATURES
ENVIRONMENTAL TESTING STANDARDS
ELECTRO-MAGNETIC COMPATIBILITY
BS EN 61000-6-2
E
MC Generic Immunity Standard for
the Industrial Environment
BS EN 61000-6-4
E
MC Generic Emission Standard for
the Industrial Environment
ELECTRICAL SAFETY
BS EN 60950
Safety of Information Technology Equipment,
including Electrical Business Equipment
TEMPERATURE
B
S EN 60068-2-1
Ab/Ae Cold Test -30
o
C
BS EN 60068-2-2
Bb/Be Dry Heat +70
o
C
VIBRATION
BS EN 60068-2-6
T
en sweeps in each of three
major axes
5 Hz to 8 Hz @ +/-7.5 mm,
8 Hz to 500 Hz @ 2 gn
H
UMIDITY
BS EN 60068-2-30
Db Damp Heat Cyclic 20/55
o
C
@ 95% RH 48 Hours
BS EN 60068-2-78
Cab Damp Heat Static 40
o
C
@ 93% RH 48 Hours
SHOCK
BS EN 60068-2-27
Three shocks in each of three major axes
15 gn in 11 mS
D
EGREES OF PROTECTION
PROVIDED BY ENCLOSURES
BS EN 60529
IP65 - Front of module when installed into the
control panel with the supplied sealing gasket.
1ph
2ph
3ph
N
1ph
2ph
3ph
1ph
2ph
3ph
N
11
64
PC
VOLTS
3
+
DEUTZ
ISUZU
PERKINS
CATERPILLAR
MTU
VOLVO
CUMMINS
SCANIA
D +
W/L
GENERATOR SENSING
VOLTSCURRENT
USB
PORT
CONFIGURABLE
INPUTS
DC OUTPUTS ANALOGUE
SENDERS
EMERGENCY
STOP
DC POWER
SUPPLY 8-35V
ELECTRONIC
ENGINES &
MAGNETIC PICK-UP
FUEL & CRANK
OUTPUTS
(Flexible with CAN)
CHARGE
ALTERNATOR
N/O VOLT
FREE OUTPUT
N/C VOLT FREE
OUTPUT
MAINS (UTILITY)
SENSING
DSE7220 ONLY
ISSUE 7
+
COMPREHENSIVE FEATURE LIST TO SUIT A WIDE VARIETY OF
GEN-SET APPLICATIONS
7
