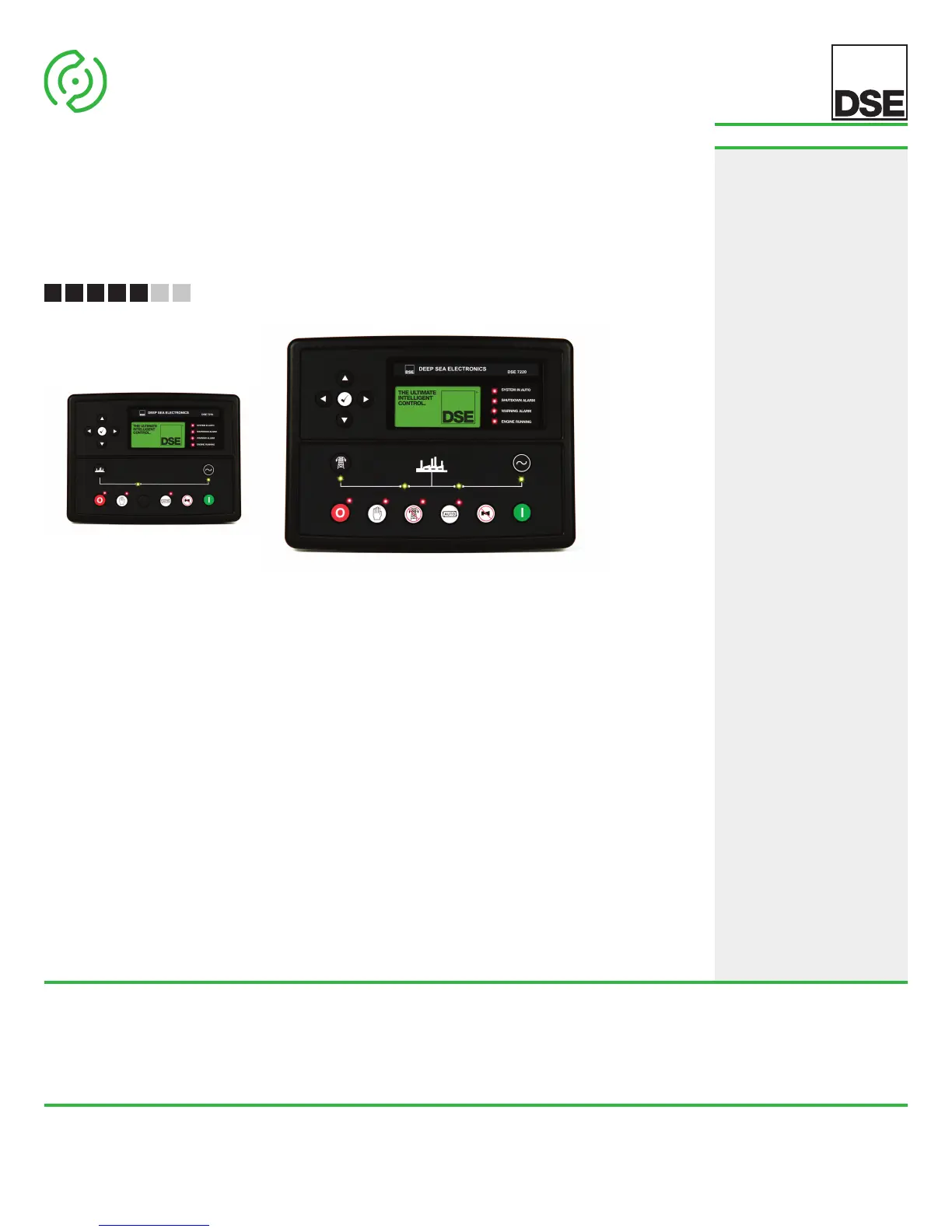

DSE7210/20
AUTO START & AUTO MAINS FAILURE
CONTROL MODULES
®
DSEGenset
DSE7210
DSE7220
FEATURES
SPECIFICATION
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
C
RANKING DROPOUTS
Able to survive 0 V for 50 mS, providing
supply was at least 10 V before dropout and
supply recovers to 5 V. This is achieved
without the need for internal batteries.
LEDs and backlight will not be maintained
d
uring cranking.
MAXIMUM OPERATING CURRENT
340 mA at 12 V, 160 mA at 24 V
MAXIMUM STANDBY CURRENT
160 mA at 12 V, 80 mA at 24 V
C
HARGE FAIL/EXCITATION RANGE
0 V to 35 V
MAINS (UTILITY) DSE7220 ONLY
VOLTAGE RANGE
15 V - 333 V AC (L-N)
F
REQUENCY RANGE
3.5 Hz to 75 Hz
OUTPUTS
OUTPUT A (FUEL)
15 A DC at supply voltage
OUTPUT B (START)
15 A DC at supply voltage
OUTPUTS C & D
8
A 250 V (Volt free)
AUXILIARY OUTPUTS E,F,G,H
2 A DC at supply voltage
GENERATOR
VOLTAGE RANGE
15 V - 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
MAGNETIC PICK UP
VOLTAGE RANGE
+/- 0.5 V to 70 V
FREQUENCY RANGE
10,000 Hz (max)
DIMENSIONS
OVERALL
240 mm x 181 mm x 42 mm
9.4” x 7.1” x 1.6”
PANEL CUT-OUT
220 mm x 160 mm
8.7” x 6.3”
MAXIMUM PANEL THICKNESS
8 mm
0.3”
OPERATING TEMPERATURE RANGE
-30°C to +70°C
STORAGE TEMPERATURE RANGE
-40°C to +80°C
DEEP SEA ELECTRONICS PLC UK
Highfield House, Hunmanby Industrial Estate, Hunmanby YO14 0PH
TELEPHONE +44 (0) 1723 890099 FACSIMILE +44 (0) 1723 893303
EMAIL sales@deepseaplc.com WEBSITE www.deepseaplc.com
DEEP SEA ELECTRONICS INC USA
3230 Williams Avenue, Rockford, IL 61101-2668 USA
TELEPHONE +1 (815) 316 8706 FACSIMILE +1 (815) 316 8708
EMAIL sales@deepseausa.com WEBSITE www.deepseausa.com
RELATED MATERIALS
TITLE PART NO’S
DSE7210 Installation Instructions 053-026
DSE7220 Installation Instructions 053-027
DSE7200/7300 Quick Start Guide 057-101
DSE7200/7300 Operator Manual 057-074
DSE7200/7300 Configuration Suite PC Manual 057-077
055-081/08/10 (12) USRegistered in England & Wales No.01319649
VAT No.316923457
Deep Sea Electronics Plc maintains a policy of continuous development and reserves the right to change
the details shown on this data sheet without prior notice. The contents are intended for guidance only.
KEY FEATURES
• 4-Line back-lit LCD text display
• Five key menu navigation
• Front panel editing with PIN
protection
• Customisable status screens
• Power save mode
• 6 configurable inputs
• 8 configurable outputs
• Configurable timers and alarms
• 3 configurable maintenance
alarms
• Multiple date and time scheduler
• Configurable event log (100)
• Tier 4 CAN engine support
• Integral PLC editor
• Easy access diagnostic page
• CAN and Magnetic Pick-up/Alt.
sensing
• Fuel usage monitor and low fuel
alarms
• Charge alternator failure alarm
• Manual speed control (on
compatible CAN engines)
• Manual fuel pump control
• Engine exerciser
• “Protections disabled” feature
• kW & kV Ar overload protection
• Reverse power (kW & kV Ar)
protection
• LED and LCD alarm indication
• Power monitoring (kW h, kV Ar,
kV A h, kV Ar h)
• Load switching (load shedding
and dummy load outputs)
• Automatic load transfer (DSE7220)
• Unbalanced load protection
• True dual mutual standby with load
balancing timer (DSE7210 only)
• USB connectivity
• Backed up real time clock
• Fully configurable via DSE
Configuration Suite PC software
• Configurable display languages
• Remote SCADA monitoring via
DSE Configuration Suite PC
software
KEY BENEFITS
• 132 x 64 pixel ratio display for
clarity
• Real-time clock provides
accurate event logging
• Multiple date and time scheduler
• Set maintenance periods can
be configured to maintain
optimum engine performance
• Licence-free PC software
• IP65 rating (with supplied
gasket) offers increased
resistance to water ingress
• PLC editor allows user
configurable functions to meet
specific application
requirements
