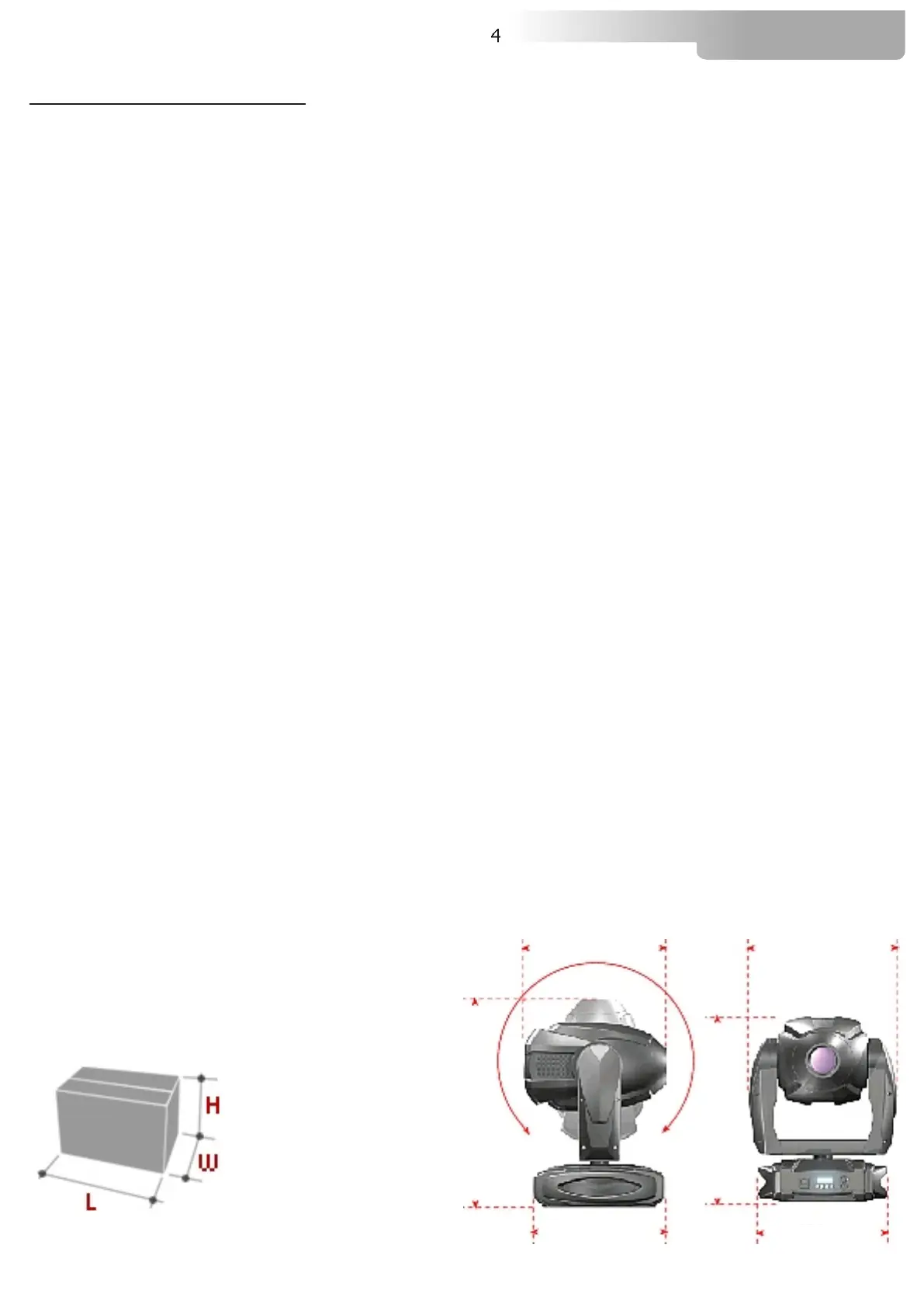

4
1- TECHNICAL FEATURES
The XR5 Spot is fitted with a Philips MSD 250/2 discharge lamp
(GY9,5 lampholder base), with a colour temperature of 8500 °K and a luminous flux of
18,000 Lumens.
Average lifespan is 3000 hours, with replacement recommended before 3200 hours
Other recommended lamps: Osram HSD 250/2, GE CSD 250/2.
The unit incorporates:
Dichroic parabolic reflector
Motorized Focus system
Dimmer (emitted light is controlled by progressive and linear dimming).
Shutter (instantaneous shutter opening/closure).
Strobe: mechanical strobe effect (frequency variable from 0.85 flashes/sec to 10
flashes/sec).
Motorized iris.
2 gobo wheels: 1 rotating (7 indexable 16 bit gobos + open) and 1 fixed (11 gobos)
1 Colour wheels (8 colours ).
Prism (indexable 3 facet prism rotating in both directions).
Electromagnetic ballast.
Pan: 540° in 2.8 seconds (8 or 16 bit) with auto repositioning system.
Tilt: 270° in 2.0 seconds (8 or 16 bit) with auto repositioning system.
USITT Standard DMX 512 input signal.
15 or 21 DMX channels.
4 -eight digit- LED display with 4 buttons.
Power supply
Electromagnetic ballast: 230 V (50/60 Hz) standard.
On request: 100 V (50/60 Hz) or 120 V (60 Hz).
Power consumption: 350 W
Remote Lamp on/off via DMX
Operating ambient temperature: -10° / 40°C
Weight: 20 Kg
4 XLR connectors (In and Out) with 3 and 5 pins.
Dimensions (LxWxH)
projector (432x415x590mm)
Packaging Dimensions
(LxWxH)
550 x 440 x 800 mm
Weight
27 Kg
XR 5 SPOT
m5
9
0
m
270°
15 mm
4
408 mm
363 mm
m
5
50
m
32 mm
4
