Key-On/Key-Off using the pin code (immobilizer
override)

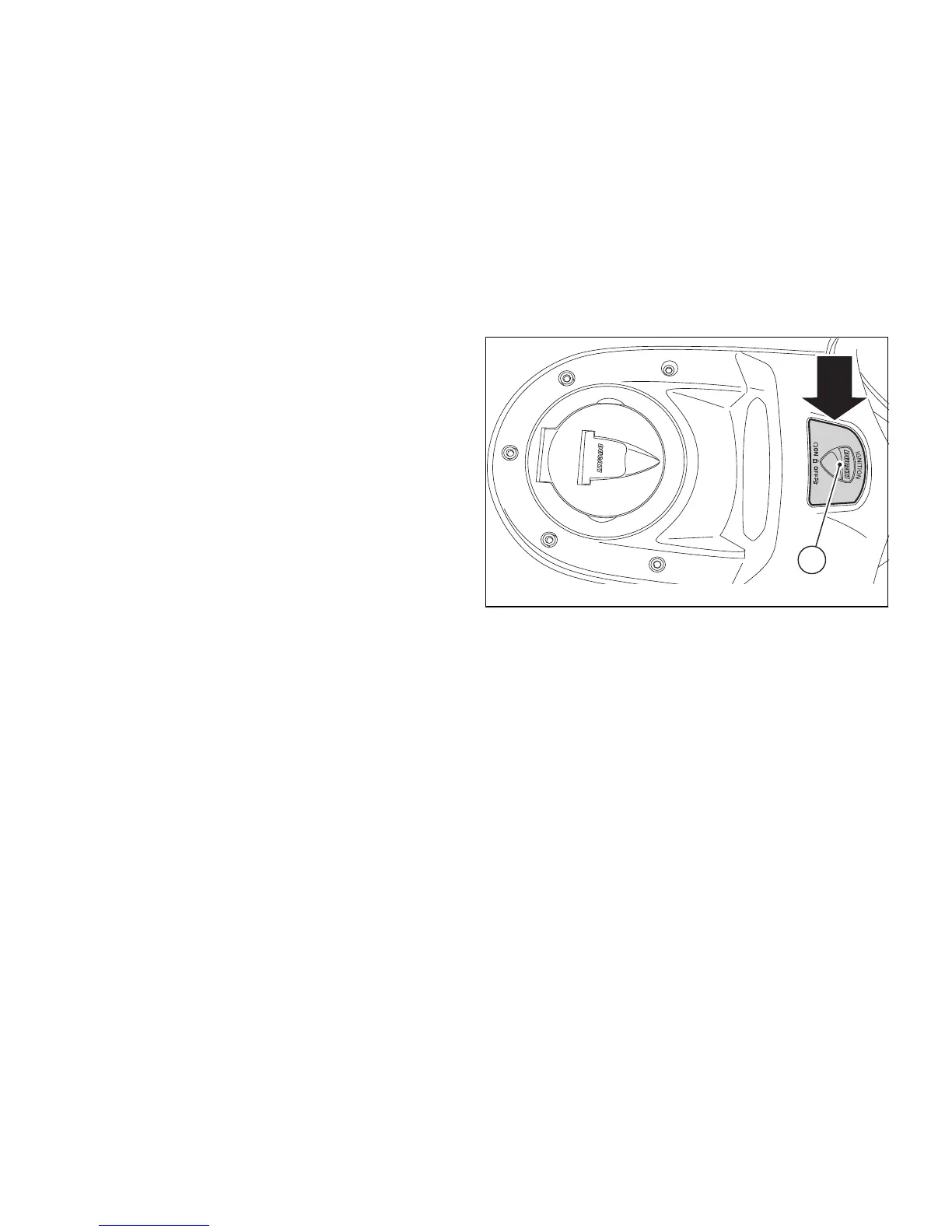

Key-On can be performed by pressing button (7) on
the hands free lock (1, Fig. 87) without the presence
of the keys (3, Fig. 87) and (4, Fig. 87) and entering
the pin code on the instrument panel.
Key-Off can be performed by pressing button (6) on
the handlebar / Hands Free button (7) / engine off, no
key in the range.
After each Key-Off, if the key is not present upon next
Key-On, the pin code must be entered. The pin code
is set by the customer upon delivery of the
motorcycle. The function is not enabled unless a pin
code has been set. When the Hands Free button (7)
is pressed, the instrument panel activates the
backlighting and the round display to allow the rider
to enter the four digit pin code. Entering the correct
pin turns on the instrument panel and enables engine
starting.
The pin must be entered within 120 sec, after which
a Key-Off occurs automatically.
