Instrument panel
1) LCD (see fig. 5).
2) Control buttons A and B.
These buttons are used to display and set instrument
panel parameters.
3) IMMO immobilizer indicator (amber).
The indicator stays on when key code is wrong or is not
acknowledged, and will flash after the immobilizer has
been overridden using the throttle twistgrip (see page 25).
Important
The instrument panel is part of the on-board electronic
injection/ignition system diagnostics.
The relevant menus are for use by trained personnel only.
If you accidentally access this function, turn the key to
OFF and have the motorcycle inspected at an authorized
Ducati Service Center.
4) Engine revolution meter (rpm).
Indicates engine rpm.

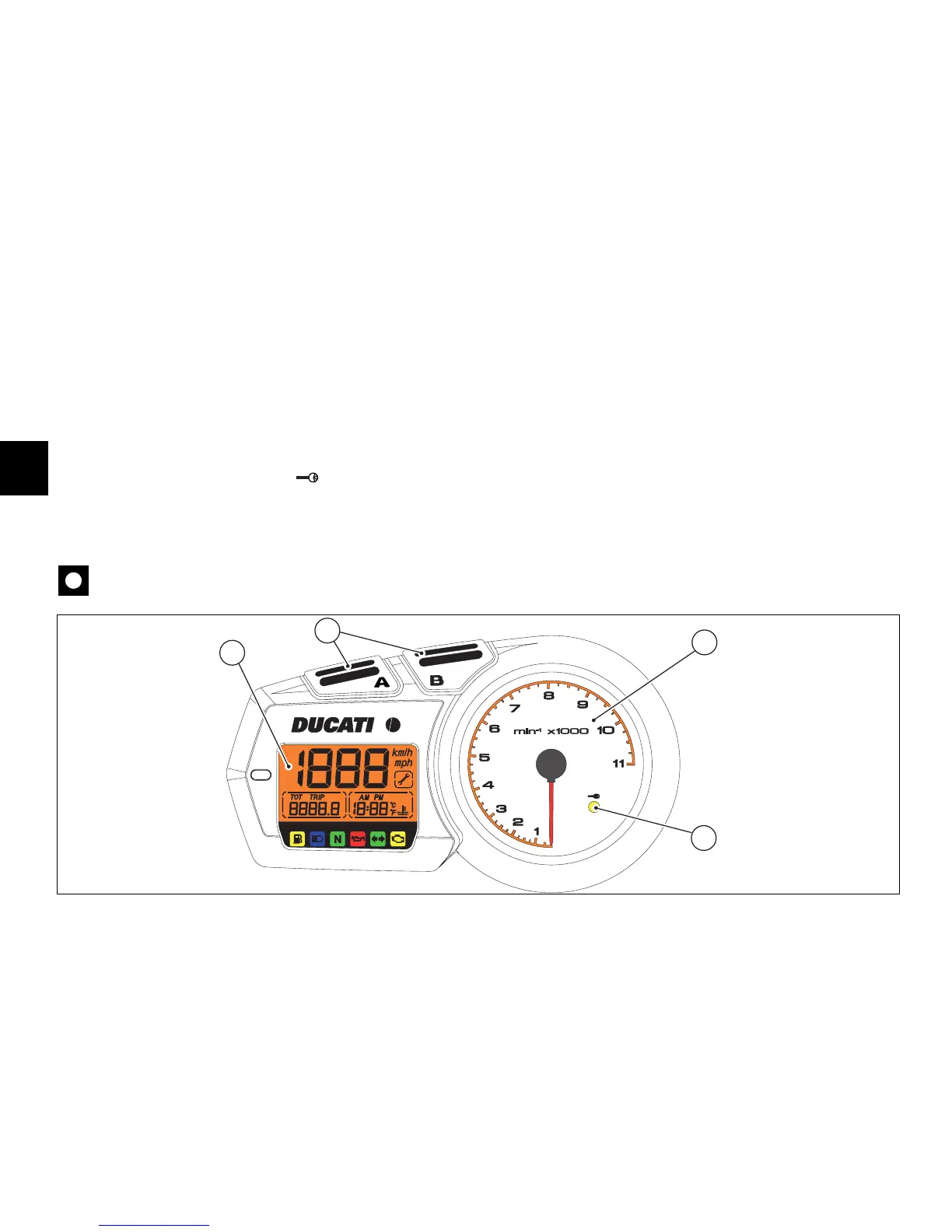

fig. 5
1
2
3
4
