Owner's Manual for DUKE TSC Proofer Oven
with Touch Screen Controls
10

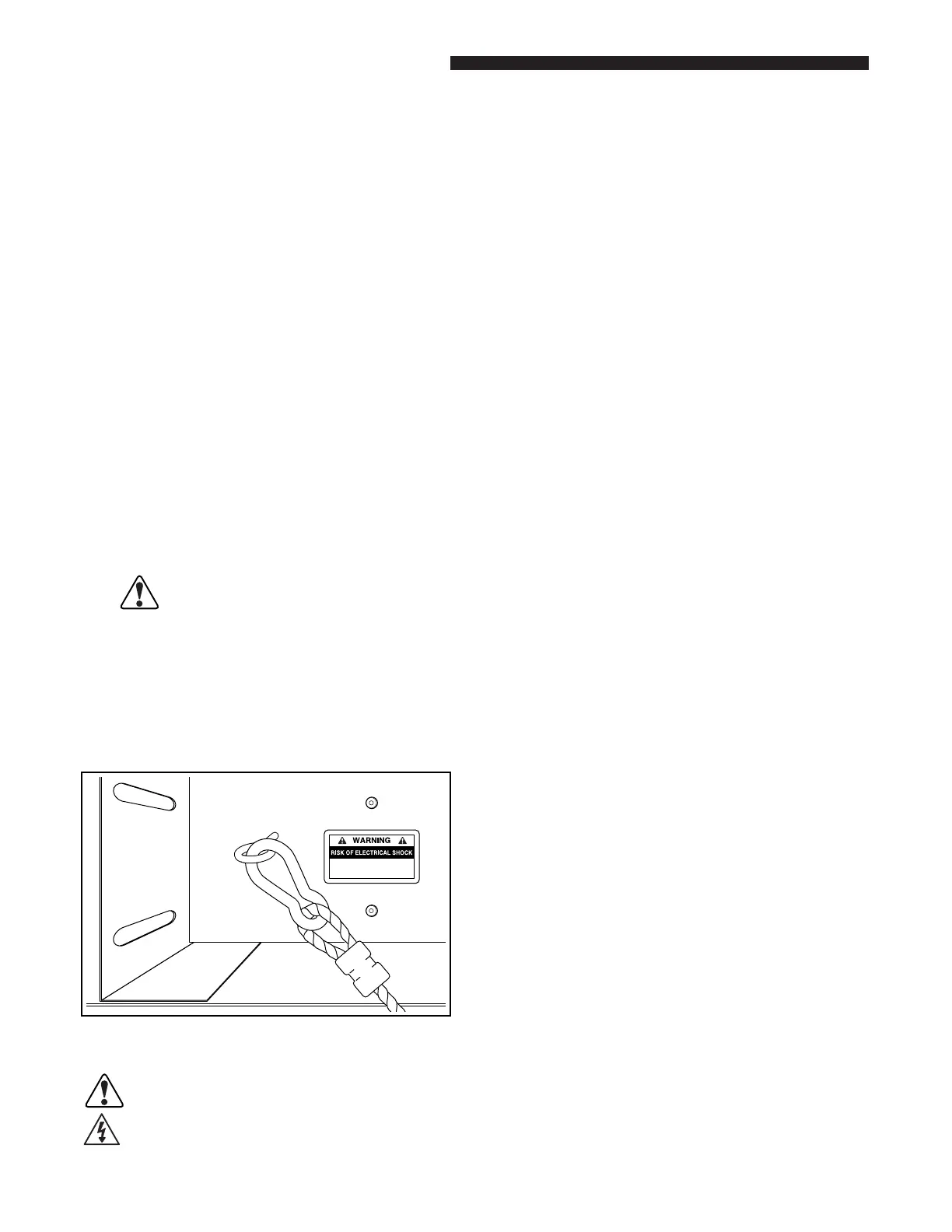

Figure 2: Restraining Device Kit (Part # 153586)
THIS RESTRAINING DEVICE MUST
ALWAYS BE CONNECTED WHEN
THE APPLIANCE IS IN SERVICE.
DISCONNECT ONLY FOR SERVICING
AND/OR CLEANING, THEN
RECONNECT WHEN THE APPLIANCE
HAS BEEN RETURNED TO ITS
NORMAL POSITION.
4. IMPORTANT: A minimum clearance of 6"
(152mm) from the top of unit to the ceiling
must be provided. Unit may be installed with
minimal clearance on one side and rear of the
cabinet.
5. Check the swing of the door. The hinge side
can be changed by referring to the Reversing
Oven Door Swing Direction section of this
manual.
6. Check the door seal and make sure both
doors close completely. If they do not close
and seal properly, refer to the Door Gasket
Adjustment section of this manual.
7. Place the wire racks in the oven and
proofer.
8. Unit can be mechanically attached to wall using
optional wall-mounting brackets. Optional wall-
mounting brackets are not required for safe
operation of the unit. Refer to Installation of
Wall Brackets section of this manual for the
instructions on Installation of Wall Brackets to
the wall.
Technical Description and Application Notes
for TSC Proofer Oven Backow Preventer
System
Check with your local authority having jurisdiction
regarding approvals for connecting the Duke
TSC Proofer Oven to a potable water supply
before making any plumbing connections.
Plumbing code requirements vary, but European
Union (CE) and other jurisdictions require a
backow prevention device that is factory-
installed or available as a kit (P/N 600187). The
backow prevention device used on Duke TSC
Proofer Ovens protects water supply systems
by preventing the reverse ow of non-potable
water into the potable domestic water system.
The device consists of two independently
WARNING: RISK OF INJURY
3. This appliance must be secured to building
structure. A restraining device kit (#153586)
provided with the unit limits the movement of
the appliance without transmitting stress to
the mains supply. Installation instructions are
in the kit. Figure 2.
WARNING: HAZARDOUS VOLTAGE
RISK OF ELECTRIC SHOCK
INSTALLATION
1. This unit can be converted to other mains
supply congurations by Duke Manufacturing
approved service personnel. Call Duke Service
Department for action if electrical rating tag
information is not compatible with the available
mains supply.
2. This unit is supplied with the national
& international specified water supply
interconnection. Backflow prevention
protection is optionally supplied as a factory
installed option or as an add-on kit. Local
regulation variances or additional requirements
must be evaluated prior to installation.
New water supply line interconnection
must be used when installing this unit.
Maximum / minimum supply pressure
specication is 65PSI (450KPa) / 40PSI
(275KPa) for all system plumbing components.
See INSTALLATION OF WATER FILTER
section prior to water supply interconnect.
