Duke TSC-6 Service Manual

Maintenance Manual for DUKE TSC Proofer
Oven with Touch Screen Controls
14
The Air-Wash door has two window panes. 3.
The inner window can be easily separated
from the outer window for cleaning. This is
achieved by unlatching two clips and rotating
the inner window on its hinges. After cleaning,
the inner window frame is easily clipped to the
outer window by squeezing the two windows
together. For additional detail refer to "Air
Wash Door Information" section of this manual.
Inspect oven & proofer door gaskets for4.
cuts, tears or any other damage.
Refer to the
section on "Door Adjustments and Gasket
Maintenance" for directions.
Monthly Care and Cleaning Instructions
Check door handle screws for tightness.1.
Check the door gasket seal on the Oven and 2.
Proofer for leaks. Refer to the section on "Door
Adjustments and Gasket Maintenance" for
directions.
CAUTION
Water lter cartridge is heavy when full of
water
Annual Cleaning Instructions
Replace water lter cartridge & clean inlet 1.
strainer.
Turn off water supply to oven.•
DisconnectWallBracketsifinstalled.See•
Installationofwallbracketssectionof
manual.
Turn off power to Proofer Oven.•
Removeoldlterbyrotatingcartridgeto•
theleft(facingbackofcabinet)slowly
until pressure starts to release, stop and let
pressure and excess water drain through
pressure release hose. Once water has
stopped draining, continue turning to the left
and pull downward.
CAUTION
Replace lter cartridge only with Duke
factory-authorized replacement parts to
ensure proper operation. See Parts List
section of manual for part number.
CAUTION
Water lter cartridge is under pressure,
slowly remove cartridge to release pressure
Pressure
release hose
Waterline
Disconnect
Compression
Fitting

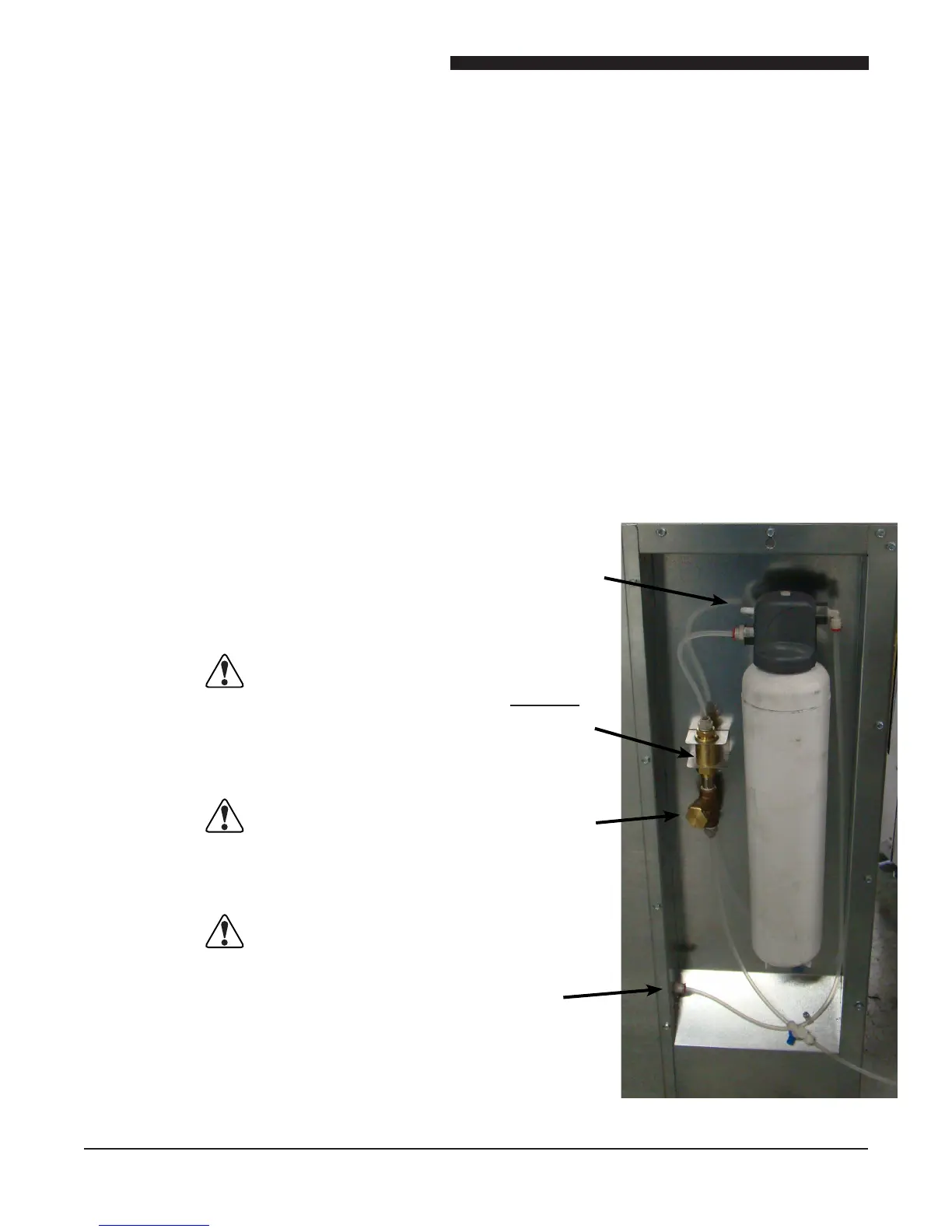

Figure 27: Water Filter System
Optional
Backow
Preventer
Checkvalve
And
Inlet Strainer
Housing
