Dungs MPA22 - Parameterization: Valve Y3 Test Time and Monitor Function; Setting Test Time for Valve Y3; Setting Monitor Function Switch Position

Printed in Germany / M-MT-BOS
• Edition 11.99 • # 231 763
106 … 112
P
S
i
G
L/A
h
l,m
3
Timeout
approx. 20 s
Timeout
approx. 20 s
P
S
i
G
L/A
h
l,m
3
approx. 0.2 s
6
+
–
P
S
i
G
L/A
h
l,m
3
Timeout
approx. 20 s
approx. 0.2 s
Gas burners:
no monitor function
+
–
P
S
i
G
L/A
h
l,m
3
Timeout
approx. 20 s
5
7

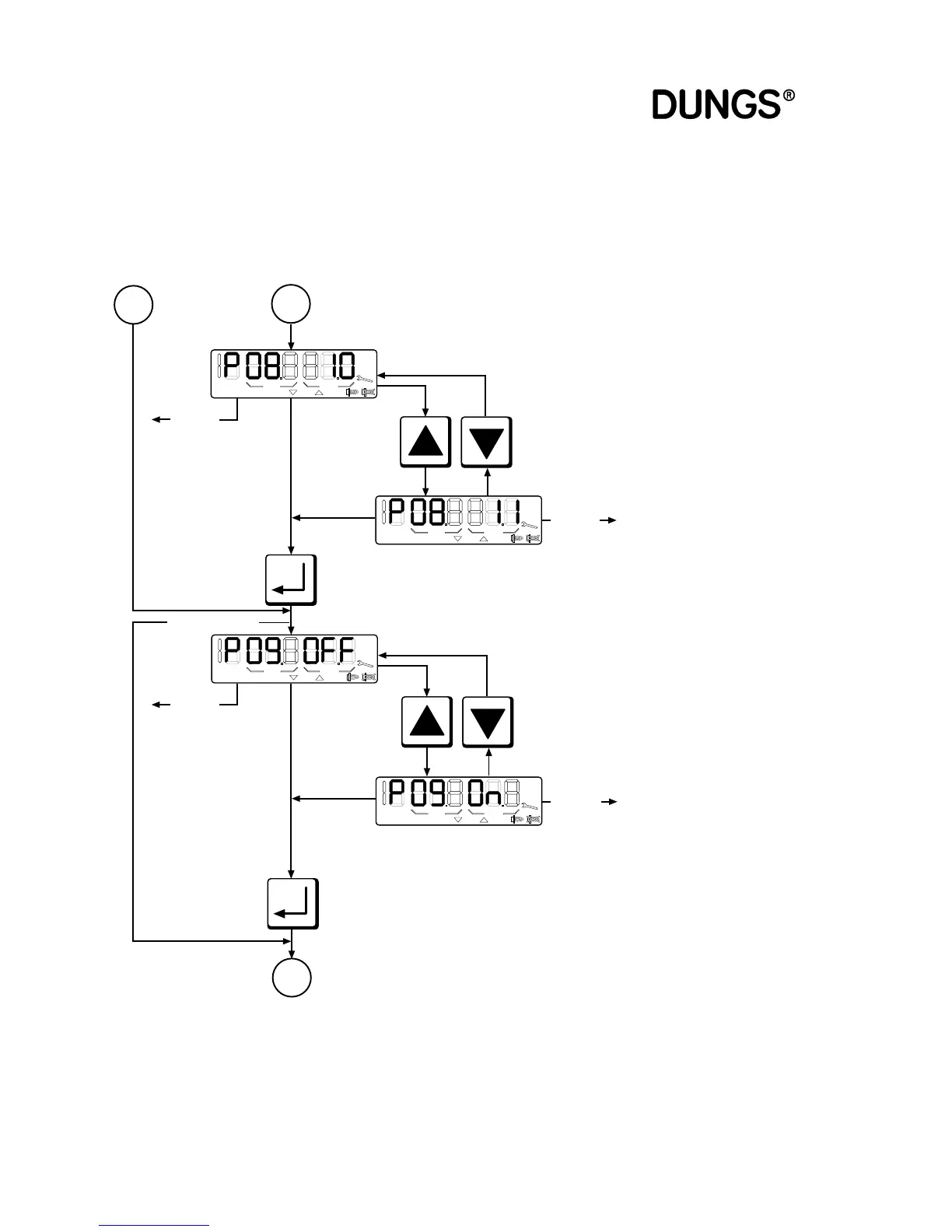

Specify test time for valve Y3
Permissible range: 1 - 240
Strike key = 1 step
Hold down key = 25 steps slow
counting followed by high-speed
counting. Each individual step is
counted.
Switch position of the monitor function
Monitor function activated = ON
Monitor function deactivated = OFF
Approx. 0.5 s: each change is saved.
Display in parameteriza-
tion mode
Gas firing, electronic
modulation
Gas firing, pneumatic
modulation
Oil firing, three stage
