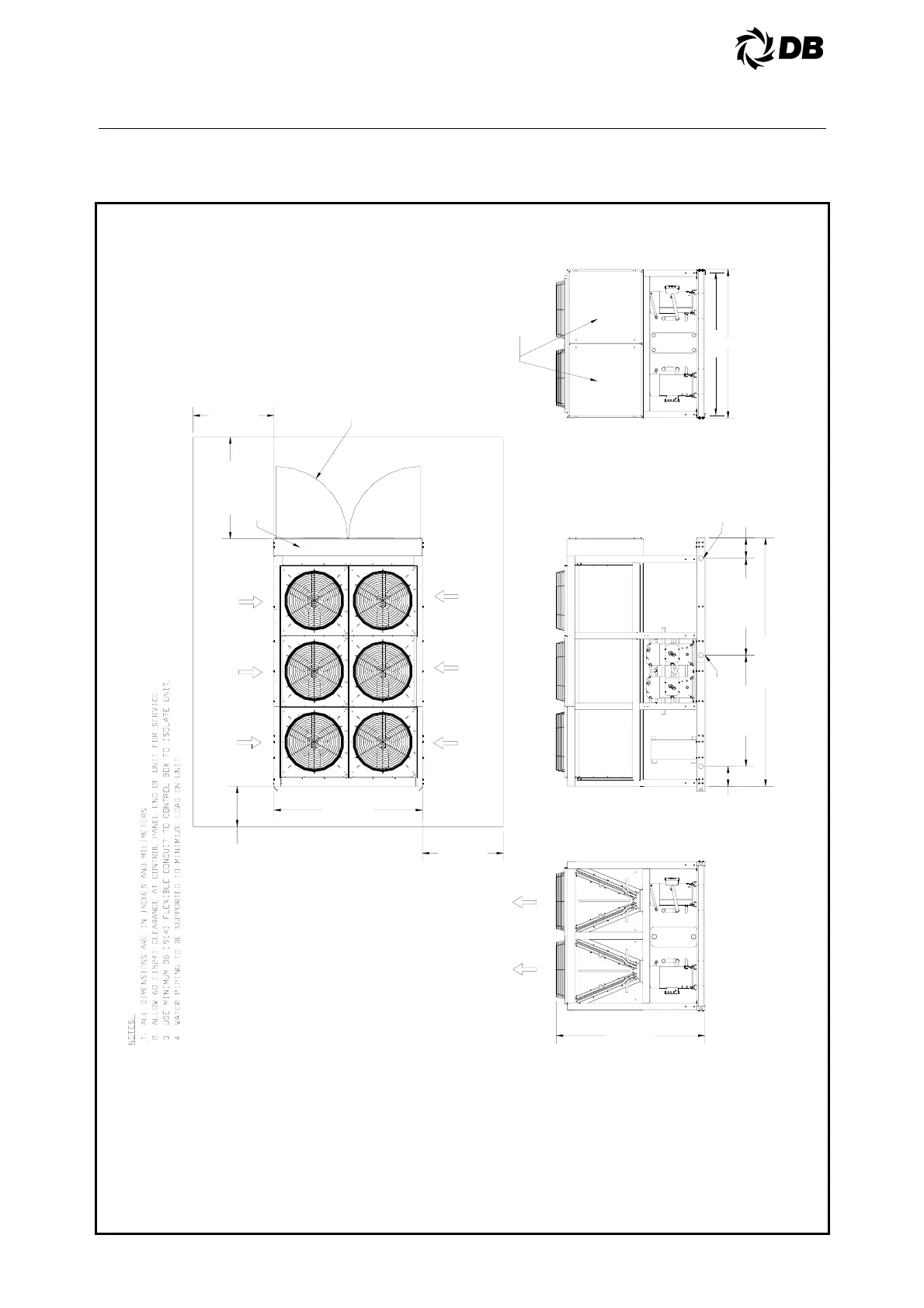

Dunham-Bush ACDS - Page 14

- 14 -
LEFT VIEW
FRONT VIEW
REAR VIEW
TOP VIEW
84 [2134]
POWER ENTRY
(BOTTOM)
DOOR SWING
48 [1218.800 mm]
60.5 [1537.400 mm]
48 [1219.200 mm]
24 [609.600 mm]
88 [2235.600 mm]
AIR FLOW
AIR FLOW
AIR FLOW
CONTROL BOX ACCESS
6 NOS OF n 2.9 [73mm] LIFTING
HOLES ON BOTH SIDE OF THE FRAME
6 NOS OF 3/4" (19)
MOUNTING HOLES
FOR SPRING ISOLATORS
12 [304.800 mm]58 [1467.100 mm]66 [1675.100 mm]
12 [300.300 mm]
88
88 [2236.711 mm]
148 [3747.000 mm]
2.0 INSTALLATION
ACDS 080, 090
