Dunham-Bush ACDS - Status Reading

- 39 -
ANALOG INPUTS
C1 Amps 101A
C1 Disc T 125.2°F [51.8°C]
RELAY OUTPUTS
Comp 1 ON-LOAD
Alarm Status OFF
Control Power ON
C1 Liquid Inj OFF
CW Pump ON
COMPRESSOR 1 STATUS
Comp 1 OK
Amps= 100A
FLA1= 230A
Capacity= 025.5%
Status=ON-LOAD
Hot Gas Bypass OFF
COMPRESSOR 1 HISTORY 1
Today Total
Run Hour 05 0006
Cycle 02 0006
Last On 04/24 19:06
Last Off 04/24 19:03
ANALOG INPUTS
Supply Temp 044.8 °F [07.1°C]
Return Temp 055.6 °F [13.2°C]
Suction Pres 073 PSI [05.2BAR]
Disch Press 179 PSI [12.9BAR]
4.0 ELECTRICAL

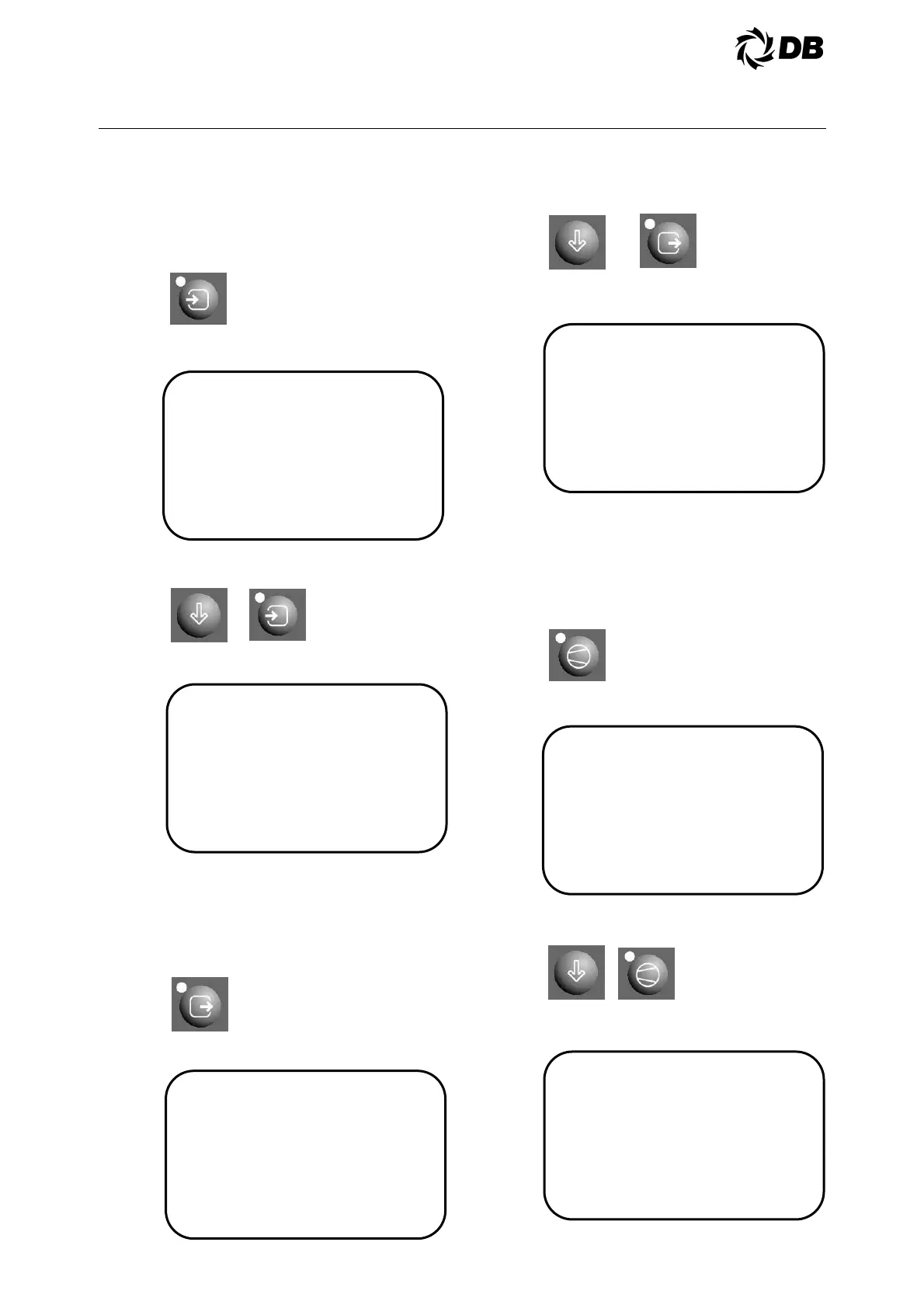

4.3.2 STATUS READING
4.3.2.1 Input status key
To read inputs status press input status
key:
The display is showing the data as
follows:
Press down arrow key or input key to
go to next screen:
The display is showing the data as
follows:
Repeat the same steps to go to other
sensor inputs screen:
4.3.2.2 Output status key
To read relay outputs status press
output status key:
The display is showing the data as
follows:
Press down arrow key or output key to
go to next screen:
The display is showing the data as
follows:
Repeat the same steps to go to other
relay outputs screen:
4.3.2.3 Compressor status key
To read compressor status press
compressor status key:
The display is showing the data as
follows:
Press down arrow key or press
compressor key to go to next screen:
The display is showing the data as
follows:
