Environment
Basic Operations
3

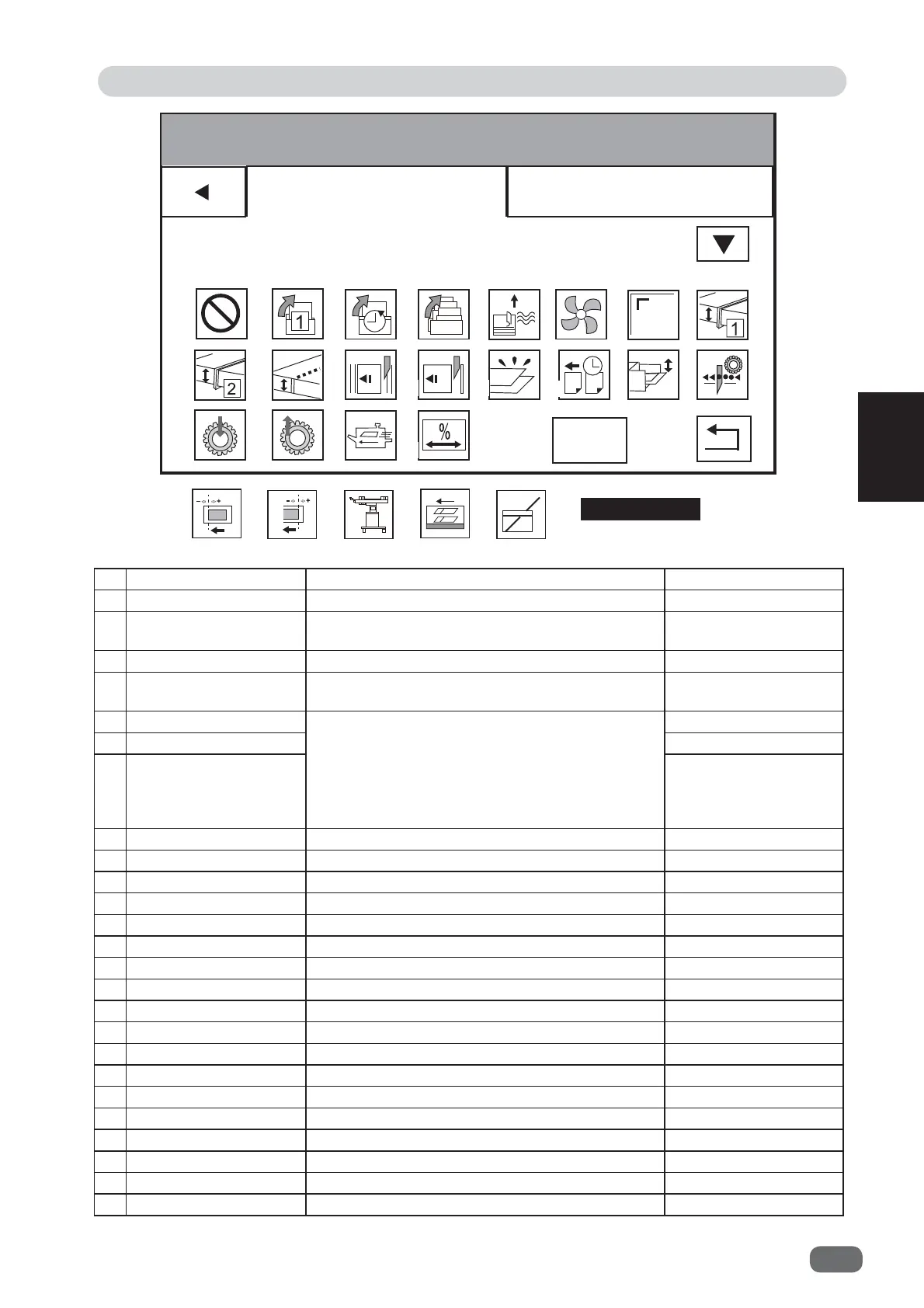

No. Icon Name Details Remarks
1 Not set −
2 Retrieve JOB (No.) Retrieves a saved JOB by selecting a JOB
number.
3 Retrieve JOB (History) Retrieves a saved JOB by selecting a JOB log.
4
Retrieve JOB
(Category)
Retrieves a saved JOB by selecting a JOB
category.
5 Air Knife
Process − Others
6 Suction Power
7 REG Mark
Active only when
REG mark settings
are programmed for a
optional module.
8 Crease Depth 1 Process − Crease (slot 1)
9 Crease Depth 2 Process − Crease (slot 2)
10 CPM Depth Process − CPM (cross perforation module)
11 Cut Trim Mode Process − CUT
12 Trail Cut Mode Process − CUT
13 DBL Detection System − Feed
14 Batch Separation System − Feed
15 Feeder Capacity System − Feed
16 Cutter Speed Adjust − CUT
17 RTM On Pos.Adj.
↓
Adjust − RTM (rotary tool module)
18 RTM Off Pos.Adj.↑ Adjust − RTM (rotary tool module)
19 Speed Adjust − Others
20 Apply Shrinkage Adjust − Apply Shrinkage
21 Adjust All Adjust − Adjust (Adjust All)
22 Last Cut Adj. Adjust − Last Cut Adj.
23 ST3 Connection System − Exit
24 Stack Priority System − Exit
25 Waste Box Area System − Exit
(QYLURQPHQWࠉࠉࠉ6KRUWFXW
6KRUWFXW
6(7
2WKHUV
1
2
3
5
6
4
7
8
9
10
11
12 13
14
15
16
17
18
19
20
21
22
23
24
25
You cannot select any icons for an
optional module that are not set.
REFERENCE
To Next Page
