Slitter Modules

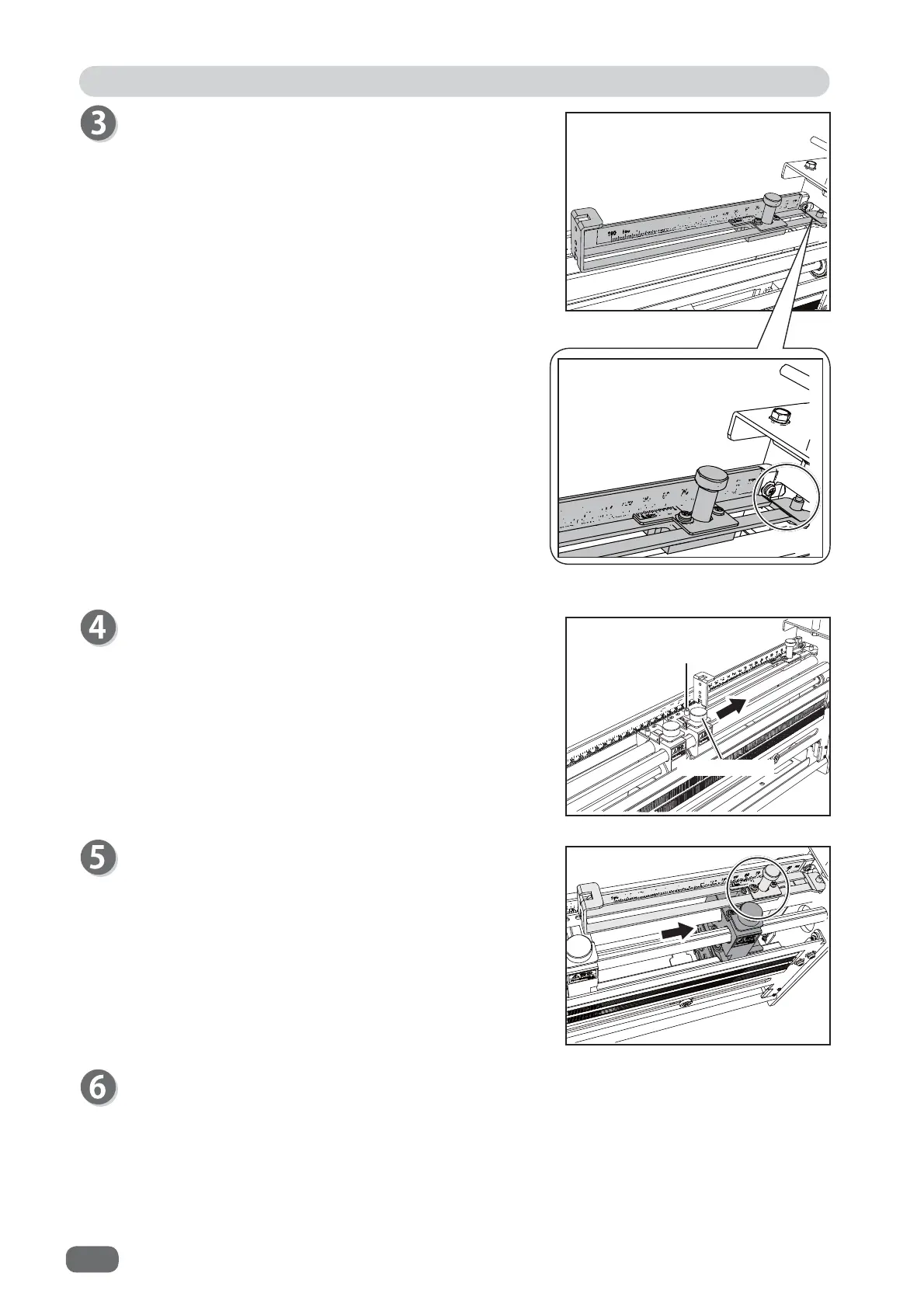

Attach the U-shaped part of the

gauge

to the pin of the

slitter module

. Make sure that there is no gap when it

is attached.

Loosen the

thumb screw

of the

slitter unit (right)

and

move it in the direction of the arrow so that the

the slitter unit is located within the gauge.

Have the pin of the slitter unit come into contact with the

U-shaped part of the

gauge

with no gap. Tighten the

thumb screw to secure the slitter unit position.

Set the gauge to the width of the ﬁ nished document.

Thumb screw
