Before Programming a JOB

Programming JOB

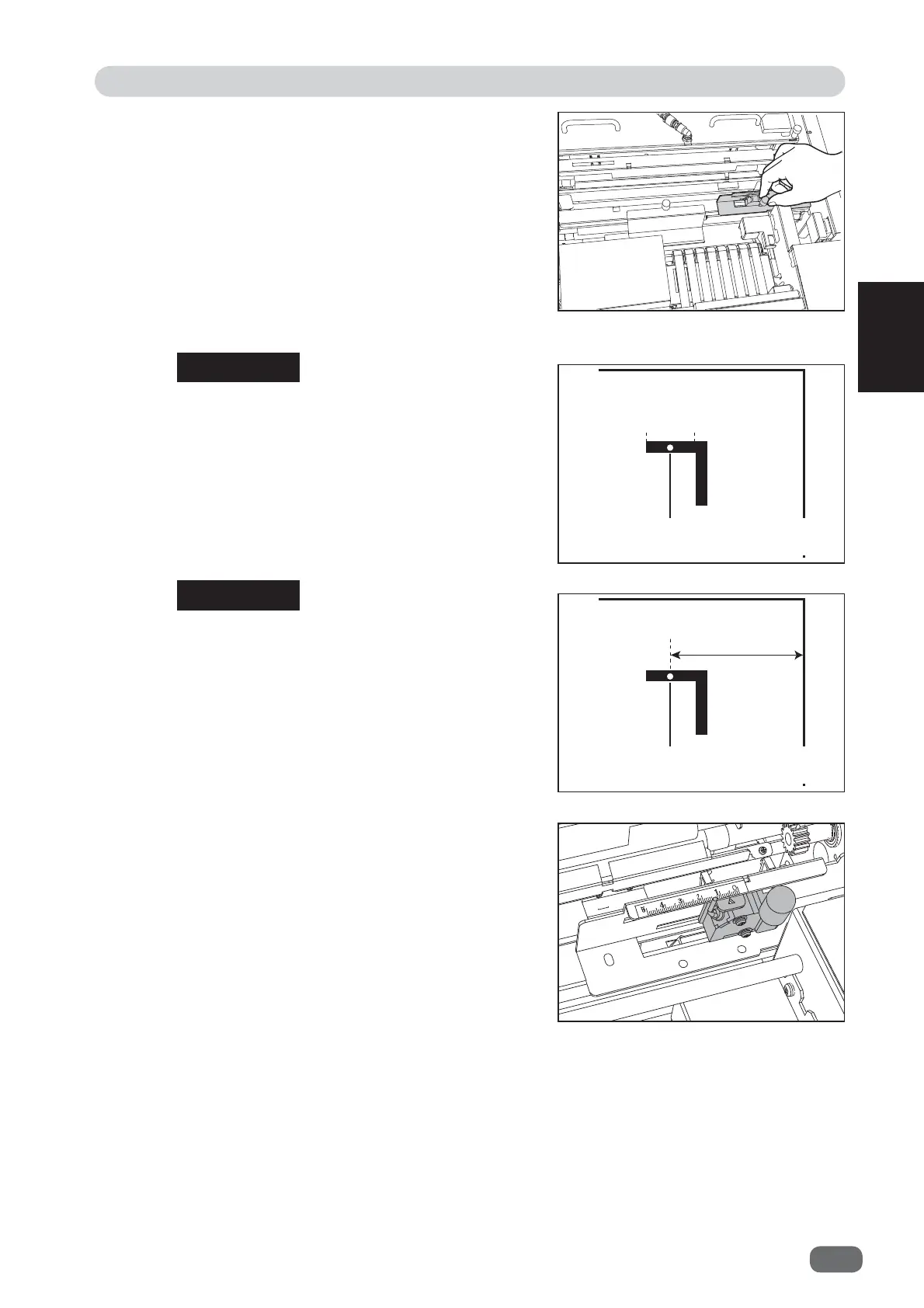

Hold the

knob

of the

laser sensor

. Slide the

knob so that the red spot of the laser meets the

center of the

REG mark

Adjust the laser sensor so that it strikes the

central point of the horizontal line of the REG

mark (The vertical line is not included).

1. Measure the distance between the left edge

of the document and the point that the laser

sensor strikes the REG mark.

2. Adjust the gauge of the

laser sensor

position so that it reads the same value as

step 1 above.

REFERENCE

Laser sensor strikes

here.

REG

mark

Laser sensor strikes

here.
