80
Process
3URFHVV&UHDVH
6(7
&UHDVH
)HHG
&UHDVH'HSWK
0,'
0,1
6WDQGDUG
0$;
3URFHVV&87
6(7
&87
)HHG
&XW7ULP
0RGH
7UDLO&XW0RGH
)XOO%OHHG0RGH
6WDQGDUG
$XWR
Lead margin, trail margin and gutters (48.9 mm
or shorter) are chopped up and dropped into the
waste box. Select
Full Bleed Mode
,
No Bleed
Mode
, or
Process All
with the
arrow (left/right)
icons.
If the document has no lead margin or trail
margin, select
No Bleed Mode
.
3URFHVV&UHDVH
6(7
&UHDVH
)HHG
&UHDVH'HSWK
0,'
0,1
6WDQGDUG
0$;

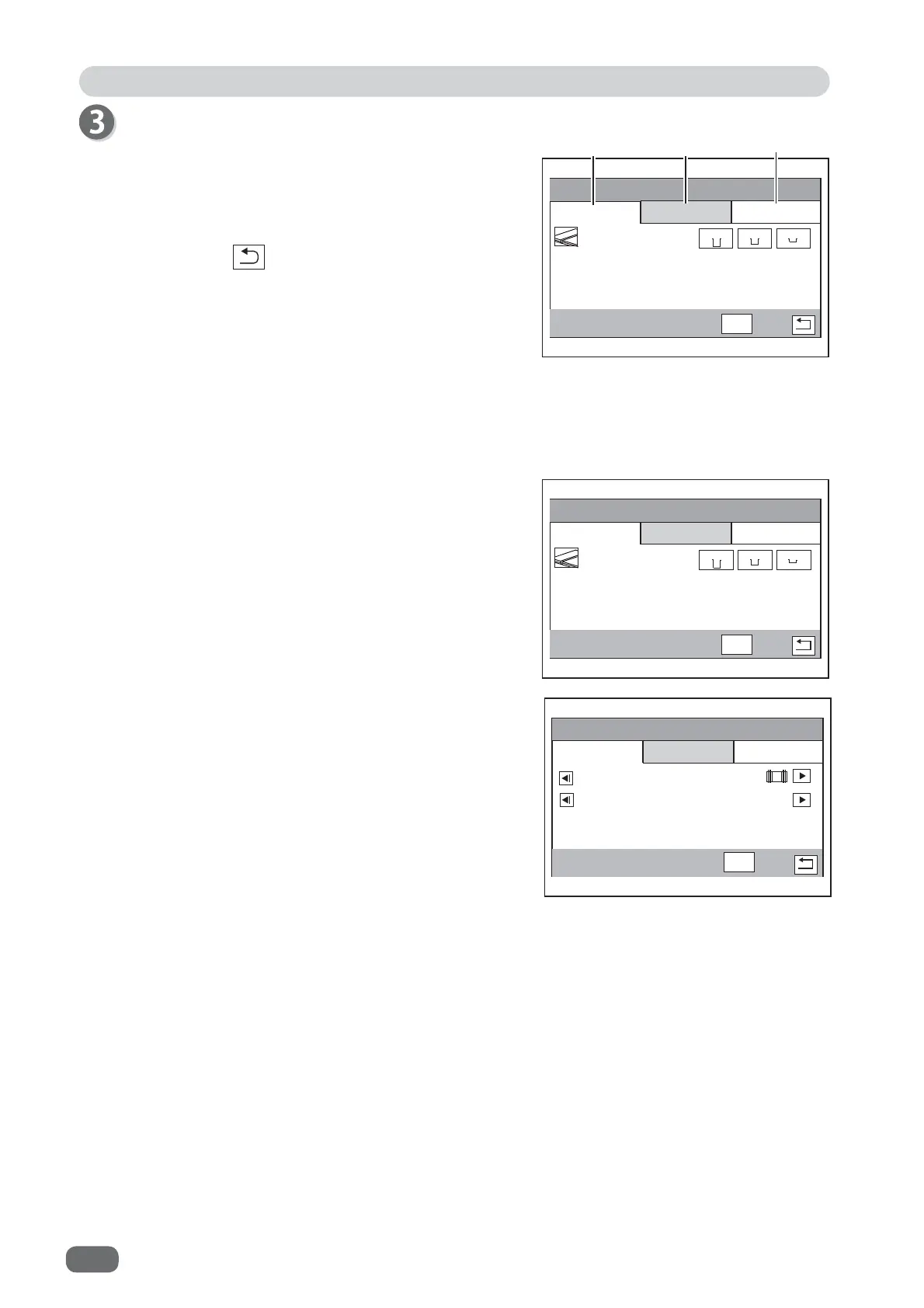

Touch the
module name in slot 1
, the
module name
in slot 2
, or
Feed
to switch displays.
The
module name in slot1/2
of the JOB selected are
displayed.
If
no data
is programmed in the JOB selected, you
cannot enter
Process
.
Touch each button to make settings.
Touching the
return
icon returns to the
standby
screen without saving the settings.
Touching
SET
saves the settings and the
standby
screen reappears.
When the
standard module
is installed in
slot 1
The setting screen for
slot 2
are displayed because there are no settings for the
standard
module
.
(The gure on the right shows when the
creaser module
is installed in
slot 2
.)
When the
creaser module
is installed in
slot 2
Select a crease depth from
MAX
,
MID
, or
MIN
.
When the
cutter module
is installed in
slot 2
.
1.
Cut Trim Mode
Full Bleed Mode
: Lead margin and trail margin are chopped up and dropped into the
waste box.
No Bleed Mode
: This chops up the gutters of shorter than 49 mm and drops into the
waste box.
Process All
: All of the cut pieces are ejected to the
exit tray
.
Gutters shorter than 42 mm are chopped up and dropped into the waste
box.
Trail margin shorter than 67 mm are chopped up and dropped into the
waste box.
Feed
Module
in Slot2
Module
in Slot1
