DURAG D-LX 200 User Manual

8 Adjusting the flame monitor
90 D−LX 200, D−LX 720

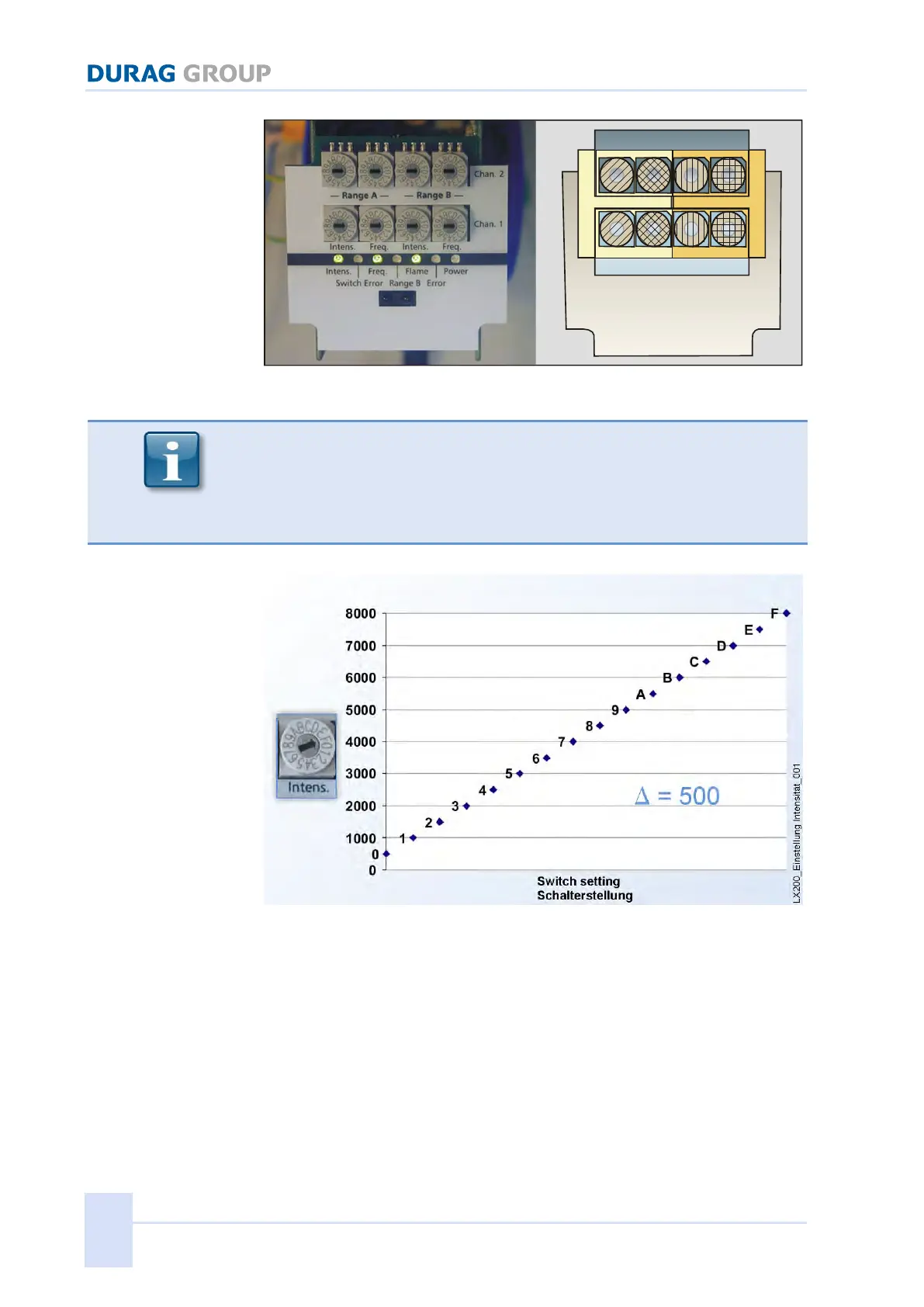

Figure 8.2: Front panel D−LX 200
The rotary switches that are located above each other (Figure 8.2: Rotary
switches with identical hatching) must be re-set to the same setting within
8 seconds.
If there are differences between the channels/rotary switches, the red "Switch
Error" illuminates and after 8 s an error shutdown of the Compact Flame
Monitor is triggered.
Figure 8.3: Intensity setting
Only flames where the intensity reaches a measured value that is above the
intensity threshold lead to a flame ON signal. The distribution for the intensity
of the Y-axis (see Figure 8.3) is chosen randomly and is dimensionless.
Range A
Chan. 1
Chan. 2
Range B
No. 3
dlx200_frontplatte_000
