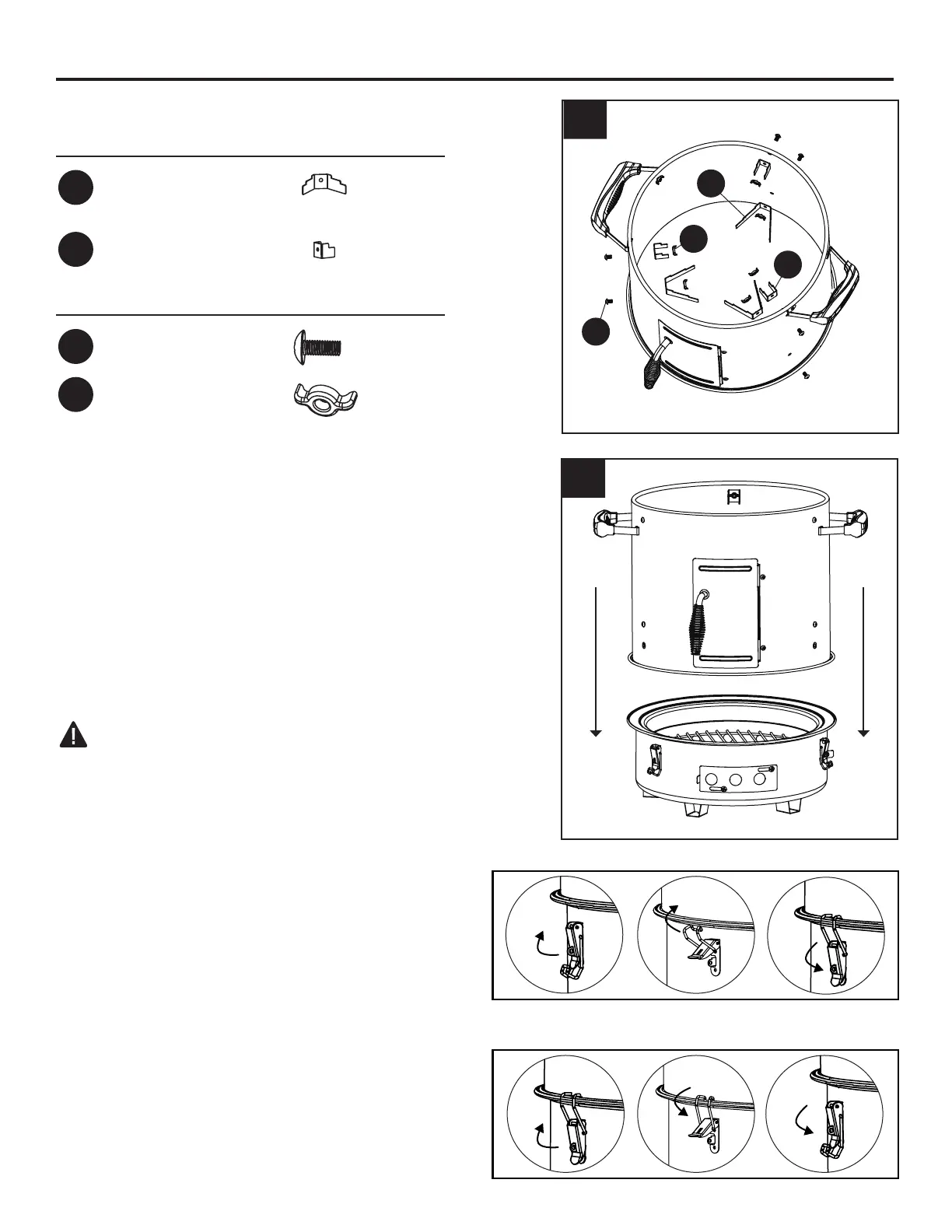

ASSEMBLY INSTRUCTIONS
Step 5
Step 6
6
10
E
6
5
Hardware Used
E
M5 x 12 mm
Screw
x 6
Parts Used
6
Lower Support
Brackets
x 3
10
Upper Support
Brackets
x 3
D
M5 Wingnut
x 6
D
Fig. 1a
Fig. 1b
Place the smoker body onto the base.
To lock the smoker base:
Lift the lock lever upwards until the wire engages
on the lip of the smoker body. See Fig 1a.
To unlock the smoker base:
Lift lock upwards until the wire disengages from
the lip of the smoker body. See Fig 1b.
CAUTION:
• All transporting and storage should be done
when smoker is cool and with the fuel supply
removed.
• Always lock the smoker base before transporting.
