Dyna-Glo DGVS390BC - Step 7: Assemble Lid Components; Step 8: Place Water Bowl and Grates

12

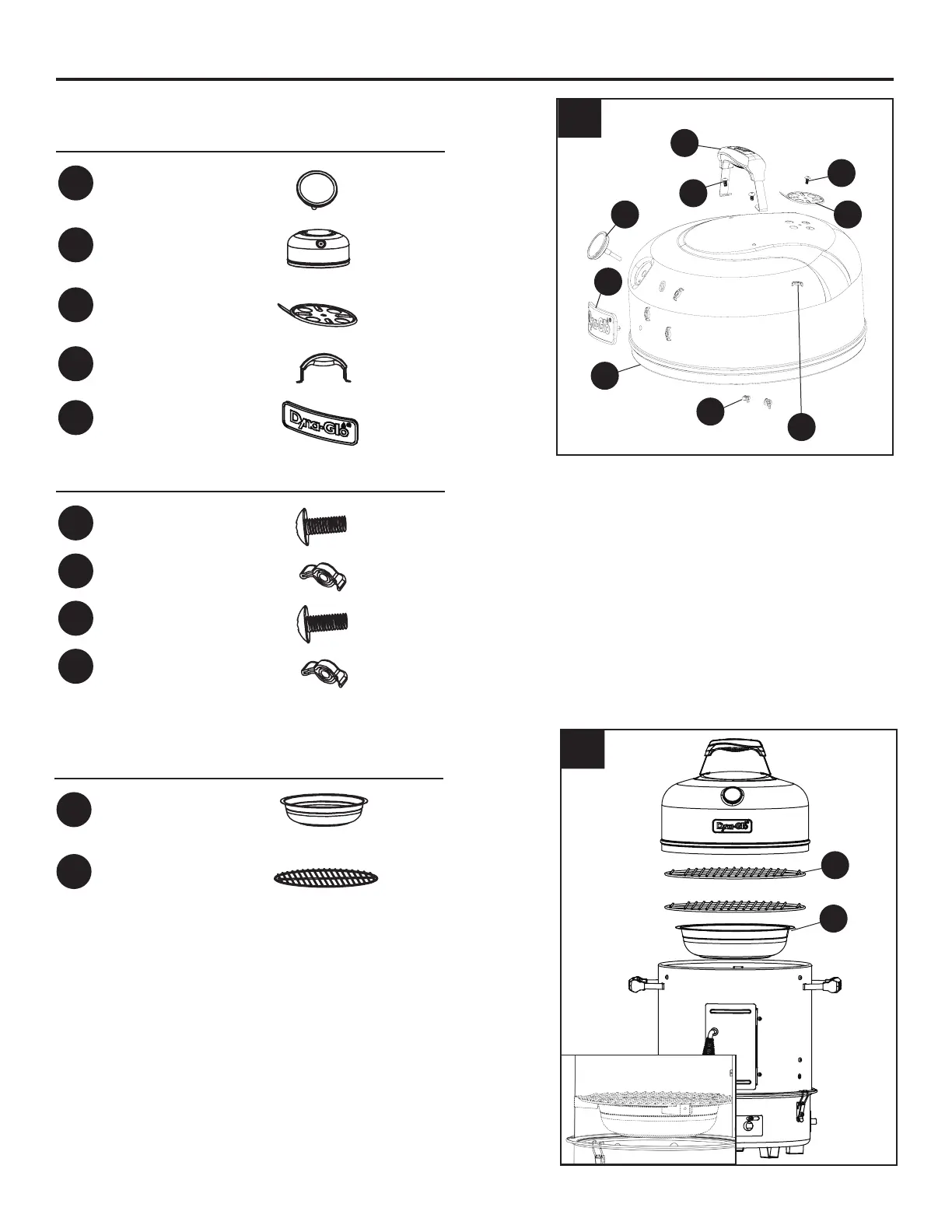

Step 7
7
13
14
ASSEMBLY INSTRUCTIONS
Hardware Used
A
M4 x 15 mm
Screw
x 1
Parts Used
13
Temp Gauge
w/ Nut
x 1
14
Lid Assembly
x 1
15
Lid Damper Plate
x 1
B
M4 Wingnut
x 1
E
M5 x 12 mm
Screw
x 2
D
M5 Wingnut
x 4
9
Lid Handle
x 1
B
E
9
15
D
A
Step 8
8
12
11
Parts Used
11
Water Bowl
x 1
12
Cooking Grate
x 2
16
Dyna-Glo Badge
x 1
16
