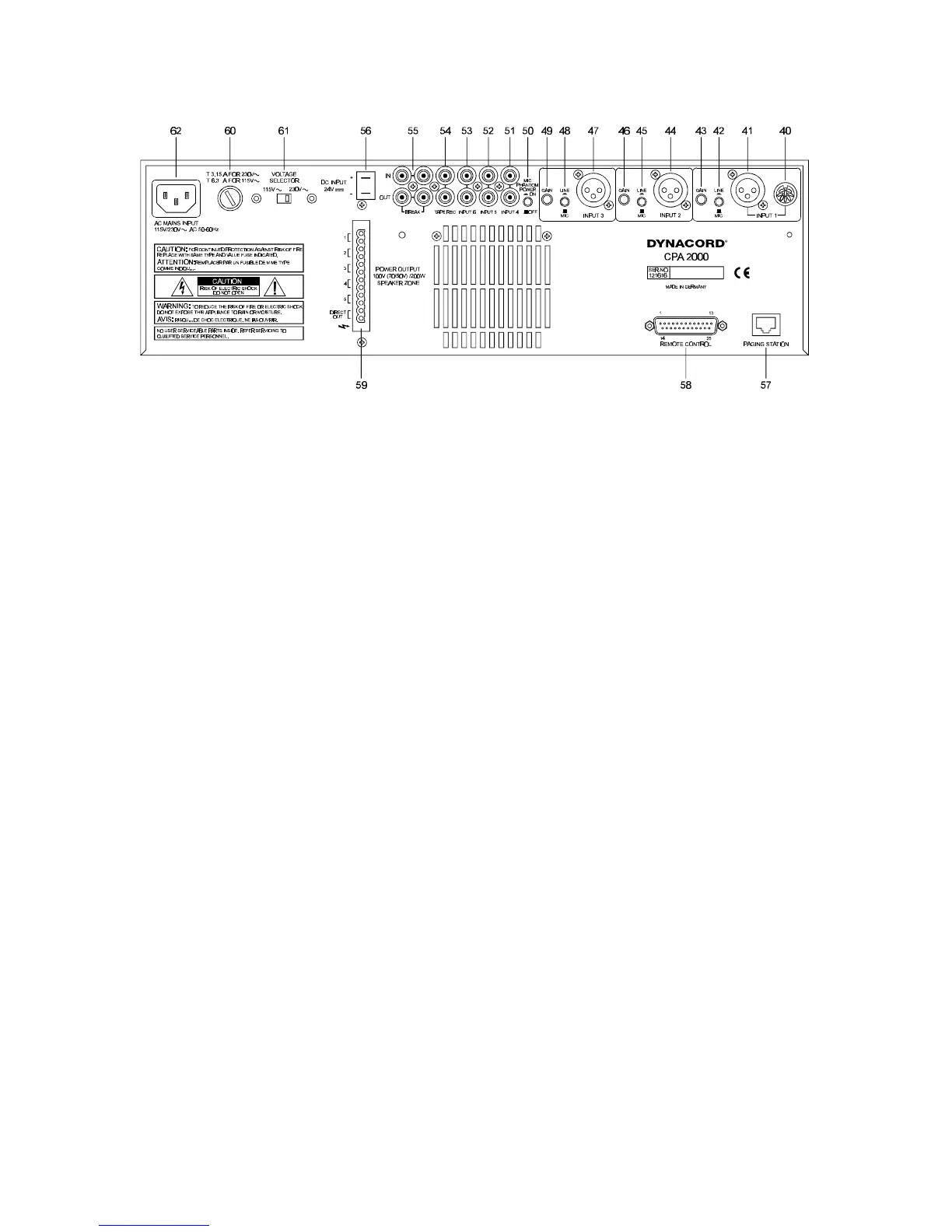

CONTROLS AND INDICATORS ON THE REAR PANEL
40 INPUT 1 7-pole DIN-connector for the connection of a microphone with
PTT-button (e. g. the MT 101) to input 1
41 INPUT 1 XLR-type connector for the connection of a microphone or
other LF sound sources to input 1
42 MIC/LINE sensitivity selector switch Mic / Line level for input 1
43 GAIN gain control to match the incoming signal of input 1
44 INPUT 2 XLR-type connector for the connection of a microphone or
other LF sound sources to input 2
45 MIC/LINE sensitivity selector switch Mic / Line level for input 2
46 GAIN gain control to match the incoming signal of input 2
47 INPUT 3 XLR-type connector for the connection of a microphone or
other LF sound sources to input 3
48 MIC/LINE sensitivity selector switch Mic / Line level for input 3
49 GAIN gain control to match the incoming signal of input 3
50 MIC PHANT.POWER phantom power selector switch for the inputs 1 - 3
51 INPUT 4 line-level input 4
52 INPUT 5 line-level input 5
53 INPUT 6 line-level input 6
54 TAPE REC output for the connection of tape decks
55 BREAK IN/OUT IN/OUT connectors used as an insert for external equipment
(Caution: if not in use these connectors have to be bridged,
using a special bridging adapter)
56 DC INPUT 24 volts connector (battery, emergency power supply)
57 PAGING STATION RJ 45 socket for the connection of MT 2005 microphone terminals
58 REMOTE CONTROL remote control connector
59 POWER OUTPUT connector strip for the connection of 100 V loudspeaker
systems (speaker zones 1 - 5) and direct speaker output
60 T … A mains fuse
61 VOLTAGE SELECTOR mains supply selector switch
62 AC MAINS INPUT mains connector, 230 / 115 volts
