6.4 5 Way + FR

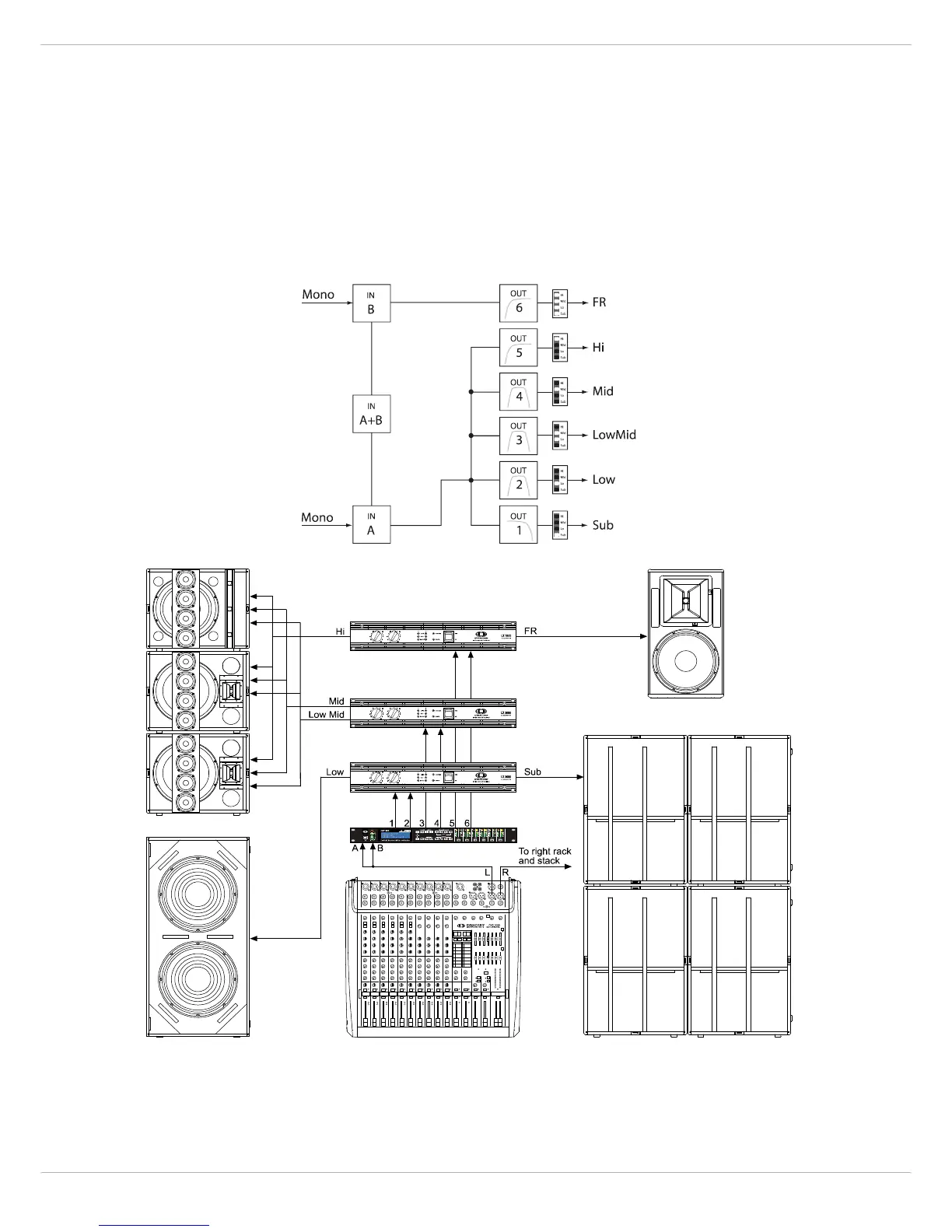

The 5-Way configuration is a monaural 5-way frequency x-over. Crossover channels are fed from IN A, full range channels
are fed from IN B. OUT 1 is a mono Sub frequency channel, OUT 2 the mono Very Low-frequency, OUT 3 is the mono
Low-frequency channel, OUT 4 is the mono Mid-Frequency channel, OUT 5 is the mono High-frequency channel and OUT
6 is the Full-range channel.
HINT: On Input channels, all Parametric EQ and Graphic EQ parameters are not linked. For Output channels, link-
ing applies to Crossover Highpass and Lowpass filters (see page 48 for details).
