2.4 Quick Start
CONNECT DSP 600
Connect the signal inputs and outputs of the DSP 600 (console - DSP 600 - amplifier). You must make sure that each
output is connected to the correct amplifier and loudspeaker(s). The DSP 600 must be connected to A.C. power only
by means of the provided IEC A.C. cable or by a power cable provided by the dealer / installer to match the configuration
of your country or region. After power-up the number and name of the last loaded preset and the configuration mode is
indicated.
R
ECALL PRESET
Press the Recall button and select the factory preset matching to your speaker configuration. Press the Recall button
again to activate the preset. If the configuration of the DSP 600 changes the Recall button has to be pressed a third time.
The configuration LEDs indicate the function of each output channel. Full range is indicated by all lit LEDs.
CAUTION: The parameter settings of the DSP 600 factory presets are highly optimized and should not be changed.
Especially editing X-Over, PEQ or Limiter settings can result in damaged speakers.
The following steps are shown for one output channel only.
C
ONFIGURE LEVEL
Press the Level button to open the Level/Limiter dialog.
The Level parameter allows adjustment of the level ratio between sub and top speakers. E.g. if the parameters in a pre-
set are optimized for 2 subs you can increase the sub level by 6 dB if you are using 1 sub in your application. As an
alternative you can decrease the top level by 6 dB.
S
ELECT AMPLIFIER TYPE
Select the power amp type connected to the DSP 600 using the parameter Amp. Please note there are multiple entries
for an amplifier type if the amplifier allows different sensitivity settings.

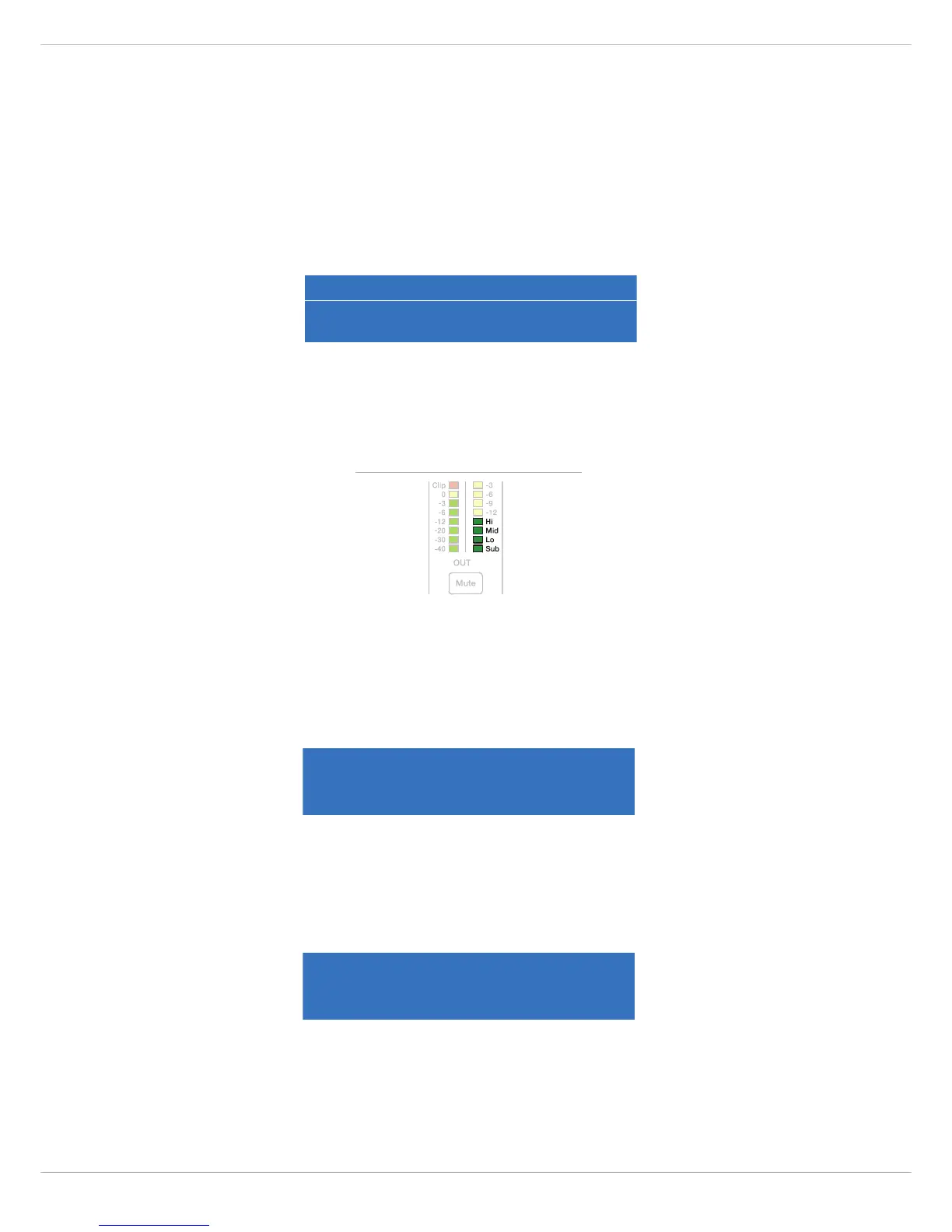

Illustration 2-1: Output assignment LEDs
To Next Page
