6.7 4 Way Stereo-MonoSub/LF

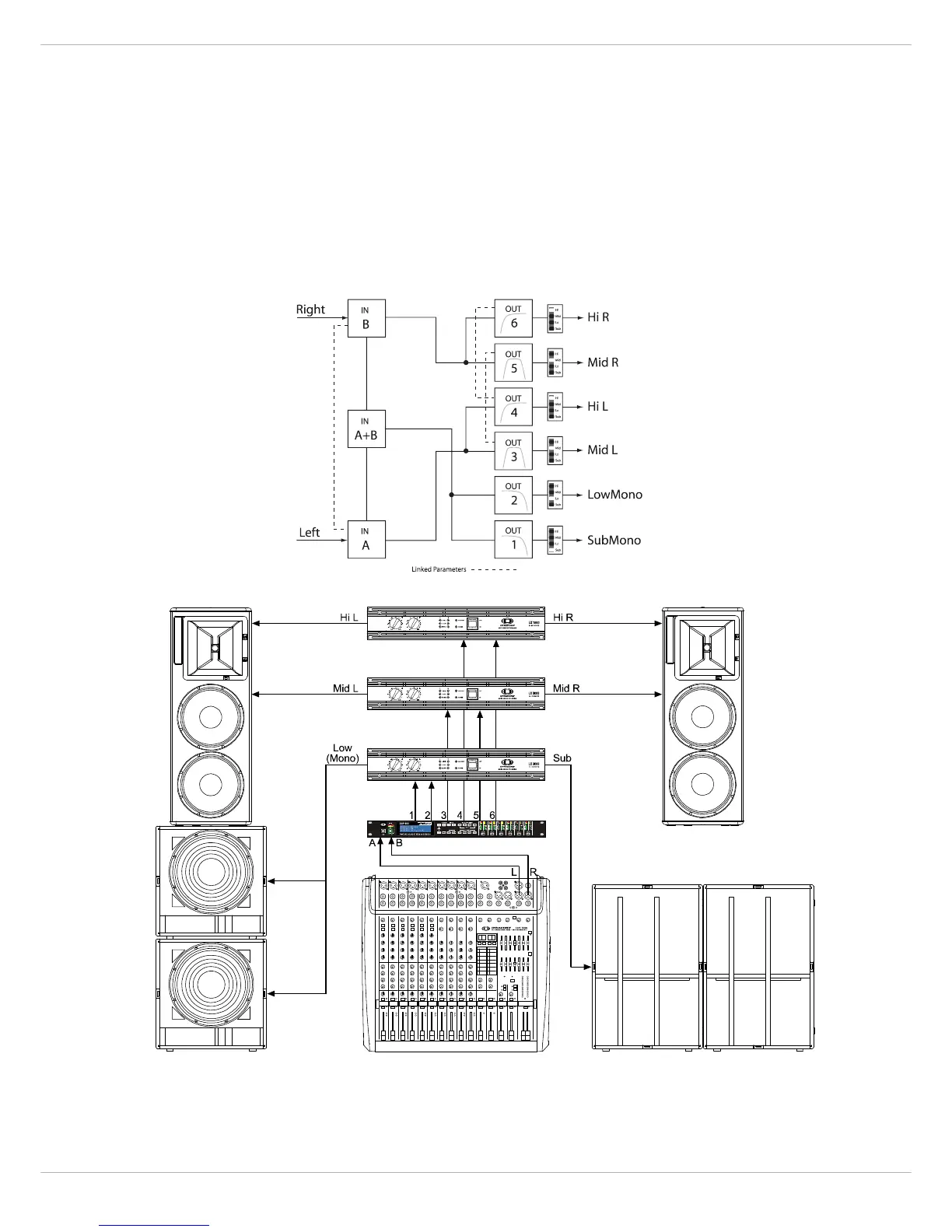

The 4 Way Stereo – MonoSub / LF configuration is a stereo 4 way frequency x-over. Mono Sub-frequency and Low-fre-
quency channels are fed from IN A + IN B, Mid-frequency and High-Frequency left are fed from IN A, Mid-frequency and
High-Frequency right are fed from IN B. OUT 1 is a mono Sub-frequency frequency channel, OUT 2 the mono Low-fre-
quency channel, OUT 3 is the left Mid-frequency channel, OUT 4 is the left High-frequency channel , OUT 5 is the right
Mid-frequency channel and OUT 6 is the right High-frequency channel.
HINT: On Input channels, all Parametric EQ and Graphic EQ parameters are linked. For Output channels, linking
applies to Crossovers, EQ, Delay Level and Limiter.
