9CA 602 O602EN1
INSTRUMENTS AND CONTROLS
10 11 12 13 14 15 16 17 18 19 20
9 8 7 6 5 4 3 2 1 25 24 23 22 21
31 32 33 34
30 29 28 27 26
35 36 37 38 39
40

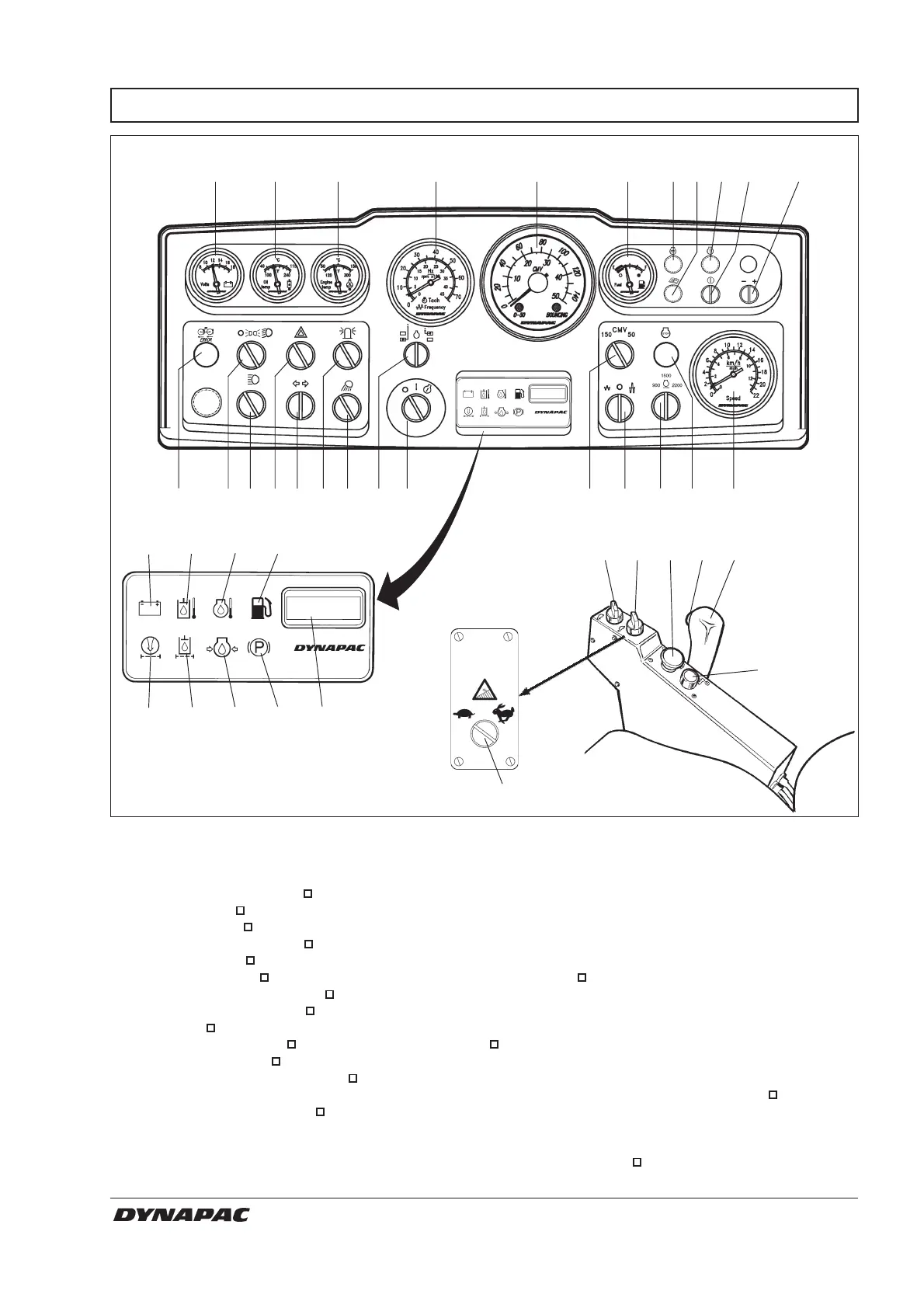

Fig. 7 Instruments and control panel
1. Starter switch
2. Revs/Frequency selector
3. Working lights
4. Hazard beacon
5. Direction indicator switch
6. Hazard flashers
7. Main beam switch
8. Parking/dipped beam switch
9. Anti-spin, Fault Indication
10. Voltmeter
11. Hydraulic temperature
12. Engine temperature
13. Engine revs/Vibration frequency
14. Compaction meter/
Speedometer (see item 21)
15. Fuel gauge
16. Preheating, diesel engine
17. Service indicator lamp
18. Fault alarm lamp
19. Diagnostics ”ON”
20. Scroll through error codes
21. Speedometer (If compaction
meter is included in item14)
22. Fault alarm lamp
23. Rev selector
24. Amplitude selector Low/0/High
25. CMV selector
26. Hourmeter
27. Brake warning lamp
28. Warning lamp, engine oil pressure
29. Warning lamp, hydraulic filter
30. Warning lamp, air filter
31. Warning lamp, charging
32. Warning lamp, hydraulic
temperature
33. Warning lamp, engine
temperature
34. Warning lamp, fuel level
35. Speed selector, drum
36. Speed selector, rear axle
37. Reserve/Parking brake knob
38. Vibration ON/OFF
39. Forward/Reverse lever
40. Horn
41. Anti-spin function
= Optional
41
